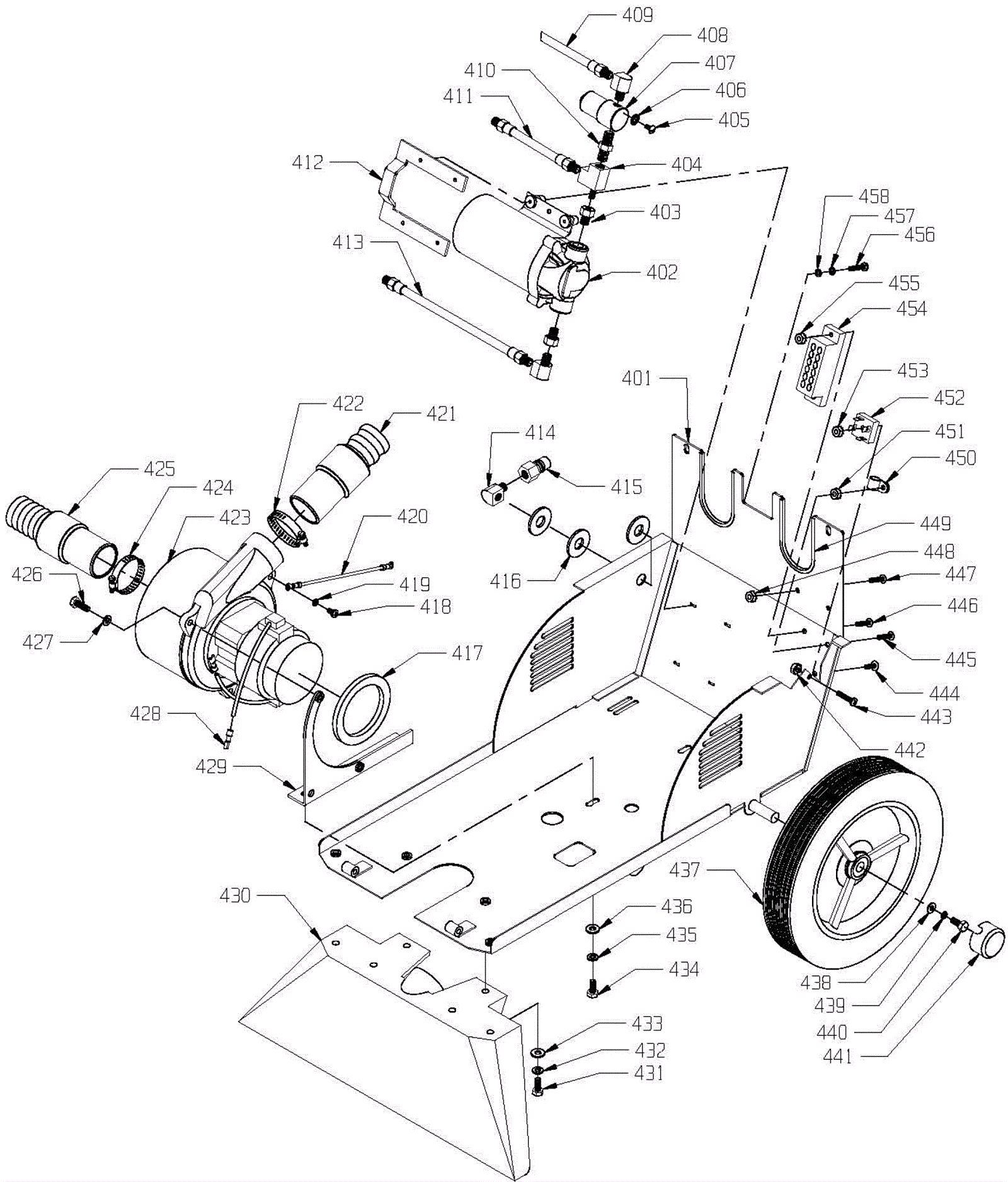

Stallion 818SC Frame Assembly

#PartDescriptionPriceReqNotesAvailability
401 164-4591 Base assembly $444.24 1 usually ships 1-5 days
402a 164-9489 120V 80 PSI pump $545.60 1 ships same day
402b 164-4572 240v 100 PSI pump $555.45 1 usually ships 1-5 days
403 164-4546 Brass bushing $5.89 2 usually ships 8-23 days
404 164-4568 1/4 inch tee $15.90 1 usually ships 1-5 days
405 999-1366 Screw 8-32 x 3/8 round head phillips stainless steel $1.32 1 ships same day
406 999-0092 Washer #8 internal star lock zinc plated $0.99 1 ships same day
407a 164-4564 120V solenoid valve $177.08 1 usually ships 8-23 days
407b 164-4566 240V solenoid valve $383.96 1 usually ships 1-5 days
408 164-0565 90 degree brass elbow $8.20 3 usually ships 8-23 days
409 164-4563 21 inch solution hose $59.47 1 usually ships 8-23 days
410 164-4567 1/4 inch brass hex nipple $7.37 1 ships same day
411 164-4576 Hose (pump to accessory) $50.93 1 usually ships 8-23 days
412 164-4577 Tapping plate (pump motor) $27.89 1 usually ships 1-5 days
413 164-4578 Hose assembly (tank to pump) $58.36 1 usually ships 8-23 days
414 164-0565 90 degree brass elbow $8.20 1 usually ships 8-23 days
415 164-3334 Male quick connect $21.01 1 usually ships 8-23 days
416 164-4554 Washer stainless steel $5.89 3 usually ships 1-5 days
417 164-4585 Neoprene motor seal $6.38 1 usually ships 8-23 days
418 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting $0.99 1 ships same day
419 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
420 164-4035 Ground to motor wire, green $1.85 2 usually ships 1-5 days
421 164-4584 Vacuum motor exhaust hose $31.13 1 usually ships 8-23 days
422 997-2003 Hose clamp $2.66 1 ships same day
423a 164-8011 120V 3 stage vacuum motor $339.66 1 ships same day
423b 164-4583 240V vacuum motor $582.95 1 usually ships 1-5 days
424 997-2000 Hose clamp $2.37 1 ships same day
425 164-4518 Vacuum hose $46.21 1 usually ships 8-23 days
426 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 ships same day
427 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
428 164-4647 Push on terminal $2.71 2 usually ships 1-5 days
429 164-4586 Vacuum motor bracket $34.82 1 usually ships 8-23 days
430 164-8581 18 inch vacuum nozzle $320.66 1 usually ships 8-23 days
431 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 8 ships same day
432 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
433 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
434 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
436 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
437 164-4592 10 inch plastic wheel (white) $58.70 2 usually ships 8-23 days
438 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
439 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
440 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
441 N/A Not available Call for price 2 (hub cap) usually ships 3-26 days
442 999-0004 Nut 10-24 k-lock zinc plated $0.99 6 ships same day
443 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 1 ships same day
444 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 1 ships same day
445 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated $0.99 1 ships same day
446 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated $0.99 2 ships same day
447 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 1 ships same day
448 999-0004 Nut 10-24 k-lock zinc plated $0.99 3 ships same day
449 164-4597 Vinyl trim (sold by the foot) $4.49 2 usually ships 8-23 days
450 164-0232 P clamp $2.57 1 usually ships 8-23 days
451 999-0004 Nut 10-24 k-lock zinc plated $0.99 1 ships same day
452a 991-1813 120V rectifier $6.88 1 usually ships 5-16 days
452b 163-0063 240V rectifier $10.65 1 ships same day
453 999-0004 Nut 10-24 k-lock zinc plated $0.99 1 ships same day
454 164-4594 Terminal block $14.80 1 usually ships 8-23 days
455 999-0308 Nut 8-32 plain $0.99 2 ships same day
456 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 4 ships same day
457 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
458 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
