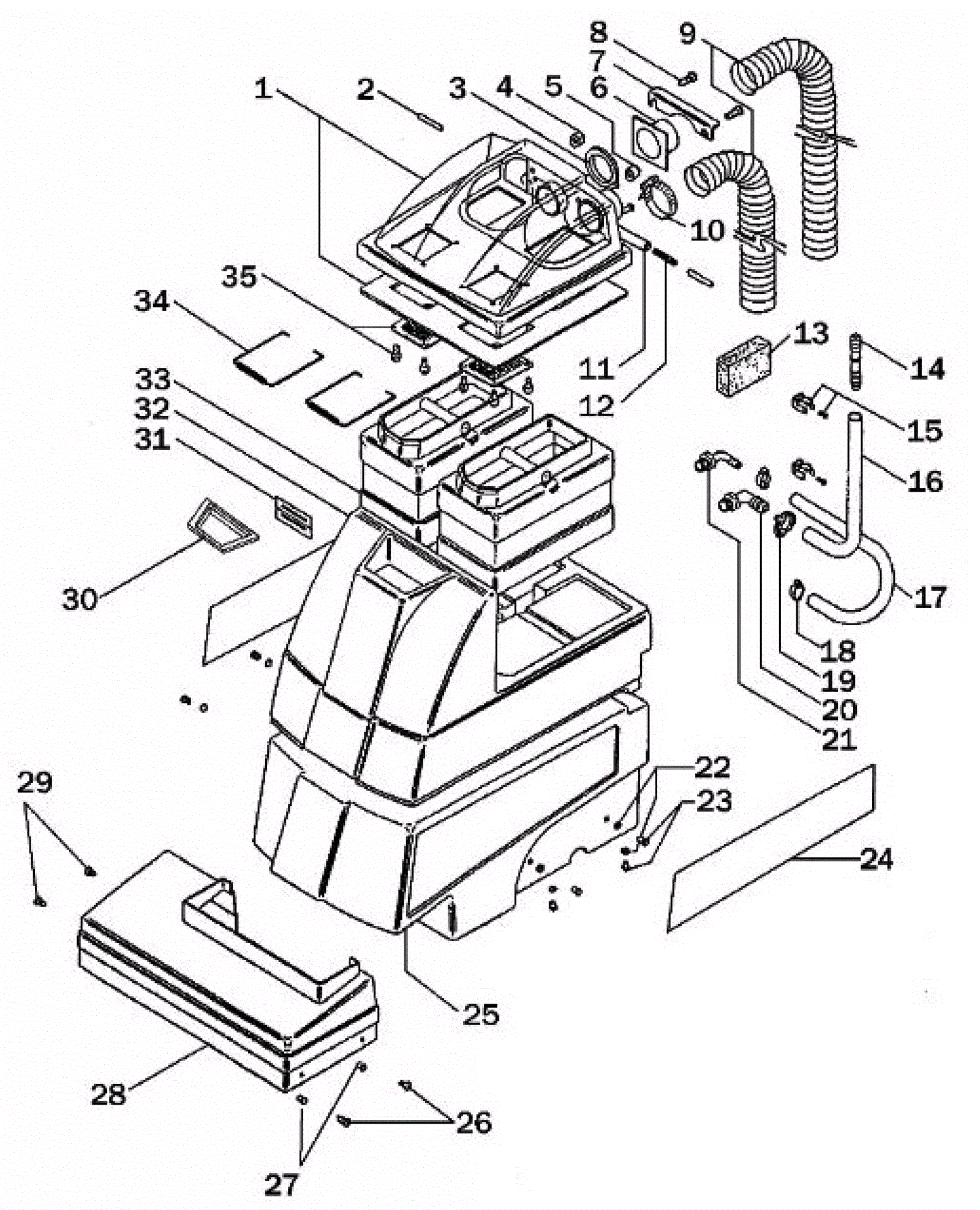

Stallion 12 SC Plastic Body Assembly

#PartDescriptionPriceReqNotesAvailability
1a 164-8013 Tank lid assembly with shaft $1,269.35 1 (Includes shaft) usually ships 1-5 days
1b 164-8014 Tank lid gasket $119.65 1 usually ships 1-5 days
2 164-8525 Hose adaptor $124.50 2 usually ships 6-20 days
3 164-8523 Vacuum intake seal $25.00 1 usually ships 6-20 days
4 999-0971 Nut 1/4-20 jam stainless steel $0.90 1 ships same day
5 164-8524 Spacer (OBSOLETE) Call for price 1 (OBSOLETE) usually ships 6-20 days
6 164-8525 Hose adaptor $124.50 1 usually ships 6-20 days
7 164-8526 Retainer clip adapter $76.15 1 usually ships 6-20 days
8 999-1540 Screw 1/4-20 x 3/4 truss head phillips $0.90 2 usually ships 1-5 days
9 164-8527 2 inch vacuum hose $34.15 6 ft (Sold by the foot) usually ships 6-20 days
10 164-8528 Screw clamp $5.45 1 usually ships 6-20 days
11 164-8529 Dome hinge $40.55 1 usually ships 6-20 days
12 164-8530 Dome pivot spring $16.30 1 usually ships 6-20 days
13 164-8531 Solution tank plug $16.75 1 usually ships 6-20 days
14 164-8532 Drain nozzle coupling $8.25 1 usually ships 6-20 days
15 164-8533 Drain hose clip assembly $66.10 1 usually ships 6-20 days
16 164-8306 Drain hose $11.75 1 usually ships 6-20 days
17 164-8534 Solution hose (OBSOLETE) $6.18 1 (OBSOLETE) usually ships 6-20 days
18 164-8535 5/8 inch hose clamp $5.85 2 usually ships 6-20 days
19 164-8536 Nylon hose clamp $5.85 1 usually ships 6-20 days
20 164-8537 90 degree elbow $9.55 1 usually ships 6-20 days
21 164-8538 90 degree elbow (OBSOLETE) Call for price 1 (OBSOLETE) usually ships 6-20 days
22 164-8539 1/8 inch backup washer $1.86 8 usually ships 6-20 days
23 164-8462 1/8 inch rivet $3.84 8 usually ships 6-20 days
24 164-5503 Manta-long side decal (OBSOLETE) Call for price 1 usually ships 1-5 days
25 164-8540 Motor housing Call for price 1 usually ships 6-20 days
26 164-8541 Screw #8 x 1 pan head sheet metal Call for price 2 usually ships 6-20 days
27 164-8542 Spacer (OBSOLETE) $8.85 2 (OBSOLETE) usually ships 6-20 days
28 164-8543 Brush chamber cover $227.60 1 usually ships 6-20 days
29 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.90 2 ships same day
30 164-7460 Solution tank filter $114.90 1 usually ships 1-5 days
31 164-8544 Solution info decal Call for price 1 usually ships 6-20 days
32 164-8545 Solution tank $559.30 1 usually ships 6-20 days
33 164-8546 Recovery pail $203.80 2 usually ships 6-20 days
34 164-8547 Recovery pail handle (OBSOLETE) Call for price 2 (OBSOLETE) usually ships 6-20 days
35 164-8548 Lid screen assembly $90.30 2 usually ships 6-20 days
