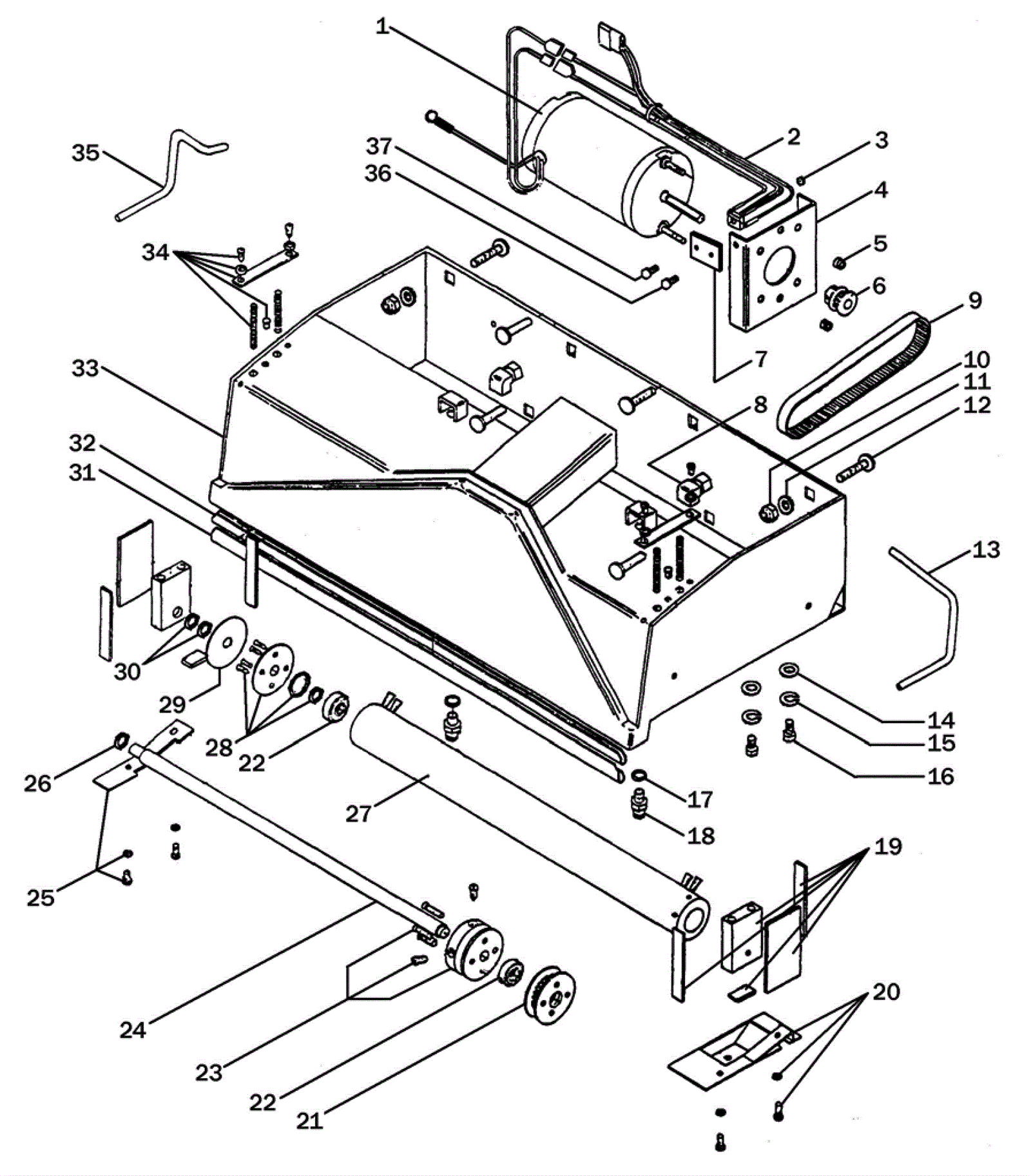

Brush Assembly

#PartDescription ReqNotesAvailability
1 164-8498 Brush motor assembly 1
2 164-8499 Rectifier 1
3 999-6681 Nut #6-32 hex nylon 1
4 164-8500 Brush motor bracket 1
5 999-1269 Nut 10-32 nylon insert jam stainless steel 2
6 164-8501 Motor pulley 1
7 164-8502 Rectifier mounting board (OBSOLETE) 1 (Rectifier mounting board - OBSOLETE)
8 164-8503 90 degree elbow fitting 2
9 164-7999 Belt 1
10 999-0304 Nut 1/4-20 nylon lock jam stainless steel 6
11 999-0016 Washer 1/4 flat plain finish 6
12 999-6682 Bolt 1/4-20 x 1 1/2 carriage plain finish 6
13 164-8504 Solenoid to tip copper tube 1
14 999-0016 Washer 1/4 flat plain finish 2
15 999-0632 Washer 1/4 split lock stainless steel 2
16 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 2
17 164-8505 Washer 7/16 x 1 1/16 nylon 2
18a 164-8307 50psi male spray tip 2 (50 PSI)
18b 164-8309 100psi male spray tip 2 (1000 PSI)
19 164-8506 Sliding block assembly 2
20 164-8507 Pulley end cover plate assembly 1
21 164-8508 Brush pulley 1
22 164-8509 Brush bearing 2
23 164-8510 Rotary brush slinger assembly 1
24 164-8511 18 inch brush shaft 1
25 164-8512 Open end cover plate assembly 1
26 164-8513 Washer 1
27 164-8310 12 inch brush - CYLINDRICAL 1
28 164-8514 String guard assembly 1
29 164-8515 Washer 1
30 164-8516 Brush chamber brush spacer 2
31 164-8517 Brush chamber front lip guide 1
32 164-8518 Brush chamber rear lip guide 1
33 164-8519 Brush chamber assembly 1 (Includes front and back guides)
34 164-8520 Spring cover plate assembly 2
35 164-8521 Solenoid to tip copper tube 1
36 999-6683 Screw #6-32 x 1/2 hex slotted head stainless steel 1
37 164-8522 Screw #6-32 x 5/8 pan head nylon 1
