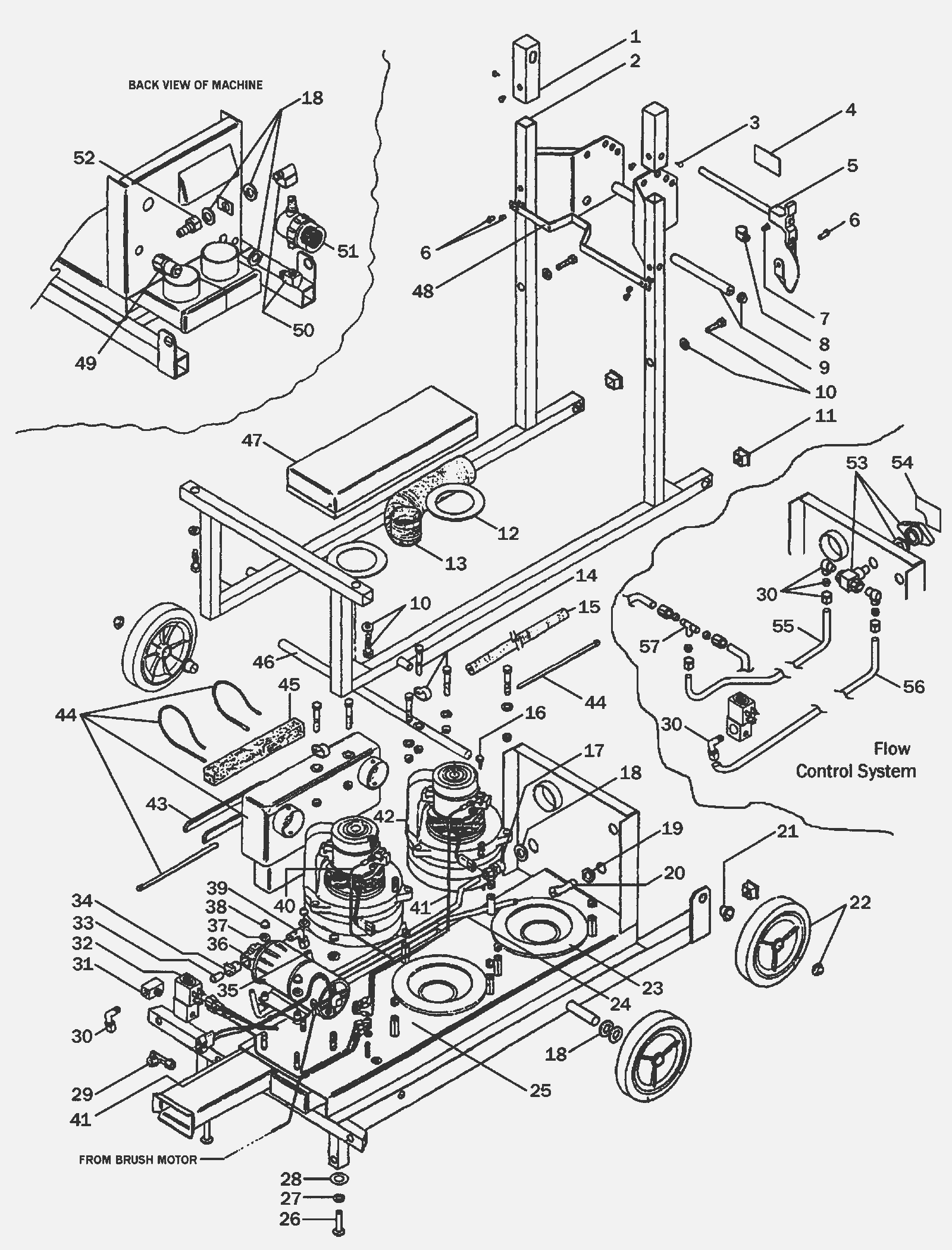

Frame Assembly

#PartDescription ReqNotesAvailability
1 164-8457 Frame extension vac lid pivot 2
2 164-8458 Upper frame (OBSOLETE) 1 (Upper frame - OBSOLETE)
3 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc 4
4 164-8460 Drain hose decal 1
5 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc 1
6 164-8462 1/8 inch rivet 5
7 999-0569 Screw 10 x 1/2 pan head phillips sheet metal 1
8 164-8463 7/16 inch cable clamp 1
9 164-8464 Handle shaft assembly 1
10 164-8291 Solution tank mounting kit 1
11 164-8465 7/8 inch square end cap 4
12 164-8466 Cooling air duct gasket 2
13 164-8467 Exhaust hose 2 inch x 18 inch 1
14 164-8468 Vacuum motor mounting kit (OBSOLETE) 1 (Vacuum motor mounting kit - OBSOLETE)
15 164-8469 26 inch corrugated loom 1
16 999-6679 Screw #10-32 x 3/8 hex head slotted grounding 2
18 164-8471 Nylon spacer 1/2 x 1 x 3/16 inch (OBSOLETE) 8 (1/2 x 1 x 3/16 inch nylon spacer - OBSOLETE)
19 164-8472 Nut 1/4 hex nickel plated thread 1
20 164-8473 90 degree elbow fitting 1
21 164-8474 1/2 inch nyliner bushing (OBSOLETE) 2 (1/2 inch nyliner bushing - OBSOLETE)
22 164-8118 Wheel and cap assembly (pkg of 2) 2
23 164-8135 Vacuum motor gasket 2
24 164-8475 Copper tubing 1
25 164-8476 Lower frame assembly 1
26 999-6680 Screw 1/4-20 x 3 pan head phillips stainless steel 2
27 999-0632 Washer 1/4 split lock stainless steel 2
28 999-0016 Washer 1/4 flat plain finish 2
29 164-8477 Male branch tee 1
30 164-8478 90 degree elbow fitting (OBSOLETE) 3 (90 degree elbow fitting, 1/8 inch male NPT x 1/4 inch compression tube - OBSOLETE)
31 164-8479 1/8 inch female nickel plated thread tee 1
32 164-8289 Solenoid 1
33 164-8480 1/8 inch nickel plated thread short nipple 1 (1/8 inch nickel plated thread short nipple - OBSOLETE)
34 164-8481 Bushing 3/8 x 1/8 inch 1 (3/8 x 1/8 inch bushing - OBSOLETE)
35 164-8482 Pump to tank tube 1
36 164-8010 115V pump 1
37 999-0016 Washer 1/4 flat plain finish 4
38 999-0304 Nut 1/4-20 nylon lock jam stainless steel 4
39 164-8483 90 degree elbow fitting (OBSOLETE) 1 (90 degree elbow fitting, 3/8 inch male NPT x 1/4 inch compression tube - OBSOLETE)
40 164-8484 Wire assembly 1
41 164-8485 Ground wire 2
42 164-8133 115V 2 stage vacuum motor 2
43 164-8486 Muffler clips 2
44 164-8134 Muffler assembly 1
45 164-8487 Muffler support foam 1
46 164-8488 Wheel axle 1
47 164-8489 Cooling duct 1
48 164-8490 2 inch hose guide 1
49 164-8491 Quick disconnect 1
50 164-8492 90 degree elbow fitting 2
51 164-7459 In line filter 1
52 164-8493 Connector (OBSOLETE) 1 (3/8 inch barb x 1/4 inch female NPT connector - OBSOLETE)
53 164-8308 Ball valve 1
54 164-8494 Solution flow decal 1
55 164-8495 28 1/2 inch copper tubing 1
56 164-8496 30 1/2 inch copper tubing 1
57 164-8497 1/4 inch compression tube tee 1
