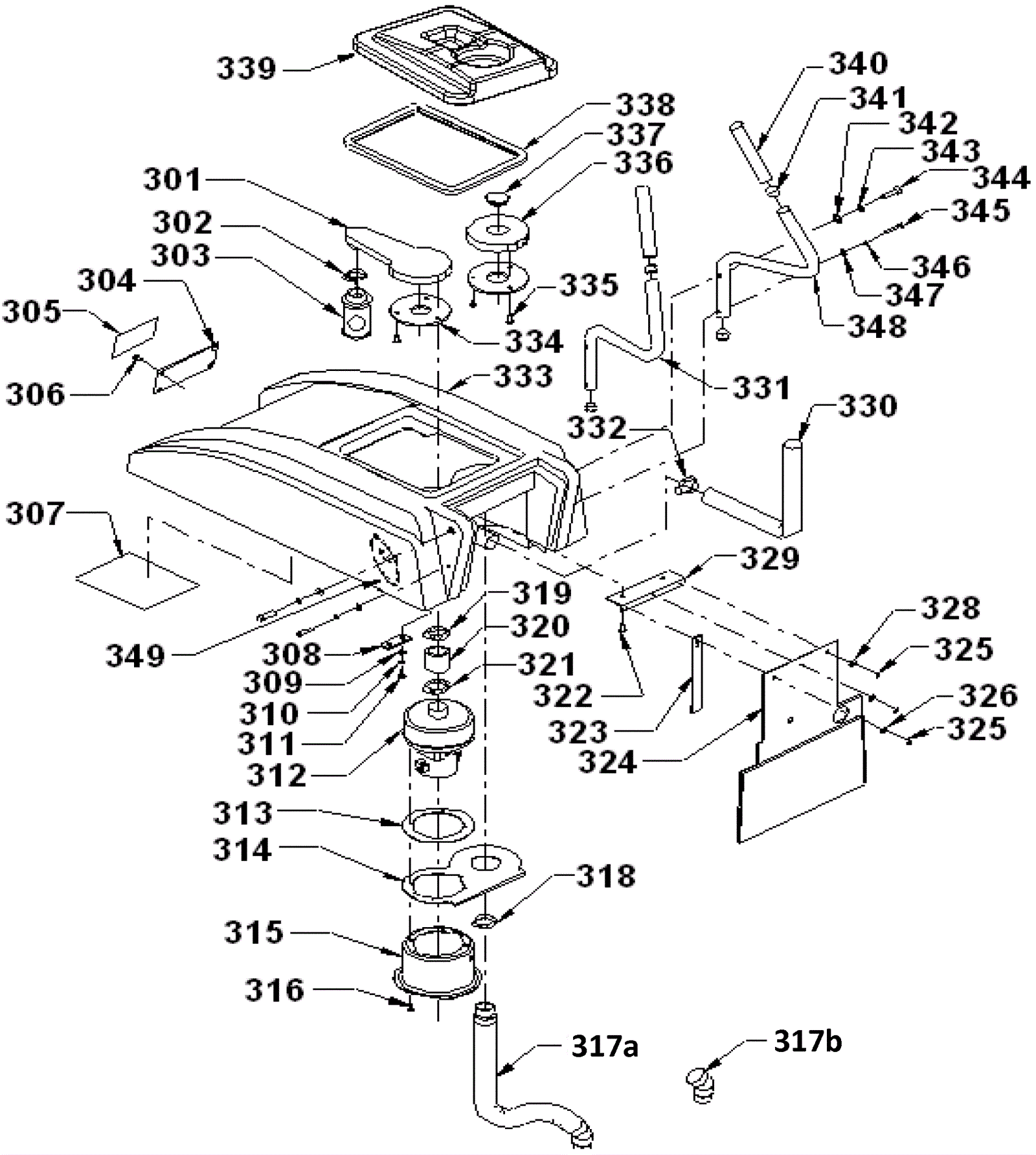

WRANGLER 2010AB 2 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
301 164-2136 Float connector $39.78 1 usually ships 8-23 days
302 164-0218 Nylon hose clamp $3.69 1 usually ships 8-23 days
303 164-0046 Float screen assembly $106.17 1 ships same day
304 164-2157 Front mounting plate $32.23 1 usually ships 8-23 days
306 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 4 ships same day
307 164-8092 Wiring diagram battery decal $5.67 1 usually ships 1-5 days
308 164-2233 Tank hold down bracket $9.35 2 usually ships 1-5 days
309 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
310 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
311 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 1 ships same day
312a 164-2216 Vac motor 24V, DC $548.41 1 (includes 312b) usually ships 8-23 days
312b 164-2419 Carbon brush 24V $28.66 2 usually ships 1-5 days
313 164-0803 Vac motor/float gasket $6.33 1 ships same day
314 164-2217 Vac motor baffle plate $76.40 1 usually ships 8-23 days
315 164-2219 Vac motor cover $102.62 1 usually ships 8-23 days
316 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 4 ships same day
317a 164-0089 Squeegee vacuum hose with cuffs $47.80 1 ships same day
317b 164-8093 45 degree hose cuff $26.95 1 usually ships 8-23 days
317c 991-8568 Squeegee vacuum hose $43.73 1 (NON-OEM) ships same day
318 997-2000 Hose clamp $2.37 1 ships same day
319 997-2000 Hose clamp $2.37 1 ships same day
320 164-8094 Vacuum motor mounting hose $28.55 1 usually ships 8-23 days
321 997-2000 Hose clamp $2.37 1 ships same day
322 999-1382 Screw 1/4-20 x 1 truss head phillips $1.16 2 ships same day
323 164-2263 Vac motor support $11.94 1 usually ships 1-5 days
324 164-8096 Rear rubber noise deflector $111.82 1 usually ships 1-5 days
325 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 3 ships same day
326 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
328 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
329 164-2255 Rear rubber mount bracket $30.47 1 usually ships 1-5 days
330 164-8097 Drain hose $46.67 1 ships same day
331 164-9257 One piece handle $197.18 1 usually ships 8-23 days
332 997-2000 Hose clamp $2.37 1 ships same day
333 164-8098 Recovery tank $719.35 1 usually ships 8-23 days
334 164-1176 Inlet tube gasket $5.35 2 ships same day
335 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 4 ships same day
336 164-2144 Air intake $41.54 1 usually ships 8-23 days
337 164-2147 Cleanout cap $2.57 1 ships same day
338 164-8099 Tank lid gasket $27.45 1 usually ships 8-23 days
339 164-8100 Tank lid $61.39 1 usually ships 8-23 days
340 164-2210 Handle grip $12.07 2 usually ships 8-23 days
341 164-0222 Plug $4.73 4 usually ships 8-23 days
342 164-0941 Washer 13/32 x 13/16 $5.89 2 ships same day
343 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
344 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
345 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 2 ships same day
346 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
347 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
348 164-9257 One piece handle $197.18 1 usually ships 8-23 days
349 164-8101 Logo decal $14.74 1 usually ships 1-5 days
N/S 164-9246 Handle attachment wrench Call for price 1 usually ships 8-23 days
