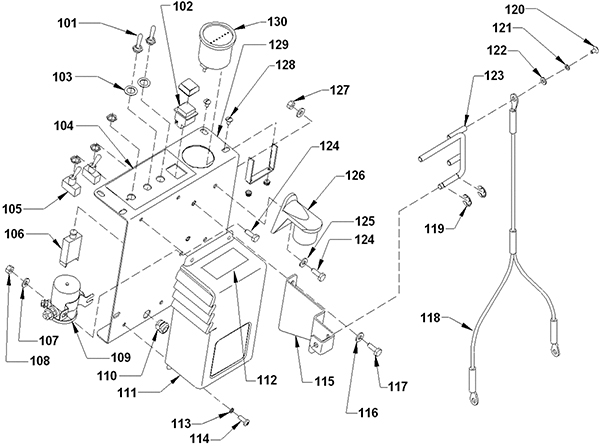

WRANGLER 2010AB 2 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
101 164-0287 Rubber switch boot $10.34 2 ships same day
102a 164-0001 Master switch $24.24 1 ships same day
102b 164-0281 Push button switch boot $33.28 1 usually ships 8-23 days
103 164-0289 Washer flat stainless steel $5.89 2 usually ships 8-23 days
104 164-9185 Control panel decal Call for price 1 usually ships 1-5 days
105 164-0290 Toggle switch $14.63 2 ships same day
106 164-2258 45 amp circuit breaker $134.72 1 usually ships 8-23 days
107 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
108 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
109 164-0892 24V solenoid contactor $82.40 1 ships same day
110 164-4604 Heyco strain relief $2.90 1 usually ships 1-5 days
111a 164-7302 24V onboard battery charger $622.04 1 (120V) ships same day
111b 164-9184 24V onboard battery charger $946.99 1 (240V) usually ships 8-23 days
112 164-9187 Warning decal $18.15 1 usually ships 1-5 days
113 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
114 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 4 ships same day
115 164-7960 Squeegee lift bracket $50.93 1 usually ships 8-23 days
116 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
117 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
118 164-8082 Squeegee cable $22.77 1 ships same day
119 164-9188 6mm retaining ring $4.22 2 usually ships 8-23 days
120 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel $0.99 1 ships same day
121 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
122 164-9190 Washer #10-7/32 x 1/2 flat (pkg of 10) $5.89 1 usually ships 8-23 days
123 164-7961 Squeegee lift handle $93.72 1 ships same day
124 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch $4.94 3 ships same day
125 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
126 164-4519 Drain hose plug $40.33 1 usually ships 8-23 days
127 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
128 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 6 ships same day
129 164-9189 Control panel (OBSOLETE) Call for price 1 usually ships 1-5 days
130 164-8005 Battery meter with hardware $211.18 1 ships same day
