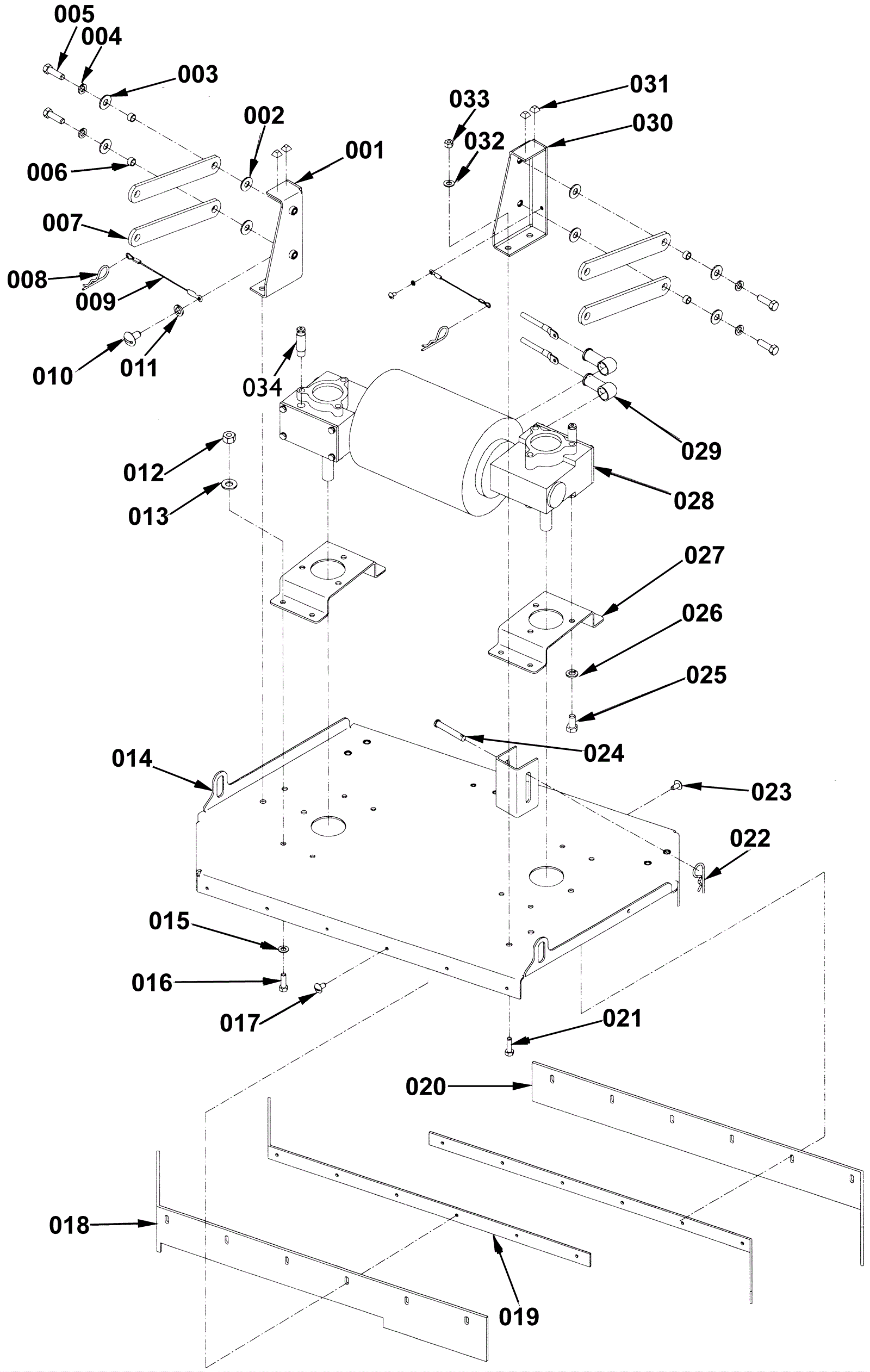

Upper Brush Drive Assembly

#PartDescription ReqNotesAvailability
001 164-1729 Plate mounting bracket 1
002 999-0024 Washer 5/16 flat stainless steel 4
003 999-0024 Washer 5/16 flat stainless steel 4
004 999-0034 Washer 3/8 split lock plain finish 4
005 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 4
006 164-0151 Spacer 8
007 164-0152 Stabilizer bar 4
008 164-1508 Cotter hair pin 2
009 164-1719 Lanyard 2
010 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 2
011 999-0053 Washer #10 split lock plain finish 2
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 8
013 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 8
014 164-1722 Brush motor plate 1
015 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 8
016 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 8
017 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 8
018 164-0713 Rear rubber skirt 1
019 164-1723 Rear skirt securing strap 2
020 164-0714 Front rubber skirt 1
021 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
022 164-1508 Cotter hair pin 1
023 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 8
024 164-9023 Clevis pin 1
025 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 6
026 999-0034 Washer 3/8 split lock plain finish 6
027 164-1724 Brush motor mount 2
028a 164-1725 36V brush motor assembly 1 (includes 028b-028d)
028b 164-1726 Brush motor gear box 2
028c 164-1560 Carbon brush (sold individually) 4
029 164-1598 Rubber terminal boot 2
030 164-1727 Plate mounting bracket 1
031 164-1728 Bumper 4
032 999-0024 Washer 5/16 flat stainless steel 4
033 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
034 164-1721 Brush motor breather assembly 2
