| # | Part | Description |
Req | Notes | Availability |
|---|

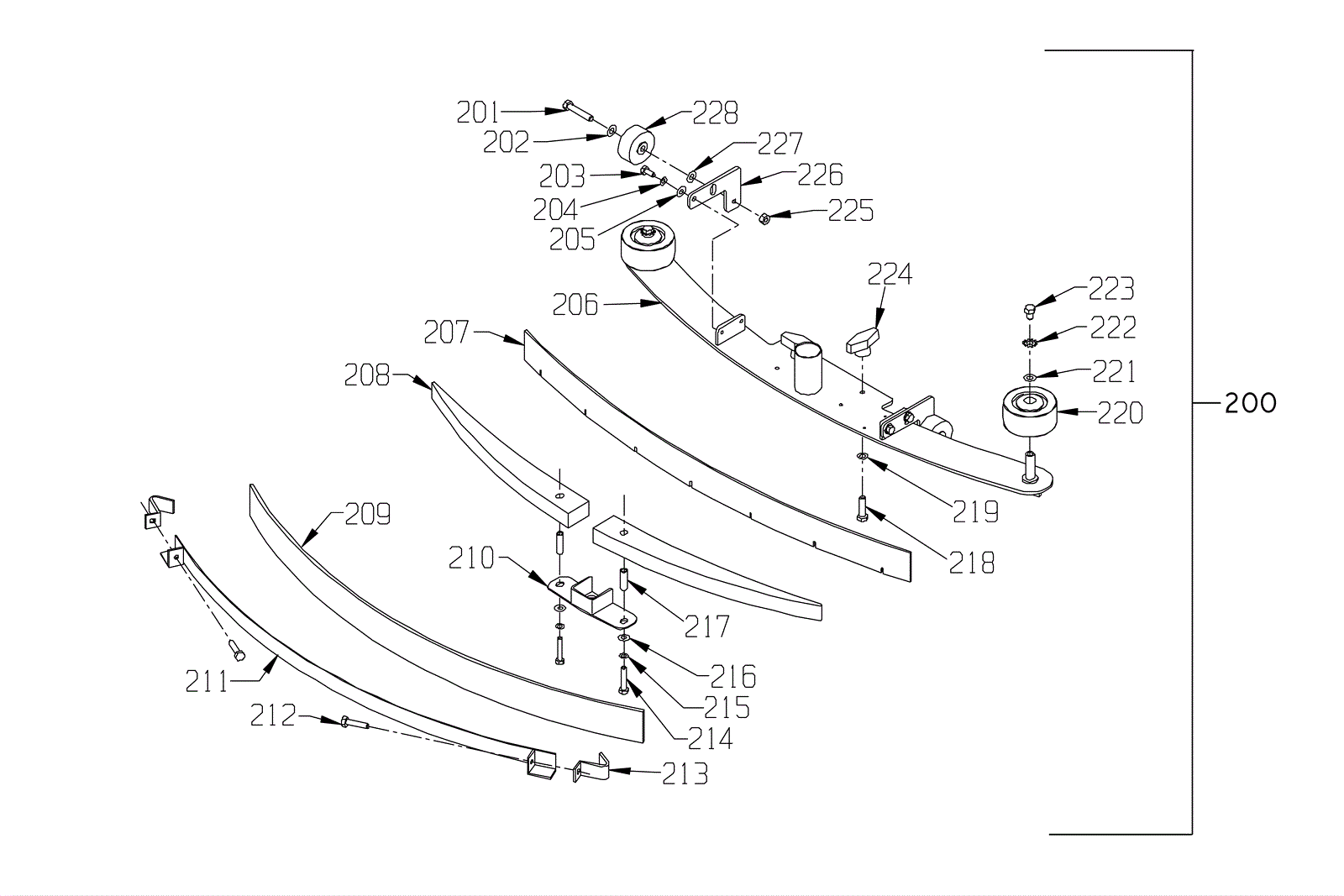

200a |
164-8051
|
37 inch squeegee assembly |
1 |
(Standard) |
|
200b |
164-1590
|
Curved squeegee assembly |
1 |
(Optional) |
|
201 |
999-0108
|
Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated |
2 |
|
|
202 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
203 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
|
204 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
205 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
206a |
164-8052
|
Main squeegee housing |
1 |
(Standard) |
|
206b |
164-0006
|
Squeegee weldment |
1 |
(Optional) |
|
207a |
164-1120
|
Squeegee blade 37 inch neoprene front (black) |
1 |
(Standard) (OEM) |
|
207b |
994-0006
|
Squeegee blade 37 inch neoprene front (black) |
1 |
(Standard) (NON-OEM) |
|
207c |
164-7066
|
Squeegee blade front |
1 |
(Optional) |
|
208a |
164-1119
|
Center wedge for Wrangler 26 and 2625 |
2 |
(Standard) |
|
208b |
164-7067
|
Wedge |
2 |
(Optional) |
|
209a |
164-9179
|
Squeegee blade 39 inch urethane rear curved |
1 |
(Standard) |
|
209b |
164-7069
|
Squeegee blade linatex rear (red) |
1 |
(Optional) |
|
209c |
991-8580
|
Squeegee blade primothane rear (white) |
1 |
|
|
210a |
164-1138
|
Wedge bracket |
1 |
(Standard) |
|
210b |
164-7070
|
Bracket |
1 |
(Optional) |
|
211a |
164-1117
|
Rear securing strap for Wrangler 26 and 2625 |
1 |
(Standard) |
|
211b |
164-7068
|
Squeegee blade securing strap |
1 |
(Optional) |
|
212 |
999-0639
|
Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated |
2 |
|
|
213 |
164-1125
|
End hook |
2 |
|
|
214 |
999-0344
|
Bolt 1/4-20 x 1 1/2 hex head plain finish |
2 |
|
|
215 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
216 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
217 |
164-1139
|
Spacer |
2 |
|
|
218 |
999-0639
|
Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated |
2 |
|
|
219 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
220 |
991-2009
|
3 inch bumper wheel |
2 |
|
|
221 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
222 |
999-0105
|
Washer 5/16 external star lock zinc plated |
2 |
|
|
223 |
999-0029
|
Bolt 5/16-18 x 1/2 hex head plain finish |
2 |
|
|
224 |
164-1565
|
Knob |
2 |
|
|
225 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
226 |
164-1137
|
Dolly wheel mounting bracket |
2 |
|
|
227 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
228 |
991-2005
|
Small roller wheel (gray) |
2 |
|
|
N/S |
999-0051
|
Washer #6 medium split lock |
2 |
(Standard) |
|
N/S |
164-1136
|
Squeegee level |
1 |
(Standard) |
|
N/S |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
2 |
(Standard) |
|
