| # | Part | Description |
Req | Notes | Availability |
|---|

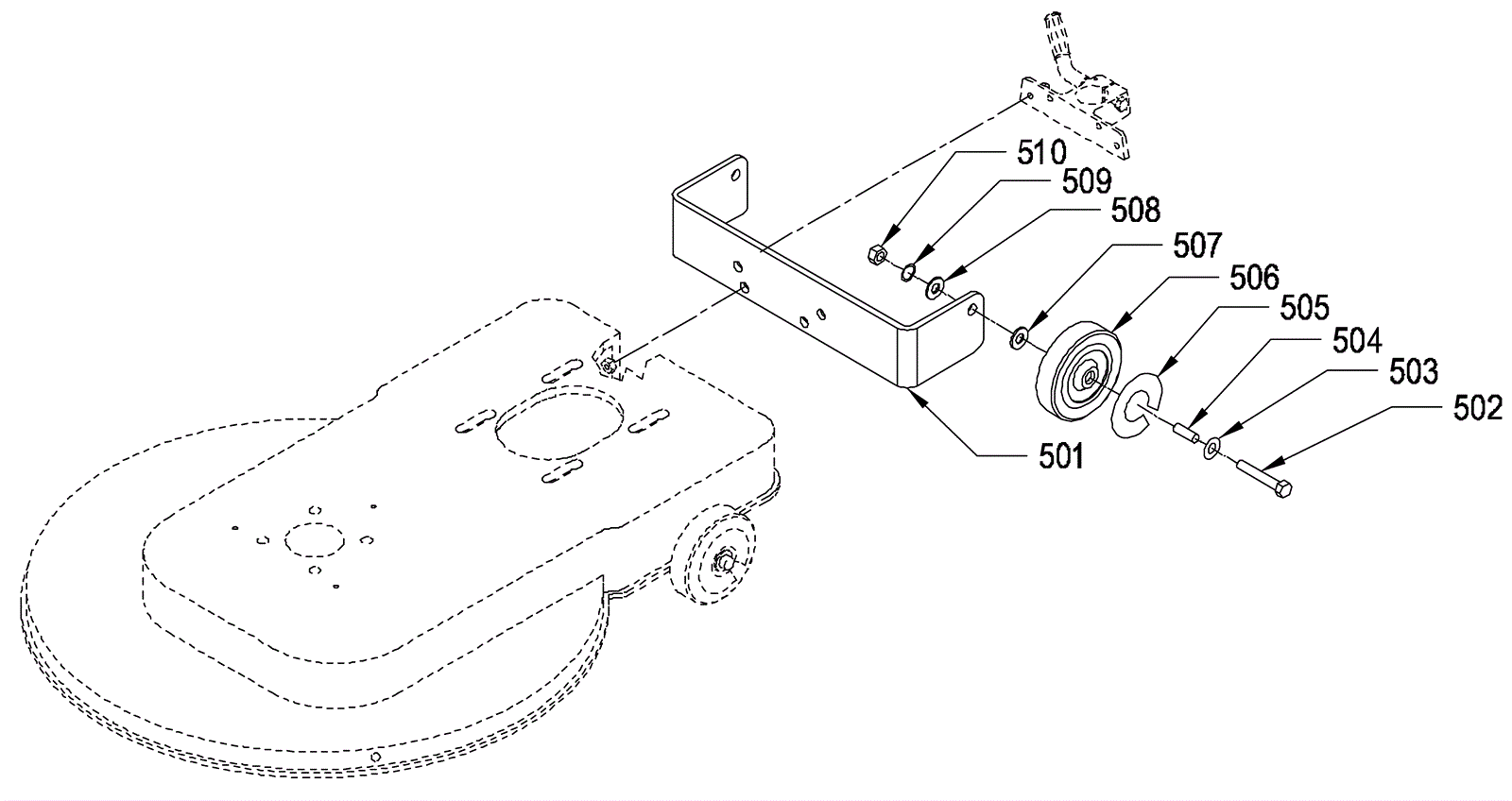

501 |
164-0758
|
Wheel bracket |
1 |
|
|
502 |
999-0390
|
Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated |
2 |
|
|
503 |
164-5182
|
Washer 1/2 bowed |
3 |
|
|
504 |
164-0757
|
Axle spacer |
2 |
|
|
505 |
164-0745
|
Wheel decal |
2 |
|
|
506 |
164-0017
|
5 inch wheel |
2 |
|
|
507 |
164-5182
|
Washer 1/2 bowed |
2 |
|
|
508 |
164-0941
|
Washer 13/32 x 13/16 |
2 |
|
|
509 |
999-0034
|
Washer 3/8 split lock plain finish |
2 |
|
|
510 |
999-0170
|
Nut 3/8-16 hex plain finish |
2 |
|
|
