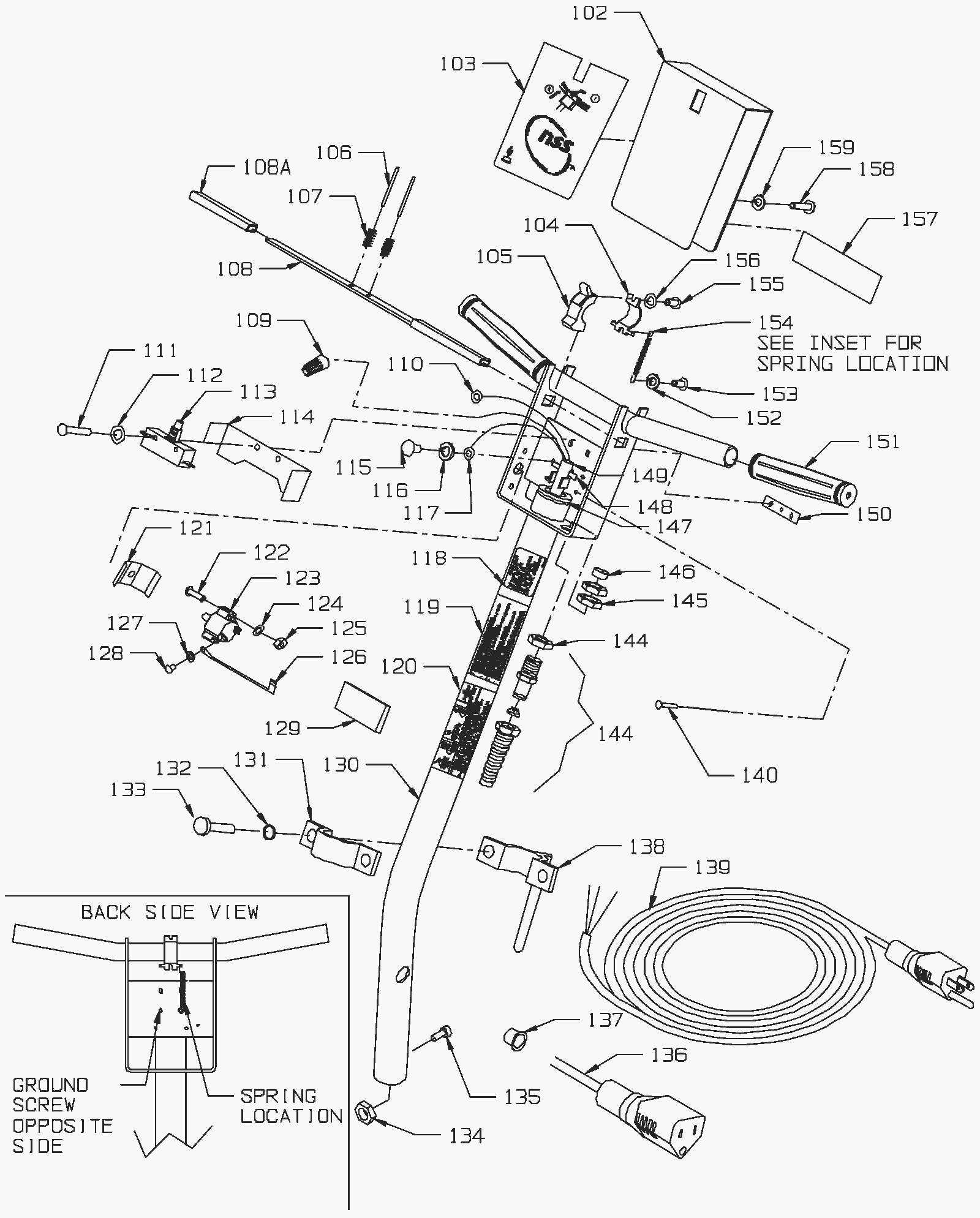

Handle Assembly

#PartDescription ReqNotesAvailability
102 164-5069 Metal switch box cover 1
103 164-4436 Switch box with circuit breaker icon 1
104 164-5049 Safety lockout bracket 1
105 164-1856 Safety lockout 1
106 164-5051 Roll pin 2
107 164-5088 Gear Research pinion 2
108a 164-5053 Switch lever with grips 1 (includes 108b and 108c)
108b 164-1844 Switch lever 1
108c 164-5054 Switch lever grip 2
109 998-0061 Wire nut (orange) 1
110 164-1801 14-16 GA #8 Ring Terminal 1
111 999-0102 Screw 6-32 x 1 round head slotted zinc plated 2
112 999-0148 Washer #6 external star lock zinc plated 1
113 164-0015 Switch 1
114 164-5056 Switch insulator 1
115 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
116 999-0053 Washer #10 split lock plain finish 1
117 164-4649 10 ring terminal 1
118 164-5078 Decal kit 1
119 164-3162 Electrical caution label 1
120 164-3162 Electrical caution label 1
121 164-0790 Breaker lead-insulation 1
122 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 2
123 164-0791 17 1/2 amp circuit breaker 1
124 999-0053 Washer #10 split lock plain finish 2
125 999-0004 Nut 10-24 k-lock zinc plated 2
126 164-0793 Circuit breaker lead 1
127 999-0150 Washer #8 medium split lock 2
128 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 2
129 164-5058 Cushion pad 1
130 164-4364 Electric charger handle 1
131 164-5064 Cord hook clamp 1
132 999-0060 Washer 1/4 split lock plain finish 2
133 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
134 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
135 999-0012 Screw 10-24 x 3/8 socket head alloy plain finish 1
136 164-5176 Handle cord 1
137 164-5175 Cord grommet 1
138 164-5080 Cord hook 1
139a 164-3128 14/3 power cord 75 foot 1
139b 164-5077 14/3 power cord 50 foot 1 (optional)
136c 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
136d 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
140 999-0245 Screw 6-32 x 3/4 round head phillips zinc plated 1
144a 164-5075 Cord strain relief 1
144b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
145 164-5074 Strain relief nut 2
146 164-5073 Cord clamp 1
147 164-5072 Flat washer 1
148 164-5061 Cord clamp 1
149 991-1401 Clear vinyl tubing (sold by the inch) 4
150 164-5057 Double hole switch speed nut 1
151 164-0016 Handle grip 2
152 999-0053 Washer #10 split lock plain finish 1
153 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
154 164-1842 Spring 1
155 164-1877 Screw M3-.05 x 8mm pan head phillips thread cutting 2
156 164-1873 Washer M3 exterior star lock 2
157 164-4354 Identifier decal- EC1500 (OBSOLETE) 1
158 999-0053 Washer #10 split lock plain finish 2
159 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated 2
