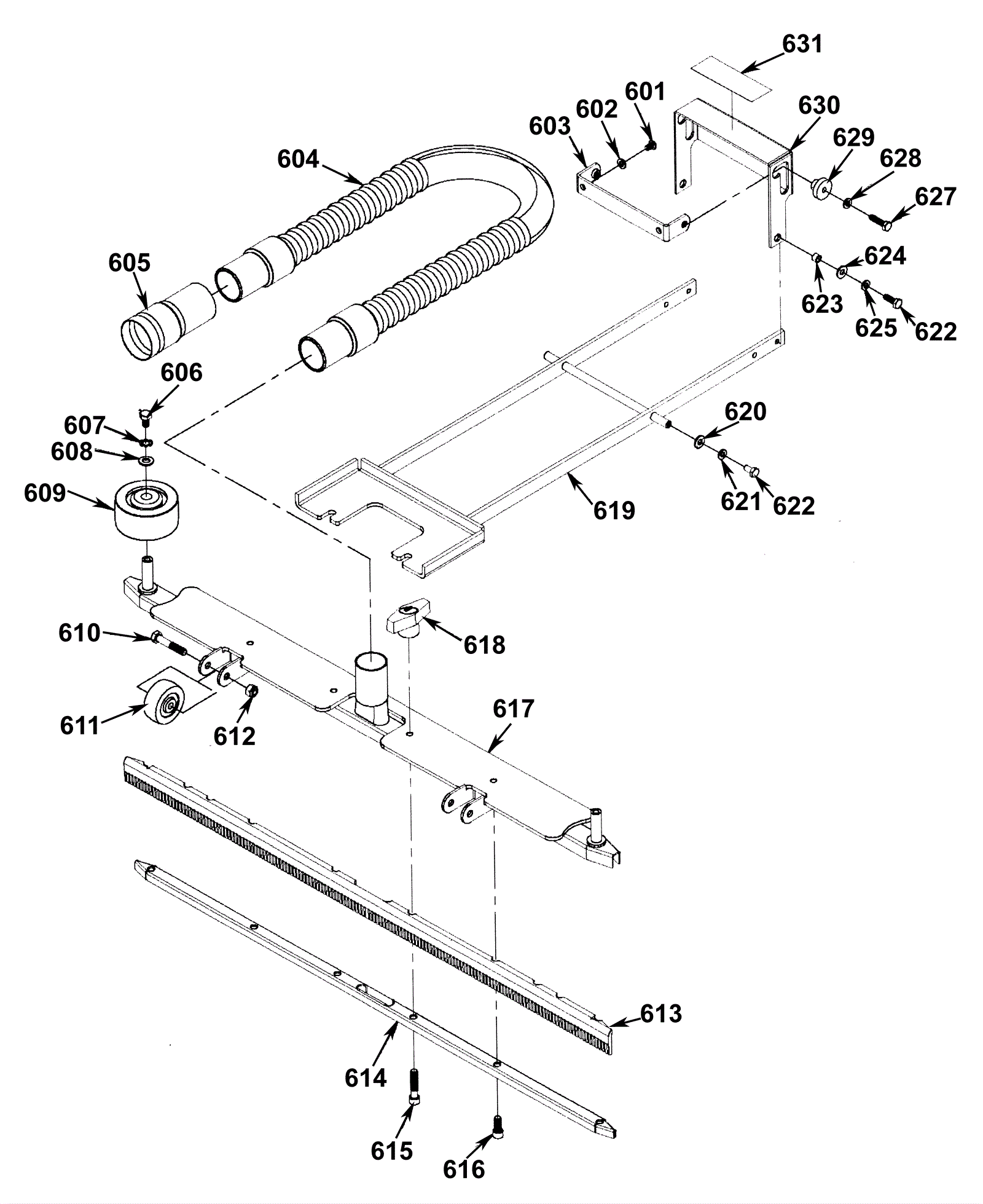

Front Mount Squeegee Assembly

#PartDescription ReqNotesAvailability
601 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated 2
602 999-0060 Washer 1/4 split lock plain finish 2
603 164-7391 Rear pivot bracket (OBSOLETE) 1
604 164-7392 32 inch hose with cuff 1
605 164-2600 1 1/2 inch hose coupling 1
606 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
607 999-0105 Washer 5/16 external star lock zinc plated 2
608 999-0024 Washer 5/16 flat stainless steel 2
609 991-2009 3 inch bumper wheel 2
610 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
611 991-2005 Small roller wheel (gray) 2
612 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
613 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear) 1
614 164-0243 Squeegee weldment (narrow mount) 1
615 999-0179 Screw 5/16-18 x 1 1/2 socket head alloy plain finish 2
616 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 4
617 164-0243 Squeegee weldment (narrow mount) 1
618 164-1565 Knob 2
619 164-7393 Squeegee lift arm (OBSOLETE) 1
620 999-0123 Washer 1/4 SAE flat zinc plated 2
621 999-0060 Washer 1/4 split lock plain finish 2
622 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
623 164-0136 Bushing 2
624 999-0123 Washer 1/4 SAE flat zinc plated 2
625 999-0060 Washer 1/4 split lock plain finish 2
627 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
628 999-0060 Washer 1/4 split lock plain finish 2
629 164-3032 Spacer guide 2
630 164-7394 Foot pedal with latch (OBSOLETE) 1
631 164-7395 Squeegee operation decal (OBSOLETE) 1
N/S 164-7981 Front mount squeegee kit (OBSOLETE) 1
N/S 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 2
