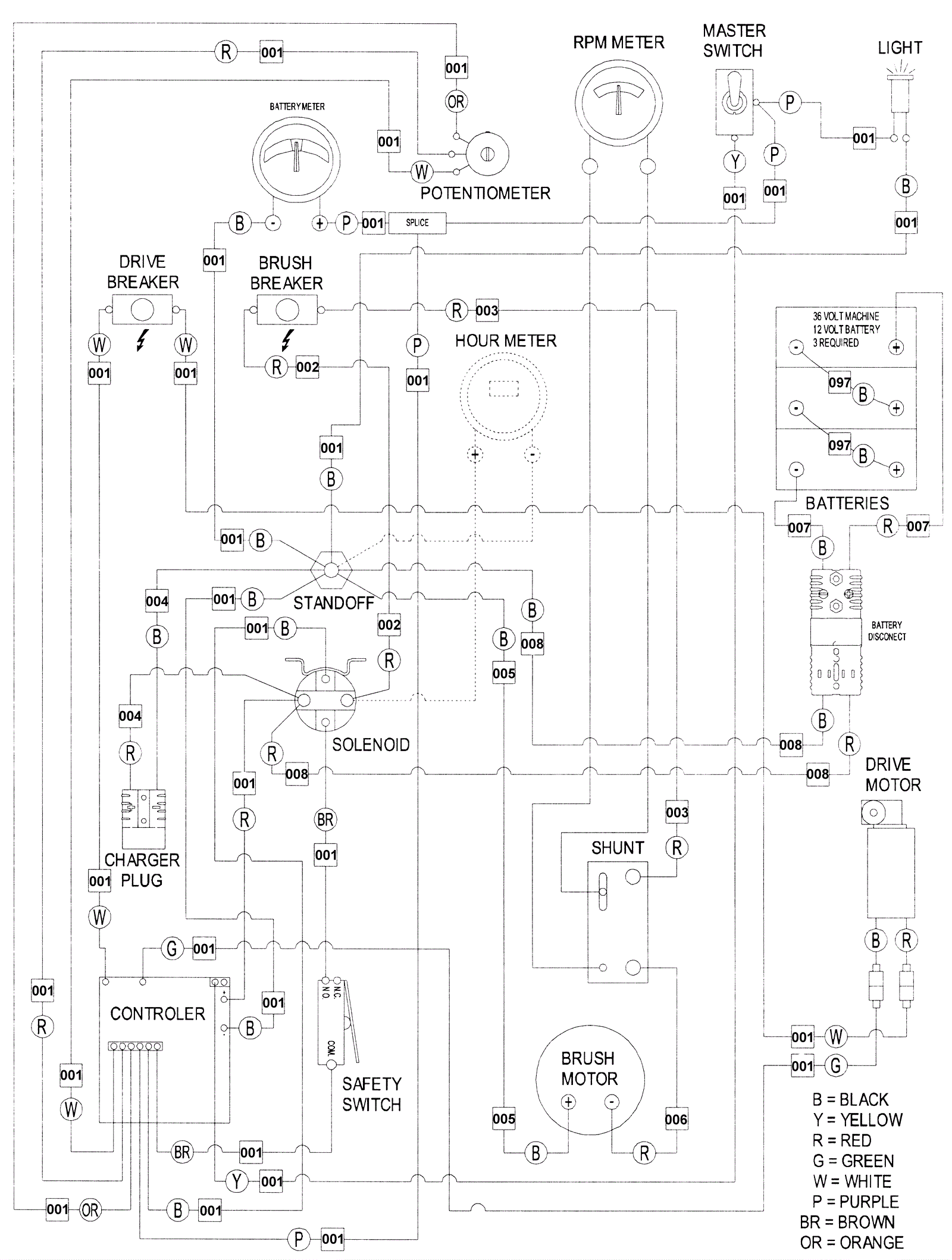

Wiring Diagram

#PartDescription ReqNotesAvailability
001 164-6445 Wire harness 1
002 164-6446 Wire assembly 1
003 164-6447 Wire assembly 1
004 164-6288 Wire assembly (OBSOLETE) 1
006 164-6427 Wire assembly 1
007 164-1321 Wire assembly 1
008 164-6350 Wire assembly 1
097a 998-0010 Battery jumper cable - ring type (red) 2 (For use with top, bolt type post batteries)
097b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 2 (NON-OEM)
N/S 164-0027 36V solenoid contactor 1
N/S 991-2105 SB50 50amp charger plug with pins (gray) 1
N/S 164-3029 Shunt 1
N/S 164-4612 Wire tie 5
N/S 164-0026 Snap switch 1
N/S 164-0023 Toggle switch 1
N/S 172-2039 5K potentiometer 1
N/S 164-0070 36V Curtis speed control 1
N/S 164-0022 Battery meter 1
N/S 991-1621 10amp circuit breaker 1
N/S 164-6405 36V 2500 rpm imperial motor 1
N/S 164-1451 Hour meter 1
N/S 164-0283 Indicator light with clip (green) 1
N/S 164-0024 RPM meter 1
N/S 991-2112 175amp charger plug with pins (gray) SB175 2
N/S 991-1614 70amp circuit breaker 1
N/S 164-6470 Hour meter leads (OBSOLETE) 1
N/S 164-0310 Insulated stand off 1
N/S 164-1577 36V drive motor 1
N/S 162-0002 12V 185Ah wet battery (SNSR) 3
N/S 162-0047 12V 215Ah AGM battery (Group J185) (SNSR) 3
