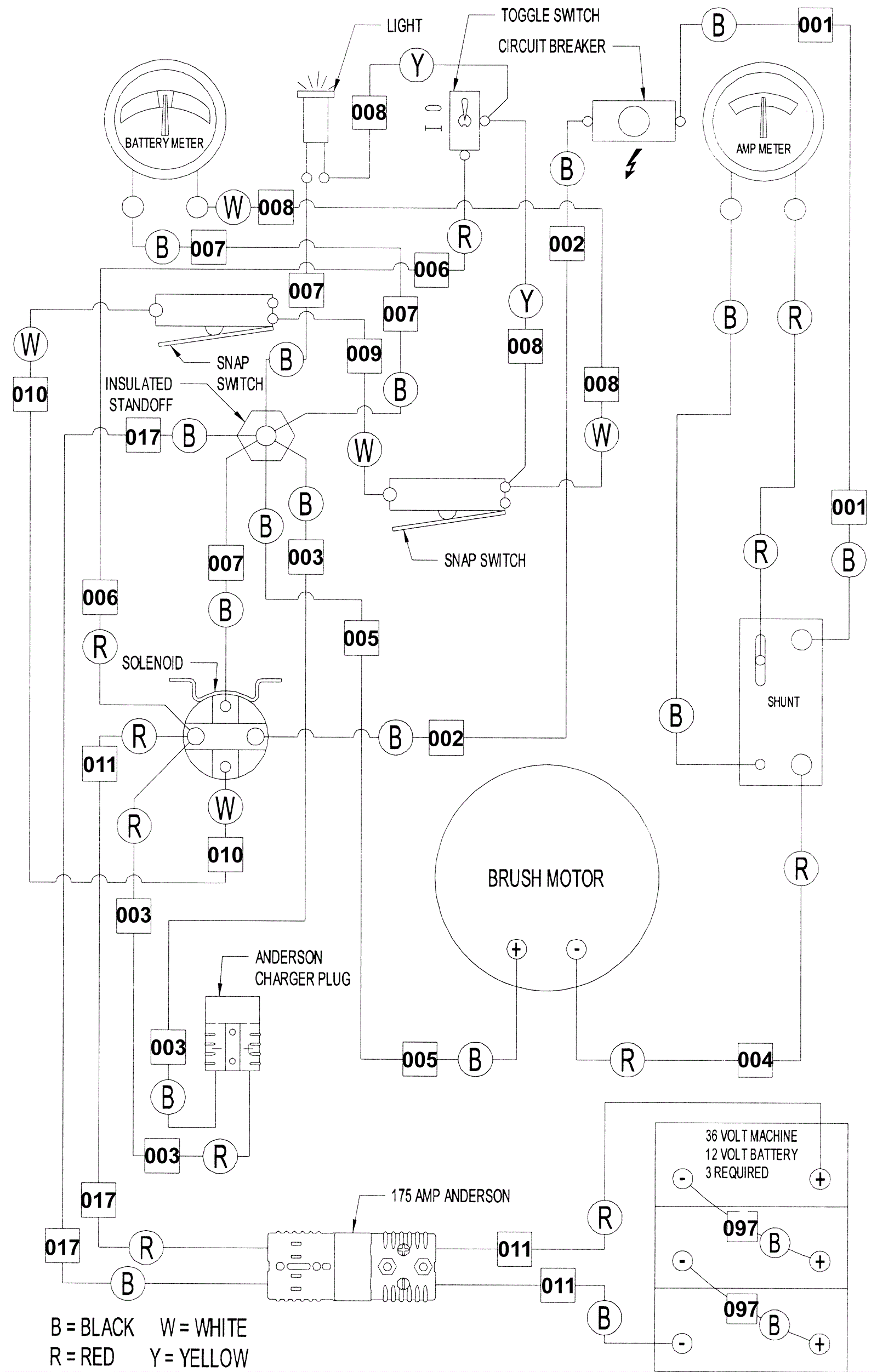

CHARGER 2025AB Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 164-6286 Wire assembly $15.64 1 usually ships 1-5 days
002 164-6287 Wire assembly $12.52 1 usually ships 1-5 days
003 164-6288 Wire assembly (OBSOLETE) $28.71 1 usually ships 1-5 days
004 164-6427 Wire assembly $32.25 1 usually ships 17-22 days
006 164-6289 Wire assembly-solenoid/main switch (OBSOLETE) $3.63 1 usually ships 1-5 days
007 164-6290 Wire assembly $9.69 1 usually ships 1-5 days
008 164-6291 Wire assembly $8.80 1 usually ships 1-5 days
009 164-6292 Wire assembly $4.29 1 usually ships 1-5 days
010 164-6293 Wire assembly $3.63 1 usually ships 1-5 days
011 164-1321 Wire assembly $140.38 1 ships same day
017 164-6350 Wire assembly $158.66 1 usually ships 17-22 days
097a 998-0010 Battery jumper cable - ring type (red) $6.06 2 (For use with top, bolt type post batteries) ships same day
097b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $16.98 2 (NON-OEM) usually ships 13-17 days
N/S 164-0022 Battery meter $150.84 1 usually ships 1-5 days
N/S 164-0023 Toggle switch $24.95 1 usually ships 17-22 days
N/S 164-0024 RPM meter $160.34 1 usually ships 1-5 days
N/S 164-0026 Snap switch $38.20 2 usually ships 17-22 days
N/S 164-0027 36V solenoid contactor $248.92 1 usually ships 17-22 days
N/S 164-0283 Indicator light with clip (green) $24.95 1 usually ships 17-22 days
N/S 164-0310 Insulated stand off $13.66 1 usually ships 17-22 days
N/S 164-1451 Hour meter $133.54 1 usually ships 17-22 days
N/S 164-3029 Shunt $74.97 1 usually ships 17-22 days
N/S 164-4612 Wire tie $7.38 6 usually ships 17-22 days
N/S 164-6405 36V 2500 rpm imperial motor $1,279.23 1 usually ships 17-22 days
N/S 164-6470 Hour meter leads (OBSOLETE) $4.75 1 usually ships 1-5 days
N/S 991-1614 70amp circuit breaker $193.80 1 usually ships 17-22 days
N/S 991-2105 SB50 50amp charger plug with pins (gray) $7.19 1 ships same day
N/S 991-2112 175amp charger plug with pins (gray) SB175 $16.09 2 ships same day
N/S 162-0002 12V 185Ah wet battery (SNSR) $511.50 3 usually ships 12-16 days
N/S 162-0047 12V 215Ah AGM battery (Group J185) $907.50 3 ships same day
