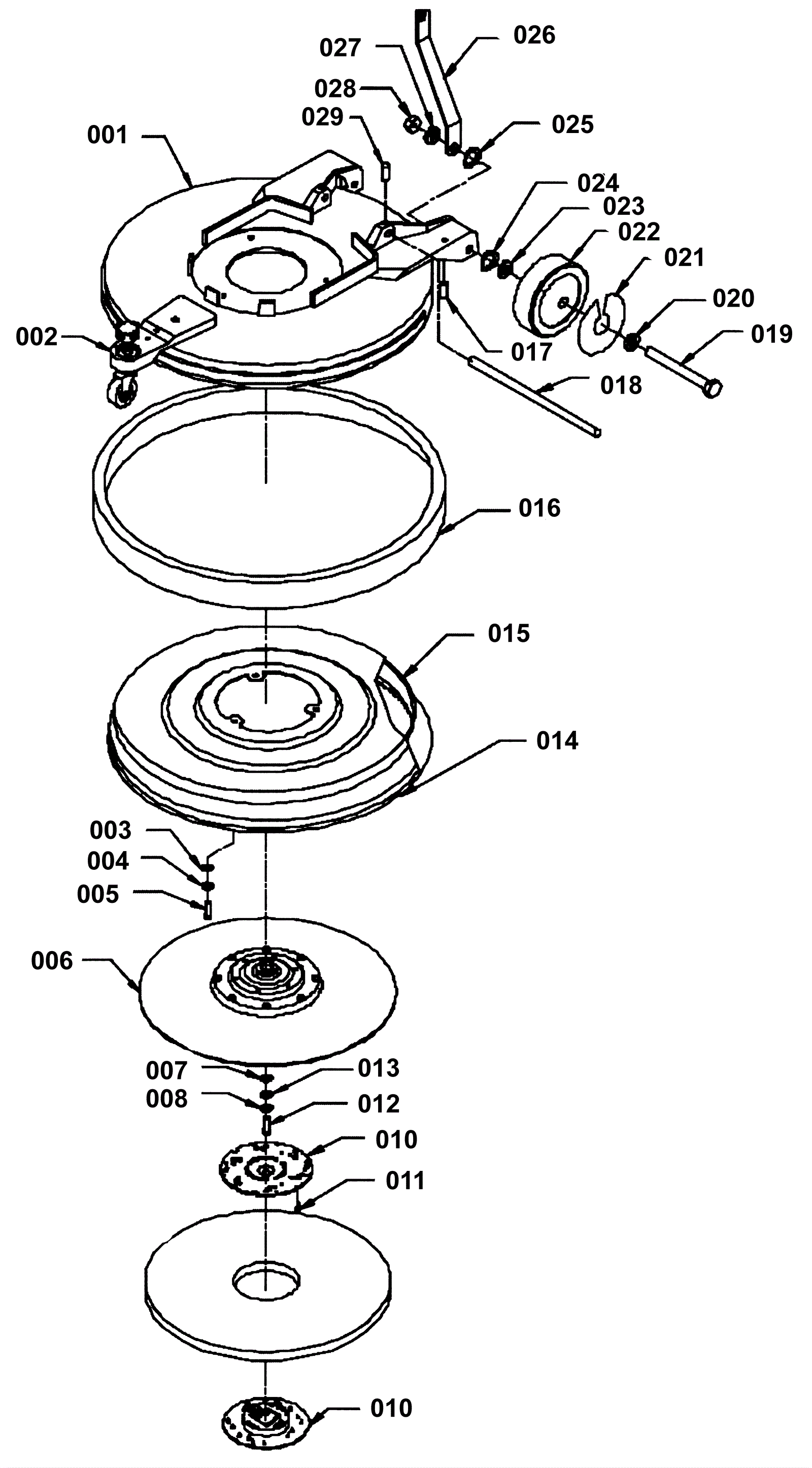

CHARGER 2500 Base Assembly-Lower

#PartDescriptionPriceReqNotesAvailability
001 164-4365 Electric charger base skirt, painted $965.09 1 usually ships 1-5 days
002 164-4359 Caster trim assembly including knob & bracket $326.99 1 usually ships 8-23 days
003 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 3 ships same day
004 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
005 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish $0.99 3 ships same day
006 164-4332 Flex pad driver- assembly/balance $273.90 1 usually ships 1-5 days
007 999-0863 Washer 3/4 x 14 gauge narrow bushing $0.99 2 ships same day
008 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
010 991-2206 Center-Lok 3 pad holder $35.50 1 ships same day
011 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 3 ships same day
012 999-0614 Bolt 5/16-24 x 7/8 hex head grade 5 zinc plated $0.99 1 ships same day
013 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
014a 164-4371 Shroud assembly $505.71 1 usually ships 1-5 days
014b 164-4371 Shroud assembly $505.71 1 usually ships 1-5 days
014c 992-0001 Velcro loop (sold by the inch) $0.75 6 usually ships 4-15 days
014d 164-4371 Shroud assembly $505.71 1 usually ships 1-5 days
015 164-4371 Shroud assembly $505.71 1 usually ships 1-5 days
016 164-5027 23 inch bumper $95.54 1 usually ships 1-5 days
017 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish $4.51 2 ships same day
018 164-4366 Pivot bar, plated $34.93 1 usually ships 1-5 days
019 999-0927 Bolt 1/2-20 x 5 1/2 hex head grade 8 plain finish $7.98 2 usually ships 1-5 days
020 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
021 164-4352 Electric charger 2500 decal kit $101.20 1 usually ships 1-5 days
022 164-0017 5 inch wheel $34.50 2 ships same day
023 164-5168 Flat nylon washer $2.71 2 ships same day
024 164-5182 Washer 1/2 bowed $5.89 2 usually ships 8-23 days
025 164-5182 Washer 1/2 bowed $5.89 2 usually ships 8-23 days
026 164-5167 Handle brace $26.18 2 usually ships 8-23 days
027 164-5168 Flat nylon washer $2.71 2 ships same day
028 164-6771 Nut 1/2-20 thin hex w/ nylok insert (OBSOLETE) $5.28 2 usually ships 1-5 days
029 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish $4.51 2 ships same day
