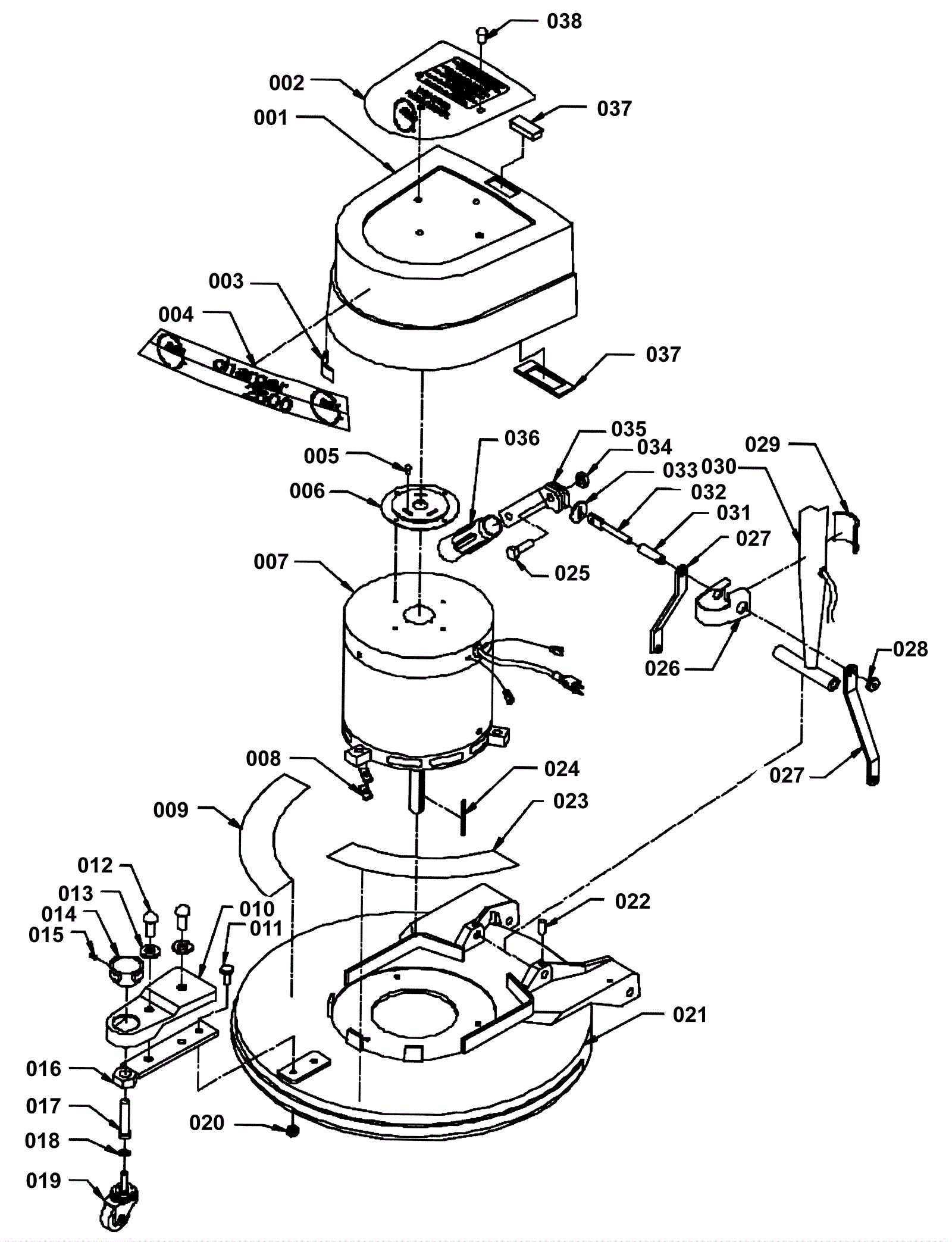

CHARGER 2500 Base Assembly-Upper

#PartDescriptionPriceReqNotesAvailability
001a 164-4368 Motor cover assembly $263.18 1 usually ships 1-5 days
001b 164-4367 Motor cover $189.48 1 usually ships 1-5 days
002 164-4352 Electric charger 2500 decal kit $101.20 1 usually ships 1-5 days
003 164-4613 Gasket neoprene 1 x 1/8 inch $2.97 1 usually ships 8-23 days
004 164-4352 Electric charger 2500 decal kit $101.20 1 usually ships 1-5 days
005 999-0543 Screw 10-32 x 3/8 truss head phillips zinc plated $0.99 3 ships same day
006 164-0751 Cover stand off plated $20.30 1 usually ships 1-5 days
007 164-4388 Motor 115V, 2500 electric charger $1,508.54 1 usually ships 1-5 days
008 164-5016 Rubber mount pad $2.84 5 usually ships 8-23 days
009 164-4352 Electric charger 2500 decal kit $101.20 1 usually ships 1-5 days
010a 164-4359 Caster trim assembly including knob & bracket $326.99 1 usually ships 8-23 days
010b 164-4349 Caster trim $54.29 1 usually ships 1-5 days
011 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 ships same day
012 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel $0.99 2 ships same day
013 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
014 164-4356 Knob- machined $103.90 1 usually ships 1-5 days
015 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish $4.51 1 ships same day
016 164-4358 Caster bracket, painted $88.44 1 usually ships 1-5 days
017 164-4378 Caster stem- plated $57.20 1 usually ships 8-23 days
018 164-6777 Washer 7/16 external star lock (pkg of 5) $5.89 1 usually ships 8-23 days
019 164-6238 Caster $86.21 1 usually ships 8-23 days
020 164-6778 Nut 5/16-18 thin hex with nylon insert $6.34 2 usually ships 8-23 days
021 164-4365 Electric charger base skirt, painted $965.09 1 usually ships 1-5 days
022 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish $4.51 1 ships same day
023 164-4352 Electric charger 2500 decal kit $101.20 1 usually ships 1-5 days
024 164-1326 Square keyway $5.89 1 ships same day
025 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 1 ships same day
026 164-5164 Handle tube clamp $30.53 1 usually ships 8-23 days
027 164-5167 Handle brace $26.18 2 usually ships 8-23 days
028 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
029 164-5165 Clamp shoe $13.20 1 usually ships 8-23 days
030 164-5179 Handle $325.44 1 usually ships 8-23 days
031 164-5166 Rubber tube $7.59 1 usually ships 8-23 days
032 164-5160 Clamp bolt $3.43 1 ships same day
033 164-1823 Washer slotted $1.91 1 ships same day
034 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
035 164-5159 Clamp lever $5.50 1 usually ships 8-23 days
036 164-0020 Handle grip $2.84 1 ships same day
037 164-4380 Amp meter with hardware $118.53 1 usually ships 8-23 days
038 999-0879 Screw 8-32 x 1/4 truss head slotted stainless steel $0.99 4 ships same day
