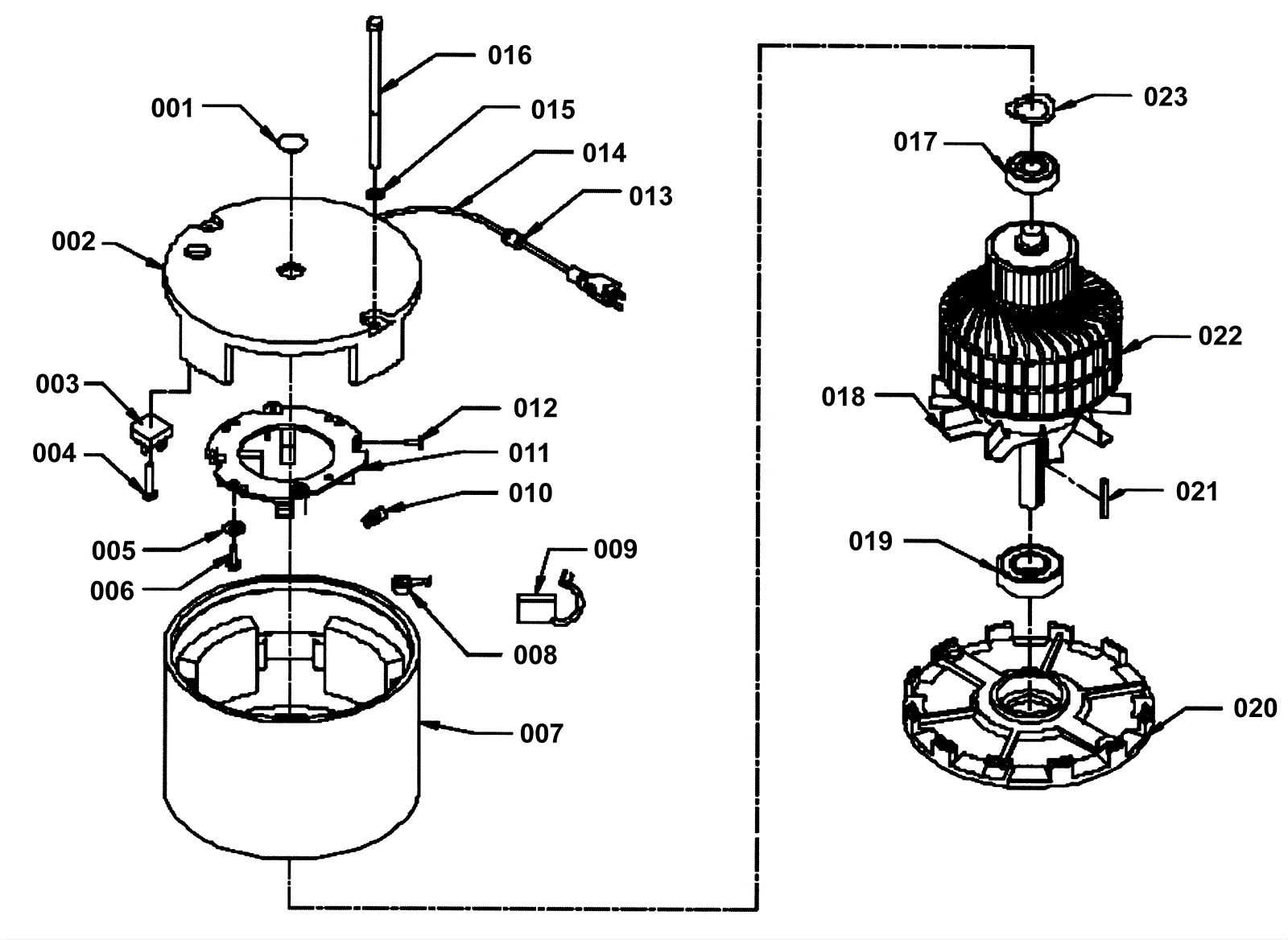

CHARGER 2500 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
000 164-4388 Motor 115V, 2500 electric charger $1,508.54 1 usually ships 1-5 days
002a 164-0798 Top end bell (OBSOLETE) $171.99 1 usually ships 1-5 days
002b 164-4336 Top end bell assembly with pig tail (OBSOLETE) $478.17 1 usually ships 1-5 days
003 163-0063 240V rectifier $10.65 2 ships same day
004 999-0055 Screw 8-32 x 3/4 round head slotted zinc plated $0.99 1 ships same day
005 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
006 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
007 164-1299 Frame with magnets 4 pole (OBSOLETE) $208.01 1 usually ships 1-5 days
008 164-1298 Brush spring $9.13 4 usually ships 8-23 days
010 164-4406 Switch box decal (OBSOLETE) $5.50 1 usually ships 1-5 days
011 164-1296 Brush ring assembly with dual rectifiers $374.66 1 usually ships 1-5 days
012 999-1153 Screw 10-24 x 1/4 binding head slotted brass plated $5.09 4 usually ships 1-5 days
013 164-0796 Heyco strain relief $4.09 1 usually ships 1-5 days
014 164-5139 Pigtail cord (OBSOLETE) $31.08 1 usually ships 8-23 days
015 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
016 164-1320 Bolt 1/4-20 x 7 hex head thru $3.63 2 usually ships 1-5 days
017 164-0329 Top rotor bearing $28.05 1 usually ships 8-23 days
018 164-3068 Vent fan $59.29 1 usually ships 1-5 days
019 164-1305 Bearing $37.35 1 usually ships 1-5 days
020 164-1295 Bottom end bell (OBSOLETE) $168.08 1 usually ships 1-5 days
021 164-1326 Square keyway $5.89 1 ships same day
022a 164-1302 Armature and vent fan assembly (OBSOLETE) $674.41 1 usually ships 1-5 days
022b 164-1303 Armature $1,434.95 1 usually ships 1-5 days
023 164-1300 Spring washer $2.97 2 usually ships 1-5 days
