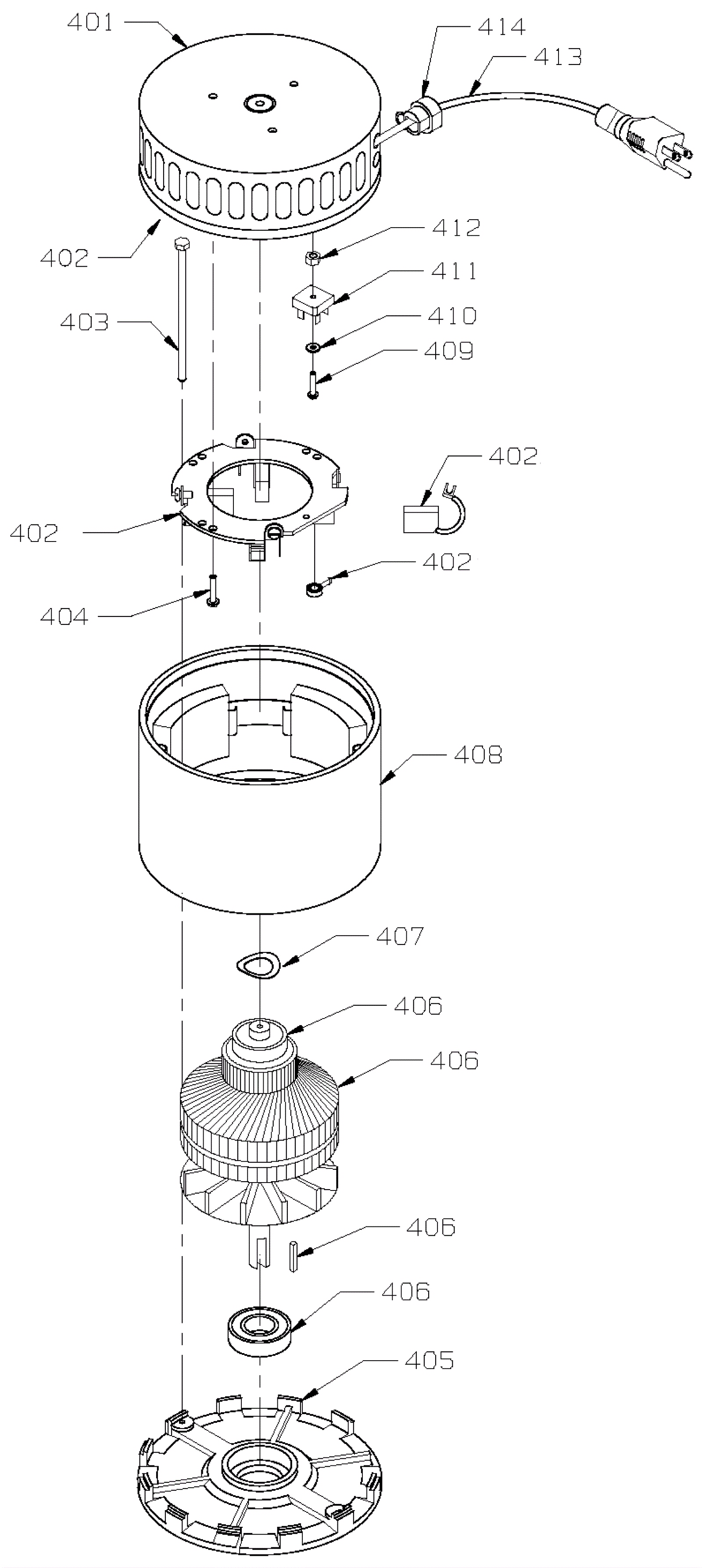

CHARGER 1500 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
401 164-5309 Commutator bracket cover $81.00 1 usually ships 1-5 days
402a 164-8037 Commutator bracket assembly $275.95 1 (includes 402b-402e) usually ships 1-5 days
402b 164-8038 Commutator bracket Call for price 1 usually ships 1-5 days
402c 164-8039 Brush board assembly $148.95 1 (includes 402d and 402e) usually ships 8-23 days
402d 164-4327 Carbon brush, imp. motor $29.60 4 usually ships 8-23 days
402e 164-0324 Carbon brush spring $16.10 4 usually ships 8-23 days
402f 991-1826 Carbon brush for Ohio motor (set of 4) $31.53 4 (Ohio motor) usually ships 5-16 days
402g 164-1298 Brush spring $8.30 4 (Ohio motor) usually ships 8-23 days
403 164-5306 Thru bolt $3.42 2 usually ships 1-5 days
404 999-0572 Screw 10-24 x 1/2 pan head self-tapping zinc $0.99 5 ships same day
405 164-8040 Bottom bracket Call for price 1 usually ships 1-5 days
406a 164-8041 Armature assembly (OBSOLETE) $527.95 1 (includes 406b-406d) usually ships 1-5 days
406b 164-5290 Bottom bearing $46.80 1 usually ships 8-23 days
406c 164-1326 Square keyway $5.35 1 ships same day
406d 164-5291 Top end bearing $46.80 1 usually ships 8-23 days
407 164-5310 Washer helical $4.62 1 usually ships 1-5 days
408 164-5288 Stator frame assembly with clips & magnets $227.40 1 usually ships 1-5 days
409 164-5302 Mounting screw $27.15 2 usually ships 1-5 days
410 164-5303 Washer flat $0.90 2 usually ships 1-5 days
411 163-0063 240V rectifier $8.52 2 ships same day
412 164-5304 Nut hex head with star lock washer $2.46 2 usually ships 1-5 days
413 164-8042 Motor cord $37.55 1 usually ships 1-5 days
414 164-5295 Strain relief $4.86 1 usually ships 1-5 days
