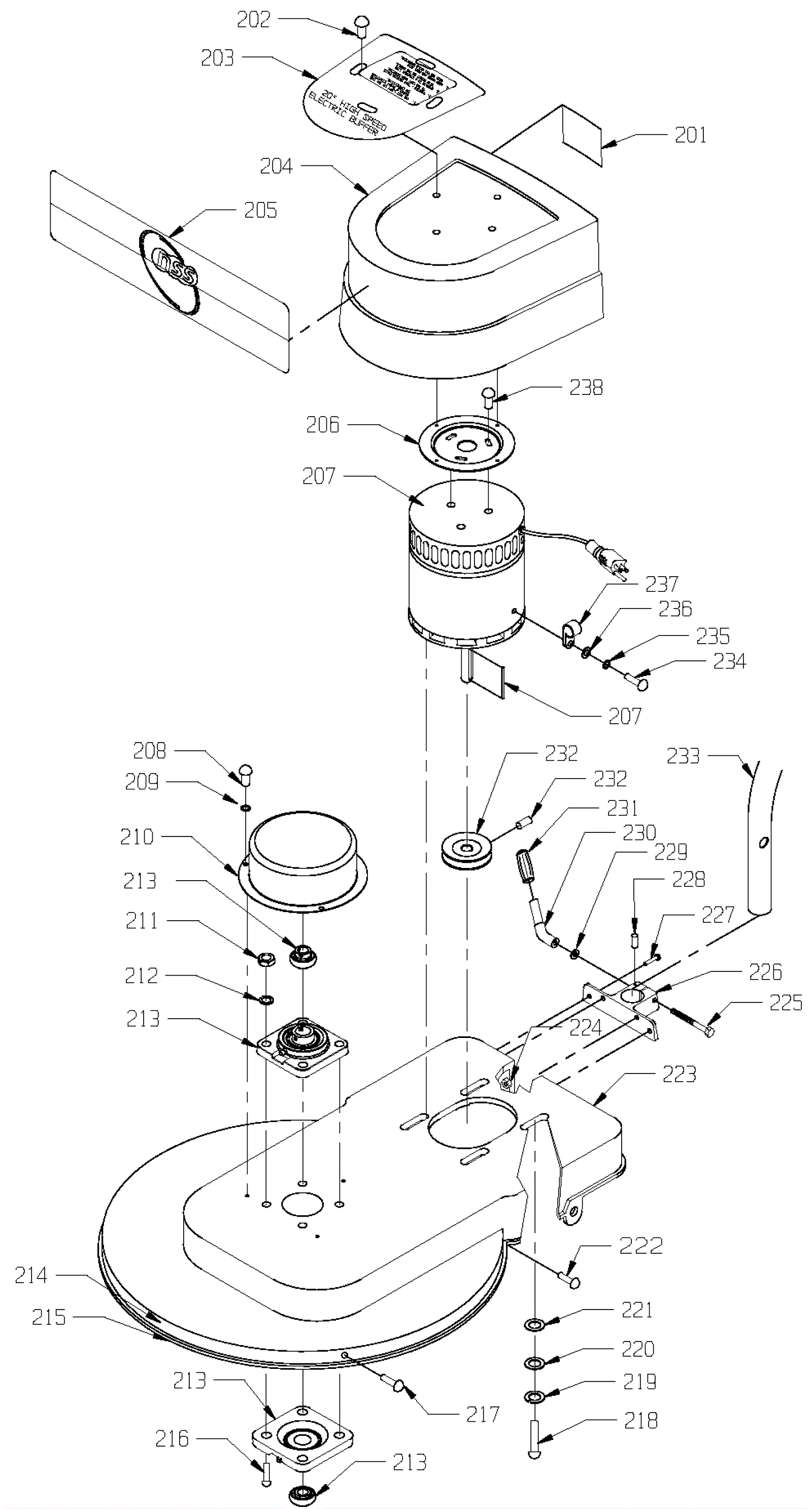

Upper Base Assembly

#PartDescription ReqNotesAvailability
201 164-8033 Handle locking label 1
202 999-0879 Screw 8-32 x 1/4 truss head slotted stainless steel 4
203 164-8034 Motor cover label 1
204 164-0752 Motor cover 1
205 164-1857 Decal (OBSOLETE) 1
206 164-0751 Cover stand off plated 1
207a 164-0750 Motor 1 (includes 207b)
207b 164-1326 Square keyway 1
208 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 3
209 999-0053 Washer #10 split lock plain finish 3
210 164-4319 Bearing cover- painted 1
211 999-0069 Nut 5/16-18 hex 4
212 999-0028 Washer 5/16 split lock plain finish 4
213a 164-0722 Pillow block 2 (includes 231b)
213b 164-0721 Bearing only 2
214 164-0723 Bumper strap 1
215 164-0724 Bumper 1
216 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 4
217 999-0572 Screw 10-24 x 1/2 pan head self-tapping zinc 2
218 164-8035 Screw 3/8-16 x 1 1/4 socket head (OBSOLETE) 4
219 999-0034 Washer 3/8 split lock plain finish 4
220 999-0024 Washer 5/16 flat stainless steel 4
221 999-0033 Washer 7/16 SAE flat 4
222 999-0009 Screw 10-24 x 1 round head slotted zinc plated 2
223 164-0725 Polished deck 1
224 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
225 164-0756 Locking bolt 1
226 164-0755 Casting handle 1
227 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 4
228 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish 2
229 999-0114 Washer 1/2 SAE flat 1
230 164-0754 Handle lock 1
231 164-0020 Handle grip 1
232a 164-0748 Pulley 1 (includes 232b)
232b 999-0668 Screw 5/16-18 x 3/8 socket knurled point set plain finish 1
233 164-4364 Electric charger handle 1
234 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
235 999-0053 Washer #10 split lock plain finish 1
236 999-0998 Washer #10 flat stainless steel 1
237 164-0232 P clamp 1
238 999-0543 Screw 10-32 x 3/8 truss head phillips zinc plated 3
