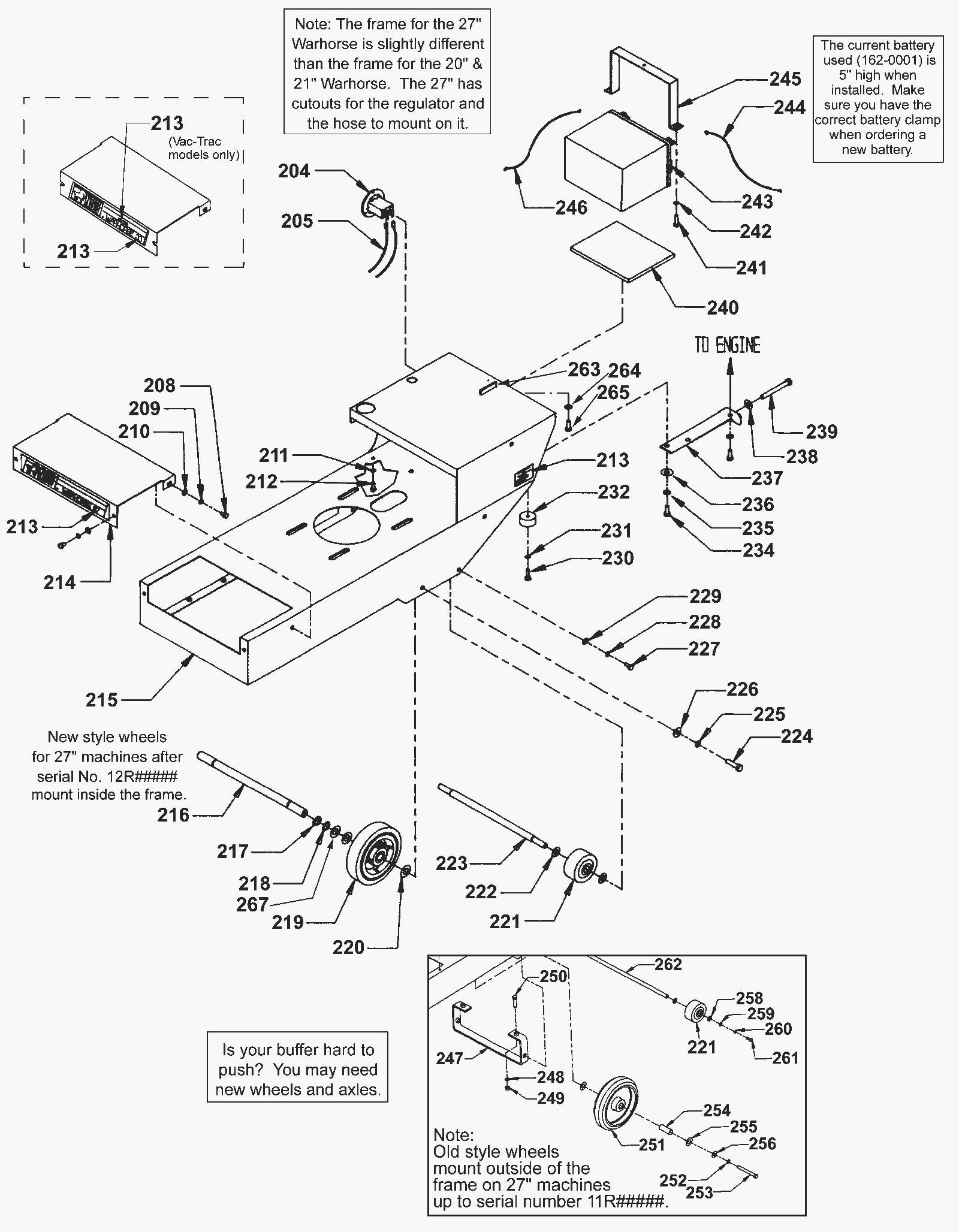

Frame Assembly

#PartDescription ReqNotesAvailability
204a 154-0019 Hour meter 1 (20 and 21 inch) (OEM)
204b 991-8559 Hour meter 1 (NON-OEM)
204c 157-0001 Hour meter 1 (27 inch)
205a 164-1049 Positive lead for hour meter (OBSOLETE) 1
205b 164-0955 Negative lead for hour meter (OBSOLETE) 1
208 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 4
209 999-0060 Washer 1/4 split lock plain finish 4
210 999-0123 Washer 1/4 SAE flat zinc plated 4
211 999-0017 Washer 1/4 external star lock 2 (27 inch)
212 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2 (27 inch)
213 164-0907 Decal kit (OBSOLETE) 1
214a 164-1050 Front cover (OBSOLETE) 1 (old style with bolts going through front and top)
214b 164-0957 Front cover 1 (new style with bolts going through front and side)
215a 164-3097 20 inch deck (standard and Vac-Trac) (OBSOLETE) 1
215b 164-1052 27 inch deck (standard) (OBSOLETE) 1
215c N/A Not available 1 27 inch deck (vac-trac)
216 164-0959 Axle (new style) 1
217 164-1007 Rubber handle grip (black) 2
218 999-0863 Washer 3/4 x 14 gauge narrow bushing 2
219a 991-2014 6 inch drive wheel (includes bearings) 2 (new style)
219b 164-3118 Delrin bearing for 164-0960 2
220 164-0961 Washer nylon 4
221 991-2009 3 inch bumper wheel 2
222 999-0024 Washer 5/16 flat stainless steel 2
223 164-0962 Axle (new style) 1
224 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
225 999-0034 Washer 3/8 split lock plain finish 2
226 999-0120 Washer 3/8 SAE flat 1
227 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
228 999-0028 Washer 5/16 split lock plain finish 2
229 999-0349 Washer 5/8 SAE flat 2
230 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
231 999-0060 Washer 1/4 split lock plain finish 2
232 164-0969 Rubber stop 2
234 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 4
235 999-0034 Washer 3/8 split lock plain finish 4
236 999-0120 Washer 3/8 SAE flat 2
237 164-0973 Adjustment bracket (OBSOLETE) 1
238 999-0120 Washer 3/8 SAE flat 1
239 999-0041 Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated 1
240 164-0951 Battery gasket (OBSOLETE) 1
241 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
242 999-0060 Washer 1/4 split lock plain finish 2
243 162-0001 12V 35Ah AGM battery 1 (for use with 164-0948 bracket)
244 164-0975 Negative battery cable (OBSOLETE) 1
245a 164-0948 5 inch battery clamp 1
245b 164-3120 3 3/4 inch battery clamp 1
246 164-0949 Positive battery cable (OBSOLETE) 1
247 N/A Not available 1 (Axle - old style)
248 999-0126 Washer 1/2 split lock 2 (old style)
249 999-0050 Nut 1/2-13 hex jam plain finish 2 (old style)
250 999-0048 Bolt 1/2-13 x 2 1/2 hex head grade 5 full thread 2 (old style)
251 164-1056 8 inch wheel (OBSOLETE) 2 (old style)
252 999-0126 Washer 1/2 split lock 2 (old style)
253 999-0049 Bolt 1/2-13 x 3 1/2 hex head grade 5 2 (old style)
254 164-1058 Wheel axle 2 (old style)
255 164-0961 Washer nylon 4 (old style)
256 999-0187 Washer 1/2 flat plain finish 2 (old style)
258 999-0024 Washer 5/16 flat stainless steel 4 (old style)
259 999-0016 Washer 1/4 flat plain finish 2 (old style)
260 999-0060 Washer 1/4 split lock plain finish 2 (old style)
261 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2 (old style)
262 164-1060 Dolly wheel axle (OBSOLETE) 1 (old style)
263 164-1063 Tank locator (OBSOLETE) 1 (on old units and Vac-Trac models only, newer standard units have tank locator welded on)
264 999-0060 Washer 1/4 split lock plain finish 2
265 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
267 164-3117 Curved spring washer 2 (20 inch Vac-Trac model)
N/S 991-1703 Helicoil M6 X 1.0
N/S 991-1702 5/16-18 x 1.5 Thread inserts
N/S 992-0018 Dust control kit for 27 inch buffer 1
N/S 991-1705 M8-1.25 helicoils
N/S 991-1704 Helicoil 3/8 X16
N/S 991-1503 Bearing
