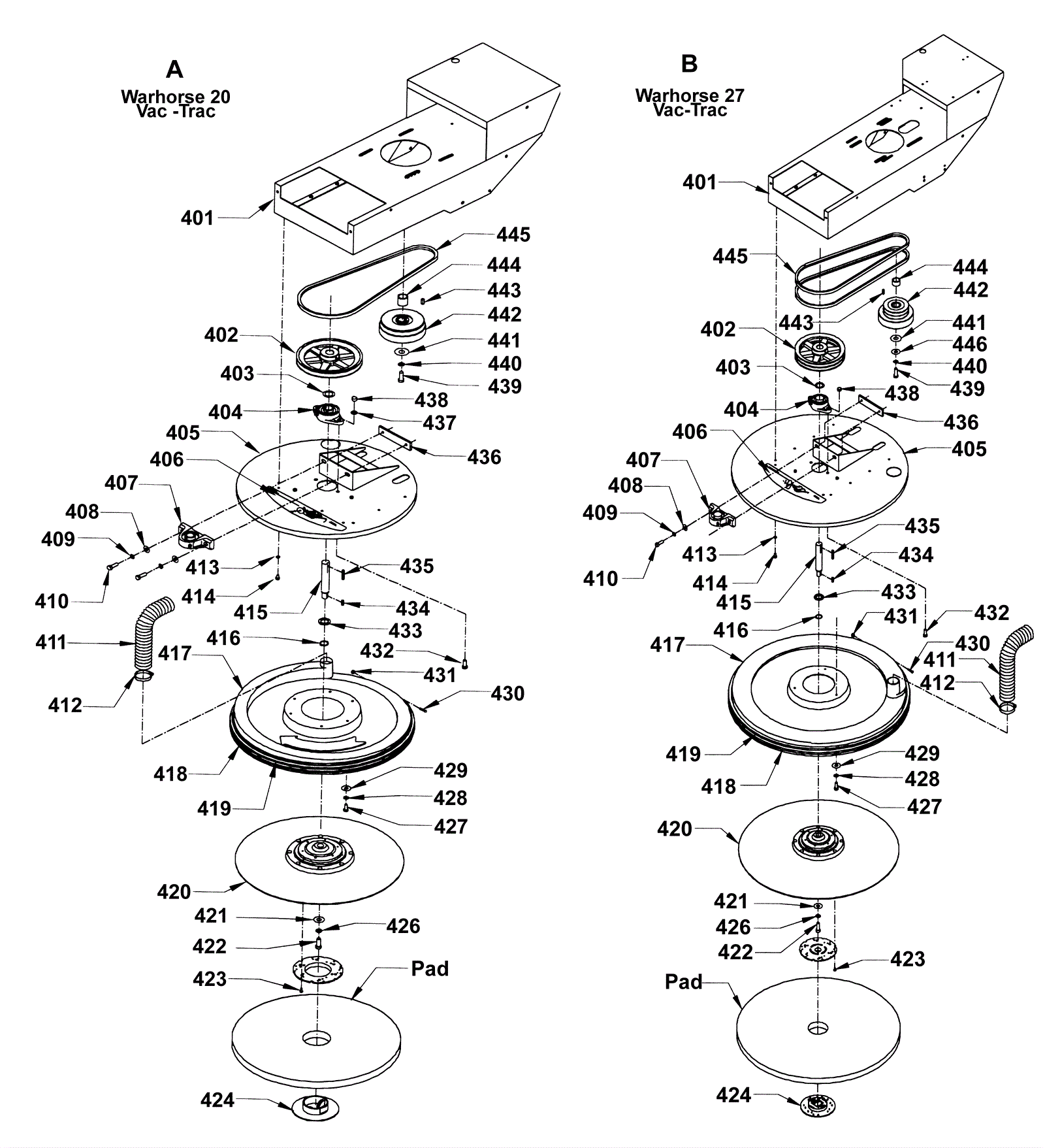

Pad Driver Assembly

#PartDescription ReqNotesAvailability
401a 164-3097 20 inch deck (standard and Vac-Trac) (OBSOLETE) 1 (20 and 21 inch)
401b N/A Not available 1 27 inch deck (vac-trac)
402a N/A Not available 1 (20 and 21 inch)(driven pulley)
402b 164-1072 Driven pulley 1 (27 inch)
403 164-1015 Washer 1 x .13 thick flat 1
404 164-1016 Lower driven bearing 1
405a 164-3098 20 inch skirt (Vac-Trac) (OBSOLETE) 1 (20 and 21 inch)
405b N/A Not available 1 (27 inch skirt - Vac-Trac)
406 164-0907 Decal kit (OBSOLETE) 1
407 164-1018 Bearing 1
408 164-0941 Washer 13/32 x 13/16 1
409 999-0034 Washer 3/8 split lock plain finish 2
410 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
411 164-3099 2 inch hose (Vac-Trac) 1
412 997-2003 Hose clamp 1
413 999-0060 Washer 1/4 split lock plain finish 8
414 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 8
415 164-3122 Driven shaft (Vac-Trac) 1
416 164-1021 External retaining ring 1
417a 164-3100 20 inch Flexiwall shield assembly 1 (20 and 21 inch)
417b 164-3104 27 inch Flexiwall shield assembly with bumper and strap 1 (27 inch)
418a 164-3101 20 inch bumper 1 (20 and 21 inch)
418b 164-3106 27 inch bumper 1 (27 inch)
419a 164-3102 20 inch bumper strap 1 (20 and 21 inch)
419b 164-3105 27 inch bumper strap 1 (27 inch)
420a 164-4332 Flex pad driver- assembly/balance 1 (20 and 21 inch)
420b 164-4012 27 inch pad driver assm flex w/centerlok & screws 1 (27 inch)
421 999-0033 Washer 7/16 SAE flat 1
422 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 1
423 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 3 (screws to hold pad holder to pad driver, other screws for aluminum hub included with pad driver)
424a 991-2202 Big mouth pad holder set (blue) 1
424b 991-2203 Big mouth pad holder male thread portion 1
424c 991-2201 Center-Lok II pad holder - right hand thread (black) 1 (NON-OEM)
424d 991-2205 Deep lock ring and pad grip ring 1 (NON-OEM)
424e 991-2214 Center-Lok II pad holder - left hand thread (red) 1 (NON-OEM)
426 999-0034 Washer 3/8 split lock plain finish 1
427 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 3
428 999-0060 Washer 1/4 split lock plain finish 3
429 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 3
430 999-0009 Screw 10-24 x 1 round head slotted zinc plated 1
431 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
432 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
433 164-1015 Washer 1 x .13 thick flat 1
434 164-1029 Square keyway 1
435 164-0923 Square keyway 1
436 164-1032 Tapping plate 1
437 164-0941 Washer 13/32 x 13/16 1 (20 inch)
438 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
439a 999-0022 Bolt M10-1.5 x 30mm hex head full thread 1 (20 inch)
439b 999-0043 Bolt 7/16-20 x 1 1/4 hex head grade 5 zinc plated 1 (27 inch)
440a 999-0671 Washer M10 split lock plain finish 1 (20 and 21 inch)
440b 999-0044 Washer 7/16 medium split lock 1 (27 inch)
441a 999-0035 Washer 3/8 x 1 1/2 fender 1 (20 and 21 inch)
441b 999-0187 Washer 1/2 flat plain finish 1 (27 inch)
442a 164-0922 Centrifugal clutch (OBSOLETE) 1 (20 and 21 inch)
442c 164-1042 Drive clutch (OBSOLETE) 1 (27 inch)
443 164-0923 Square keyway 1
444a 164-0924 Motor shaft collar 1 (20 and 21 inch)
444b 164-1043 Motor shaft collar 1 (27 inch)
445a 991-0036 BX41 Belt 1
445b 991-0010 27 inch drive belt 2
446 999-0033 Washer 7/16 SAE flat 1 (27 inch)
