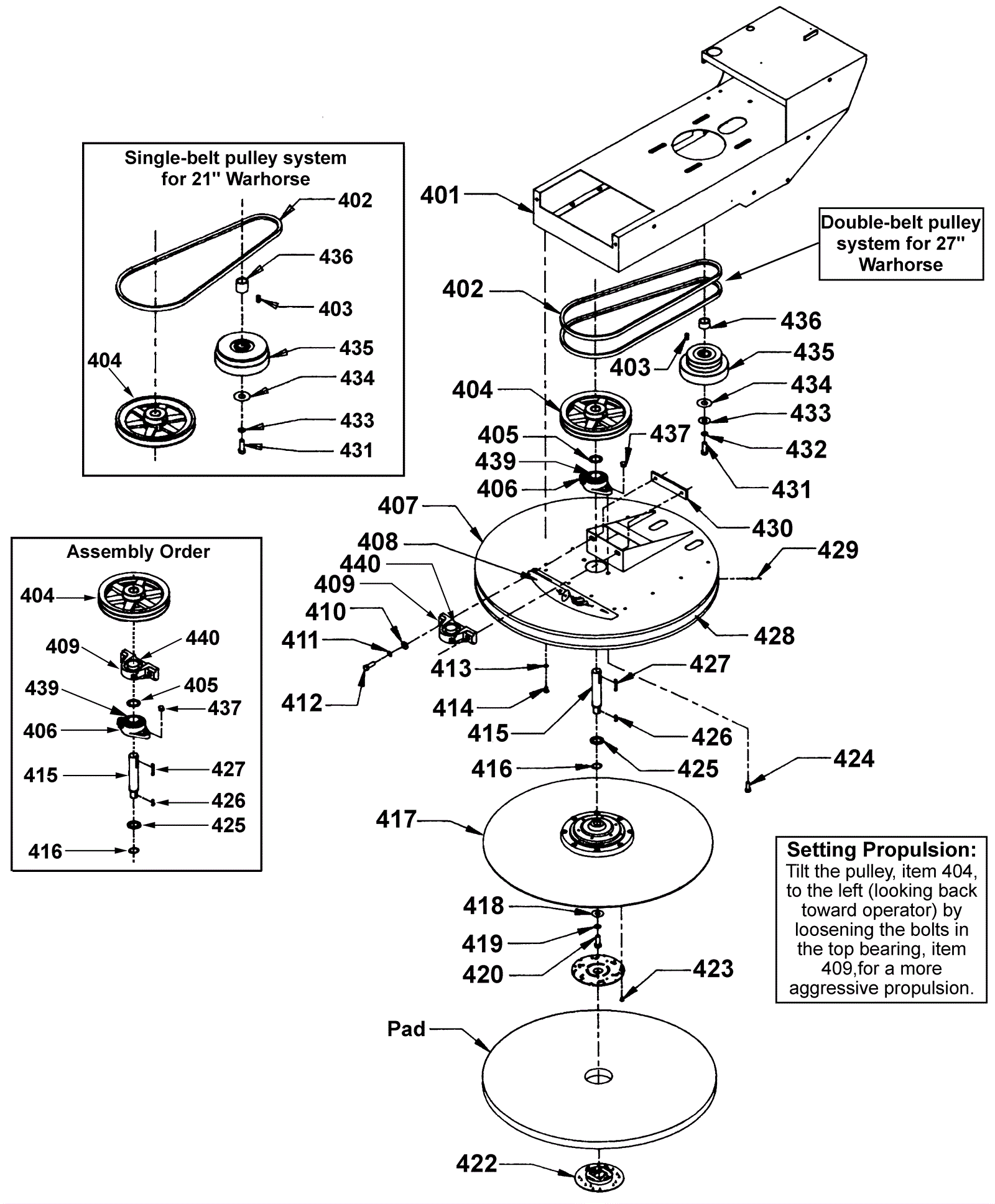

Warhorse 21 Onan 14 Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
401a 164-3097 20 inch deck (standard and Vac-Trac) (OBSOLETE) $587.79 1 usually ships 1-5 days
401b 164-1052 27 inch deck (standard) (OBSOLETE) $611.60 1 usually ships 1-5 days
402a 991-0036 BX41 Belt $22.00 1 usually ships 3-5 days
402b 991-0010 27 inch drive belt $34.60 2 ships same day
403 164-0923 Square keyway $5.28 1 ships same day
404a N/A Not available Call for price 1 (20 and 21 inch)(driven pulley) usually ships 3-26 days
404b 164-1072 Driven pulley $177.98 1 (27 inch) (Includes 404c, 2 bolts and 1 bushing) usually ships 18-33 days
404c 164-6571 Double groove sheave $49.83 1 usually ships 18-33 days
405 164-1015 Washer 1 x .13 thick flat $2.51 1 usually ships 18-33 days
406 164-1016 Lower driven bearing $62.21 1 ships same day
407a 164-1017 21 inch skirt (OBSOLETE) $160.16 1 usually ships 1-5 days
407b 164-1073 27 inch skirt (OBSOLETE) $520.15 1 usually ships 1-5 days
408 164-0907 Decal kit (OBSOLETE) $38.28 1 usually ships 1-5 days
409 164-1018 Bearing $31.52 1 ships same day
410 164-0941 Washer 13/32 x 13/16 $5.89 1 ships same day
411 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
412 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
413 999-0060 Washer 1/4 split lock plain finish $0.99 12 ships same day
414 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 12 ships same day
415 164-1020 Driven shaft (standard) $78.27 1 usually ships 18-33 days
416 164-1021 External retaining ring $3.43 1 usually ships 18-33 days
417a 164-1022 21 inch pad driver assembly flex (OBSOLETE) $281.22 1 usually ships 1-5 days
417b 164-4012 27 inch pad driver assm flex w/centerlok & screws (OBSOLETE) $415.28 1 usually ships 18-33 days
418 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
419 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
420 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 1 ships same day
422 991-2206 Center-Lok 3 pad holder $35.50 1 ships same day
423 164-0510 Mounting screws (pad holder base) $4.82 3 usually ships 18-33 days
424 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
425 164-1015 Washer 1 x .13 thick flat $2.51 1 usually ships 18-33 days
426 164-1029 Square keyway $13.22 1 usually ships 18-33 days
427 164-0923 Square keyway $5.28 1 ships same day
428 164-1030 Bumper (OBSOLETE) $20.57 1 usually ships 1-5 days
429 164-0693 Pop rivet 1/8 x 1/2 dome head $5.89 6 usually ships 1-5 days
430 164-1032 Tapping plate $29.04 1 usually ships 1-5 days
431a 999-0022 Bolt M10-1.5 x 30mm hex head full thread $0.99 1 (20 and 21 inch) ships same day
431b 999-0043 Bolt 7/16-20 x 1 1/4 hex head grade 5 zinc plated $1.14 1 (27 inch) ships same day
432a 999-0671 Washer M10 split lock plain finish $0.99 1 (20 and 21 inch) ships same day
432b 999-0044 Washer 7/16 medium split lock $0.99 1 (27 inch) ships same day
433 999-0033 Washer 7/16 SAE flat $0.99 1 (27 inch) ships same day
434a 999-0035 Washer 3/8 x 1 1/2 fender $0.99 1 (20 and 21 inch) ships same day
434b 999-0187 Washer 1/2 flat plain finish $0.99 1 (27 inch) ships same day
435a 164-0922 Centrifugal clutch (OBSOLETE) $509.03 1 (20 and 21 inch) usually ships 18-33 days
435c 164-1042 Drive clutch (OBSOLETE) $600.99 1 (27 inch) usually ships 18-33 days
436a 164-0924 Motor shaft collar $17.71 1 (20 and 21 inch) usually ships 1-5 days
436b 164-1043 Motor shaft collar $23.60 1 (27 inch) usually ships 18-33 days
437a 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 (20 and 21 inch) ships same day
437b 999-0032 Washer 3/8 USS flat plain finish $2.42 2 (27 inch) ships same day
439 999-0667 Screw 1/4-28 x 3/16 knurled point socket set plain finish $0.99 2 ships same day
440 999-0667 Screw 1/4-28 x 3/16 knurled point socket set plain finish $0.99 4 ships same day
N/S 999-0668 Screw 5/16-18 x 3/8 socket knurled point set plain finish $0.99 1 ships same day
