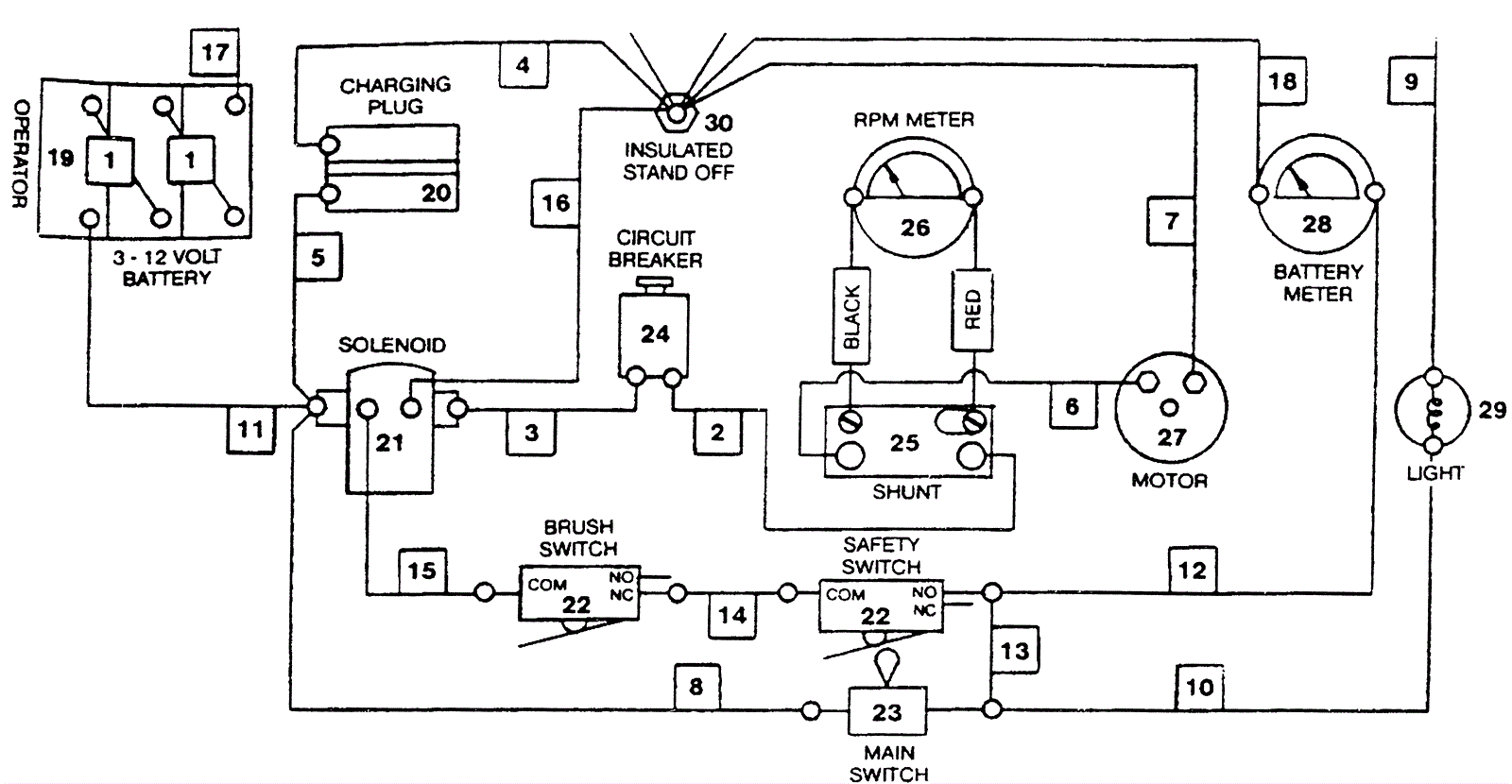

CHARGER 3000BP Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
19 162-0002 12V 185Ah wet battery (SNSR) $646.73 3 ships same day
19 162-0047 12V 215Ah AGM battery (Group J185) $907.50 3 ships same day
1a 164-3072 Battery cable (OBSOLETE) $30.58 2 (clamp battery posts) usually ships 1-5 days
1b 998-0010 Battery jumper cable - ring type (red) $4.84 1 (bolt battery posts) ships same day
1c 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 1 (NONOEM) usually ships 5-16 days
2 164-3073 Circuit breaker lead (OBSOLETE) $8.86 1 (to shunt) usually ships 1-5 days
3 164-0671 Circuit breaker lead $11.11 1 (to solenoid) usually ships 1-5 days
4 164-3074 Negative charger lead (OBSOLETE) $28.33 1 usually ships 1-5 days
5 164-3075 Positive charger lead (OBSOLETE) $23.82 1 usually ships 1-5 days
6 164-0672 Positive lead (OBSOLETE) $29.30 1 (shunt to motor) usually ships 1-5 days
7 164-3076 Negative lead (OBSOLETE) $18.15 1 (stand off to motor) usually ships 1-5 days
8 164-3077 Main switch to solenoid lead (OBSOLETE) $5.28 1 usually ships 1-5 days
9 164-3078 Stand off to light lead (OBSOLETE) $4.84 1 usually ships 1-5 days
10 164-3079 Light to main switch lead (OBSOLETE) $4.09 1 usually ships 1-5 days
12 N/A Not available Call for price 1 (Battery meter to safety switch lead) usually ships 3-26 days
13 164-3082 Main switch to safety switch lead $5.78 1 usually ships 1-5 days
14 164-3083 Brush switch to safety switch lead (OBSOLETE) $5.79 1 usually ships 1-5 days
15 N/A Not available Call for price 1 (Brush switch to solenoid lead) usually ships 3-26 days
16 164-3085 Stand off to solenoid lead (OBSOLETE) $3.63 1 usually ships 1-5 days
17 164-3086 Negative battery to stand off lead (OBSOLETE) $15.57 1 usually ships 1-5 days
18 164-3087 Stand off to battery meter lead (OBSOLETE) $4.40 1 usually ships 1-5 days
20a 991-2105 SB50 50amp charger plug with pins (gray) $6.72 1 ships same day
20b 164-3088 50 amp charger plug SB50 with wires (OBSOLETE) $37.46 1 usually ships 1-5 days
21 164-0027 36V solenoid contactor $213.61 1 usually ships 8-23 days
22 164-0026 Snap switch $30.64 2 usually ships 8-23 days
23 164-0023 Toggle switch $19.97 1 ships same day
24 991-1614 70amp circuit breaker $155.38 1 usually ships 3-12 days
25 164-3029 Shunt $74.97 1 usually ships 8-23 days
26 164-0024 RPM meter $128.54 1 usually ships 1-5 days
27a 164-3053 36V motor with boots $1,664.80 1 (3000BP) usually ships 1-5 days
27b 164-6404 36V motor with boots $892.82 1 (2000BP) usually ships 1-5 days
28 164-0022 Battery meter $120.95 1 usually ships 1-5 days
29 164-0283 Indicator light with clip (green) $22.50 1 usually ships 8-23 days
30 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
N/S 162-5062 36V 20amp battery charger with small SB50 gray plug $715.51 1 usually ships 4-5 days
