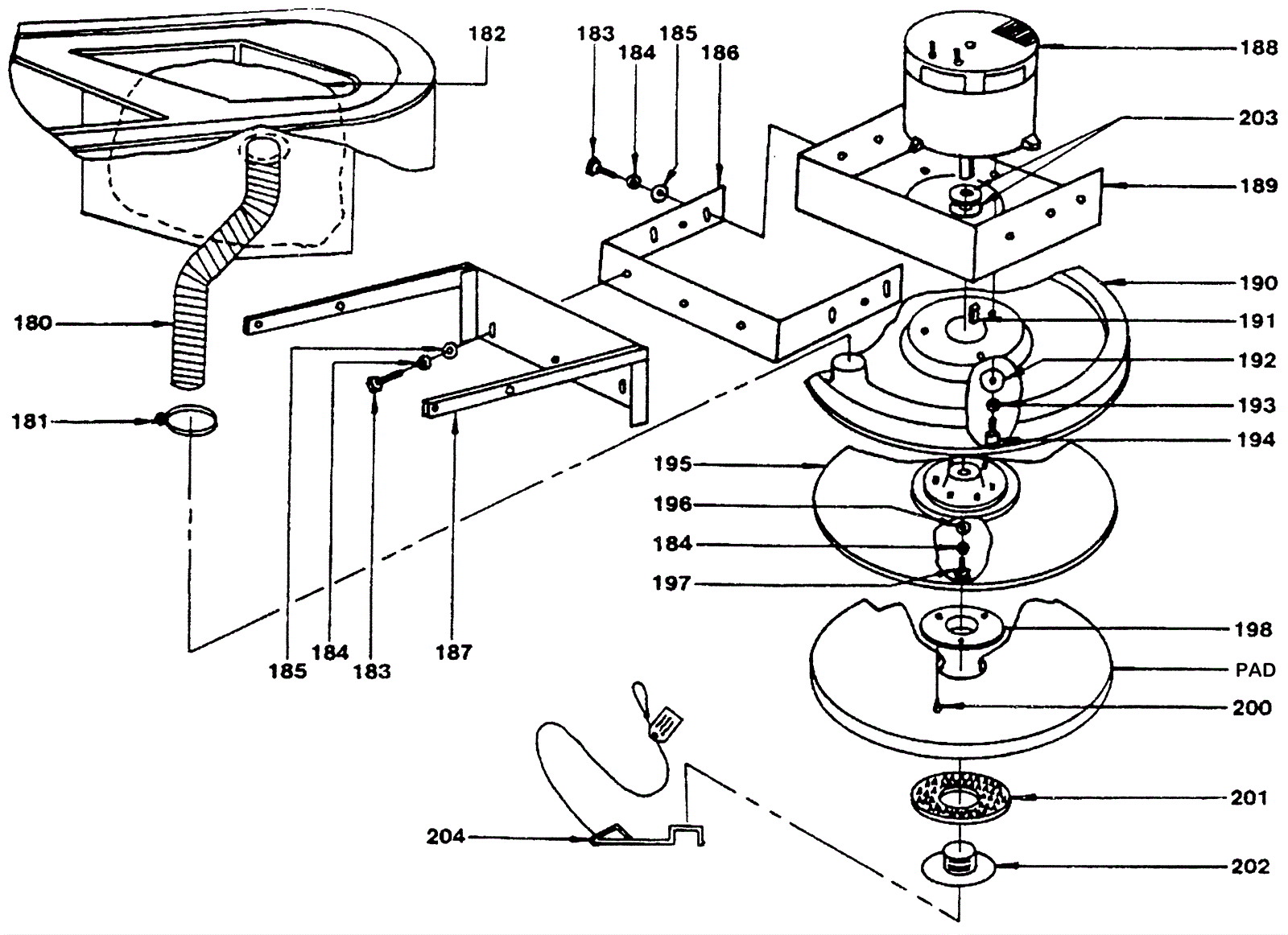

CHARGER 3000BP Deck Assembly

#PartDescriptionPriceReqNotesAvailability
180a 164-1101 Vacuum hose assembly with 2 inch cuff $69.52 1 (includes 180b) usually ships 8-23 days
180b 164-3049 2 inch cuff $23.98 1 usually ships 8-23 days
181 997-2003 Hose clamp $2.66 1 ships same day
182a 164-0032 Paper bag (pkg of 5) $31.96 1 (includes 182b) usually ships 8-23 days
182b 164-3050 Bag shelf (OBSOLETE) $11.83 1 usually ships 1-5 days
183 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 9 ships same day
184 999-0028 Washer 5/16 split lock plain finish $0.99 10 ships same day
185 999-0024 Washer 5/16 flat stainless steel $1.34 9 ships same day
186 164-6365 Pivot fork (OBSOLETE) $103.73 1 usually ships 8-23 days
187 164-3052 Pivot weldment $193.22 1 usually ships 1-5 days
188a 164-3053 36V motor with boots $1,664.80 1 (3000BP) usually ships 1-5 days
188b 164-6404 36V motor with boots $892.82 1 (2000BP) usually ships 1-5 days
189 164-3055 Motor mount $106.87 1 usually ships 1-5 days
190a 164-1083 Flexiwall shield with vacuum pickup (yellow) (OBSOLETE) $181.06 1 usually ships 8-23 days
190b 992-0001 Velcro loop (sold by the inch) $0.75 84 in usually ships 4-15 days
191 164-6781 Square keyway $5.89 1 usually ships 1-5 days
192 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 3 ships same day
193 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
194 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 3 ships same day
195 164-1105 Flexible pad driver assembly with dust cup $475.59 1 usually ships 1-5 days
196 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
197 999-0614 Bolt 5/16-24 x 7/8 hex head grade 5 zinc plated $0.99 1 ships same day
198a 991-2202 Big mouth pad holder set (blue) $17.75 1 ships same day
198b 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 ships same day
198c 991-2214 Center-Lok II pad holder - left hand thread (red) $21.69 1 ships same day
200 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 3 ships same day
201 164-3057 Pad grip ring $14.30 1 (use with 991-2205) usually ships 8-23 days
202a 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE) $18.90 1 (before SN 25F03145) usually ships 8-23 days
202b 991-2205 Deep lock ring and pad grip ring $21.53 1 (after SN 25F03145) ships same day
203 999-0863 Washer 3/4 x 14 gauge narrow bushing $0.99 2 ships same day
204 164-3058 Cup wrench $24.31 1 usually ships 1-5 days
