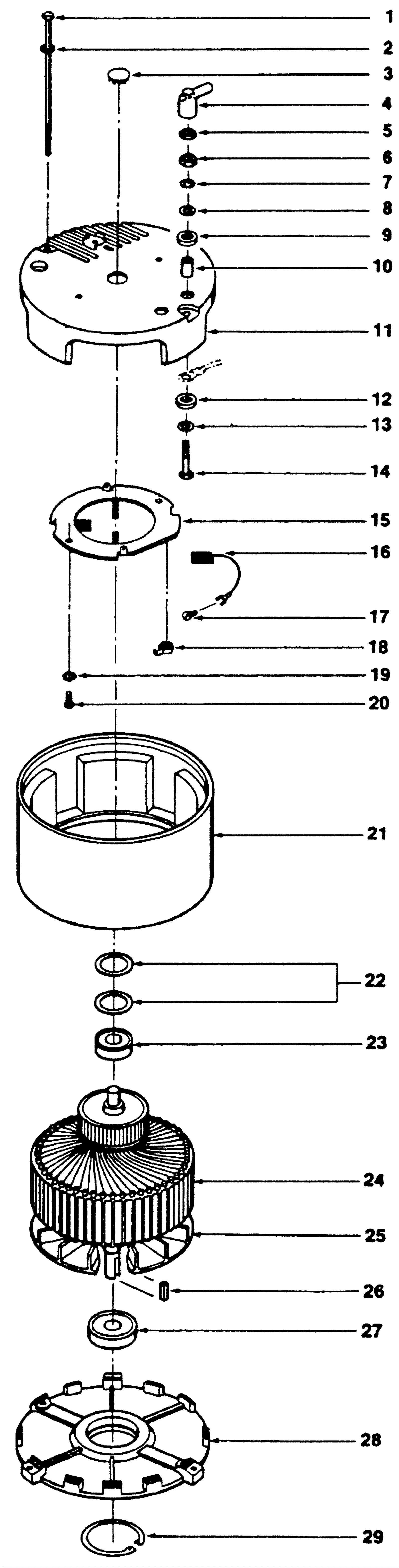

Brush Motor Assembly

#PartDescription ReqNotesAvailability
1 164-3059 Thru bolt (OBSOLETE) 2
2 999-0238 Washer 1/4 internal star lock zinc plated 2
3 N/A Not available 1 (Plug)
4 164-1598 Rubber terminal boot 2
5 999-0611 Nut 5/16-18 hex jam brass 2
6 999-0612 Nut 5/16-18 hex brass 1
7 999-0028 Washer 5/16 split lock plain finish 2
8 999-0024 Washer 5/16 flat stainless steel 2
9 164-3060 Insulation washer (OBSOLETE) 2
10 164-3061 Insulation spacer 2
11 164-3062 Top end bell 1
12 164-3060 Insulation washer (OBSOLETE) 2
13 999-0024 Washer 5/16 flat stainless steel 2
14 999-0613 Bolt 5/16-18 x 1 3/4 hex head brass 2
15 164-1112 Brush ring assembly 1
16 164-1113 Carbon brush (sold individually) 4
17 999-0174 Screw 10-32 x 3/8 pan head slotted brass 4
18 164-1114 Brush spring for Ohio motor 4
19 999-0089 Washer #10 internal star lock zinc plated 2
20 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 2
21 N/A Not available 1 (Frame with magnets)
22 N/A Not available 2 (Thrust washer)
23 164-0329 Top rotor bearing 1
24a 164-3066 Armature with bearings (OBSOLETE) 1 (2000BP)
24b N/A Not available 1 (Armature with bearings) (3000BP)
25 164-3068 Vent fan 1
26 164-6781 Square keyway 1
27 164-5290 Bottom bearing 1
28 164-3070 Bottom end bell 1
29 164-3071 Retaining ring (OBSOLETE) 1
