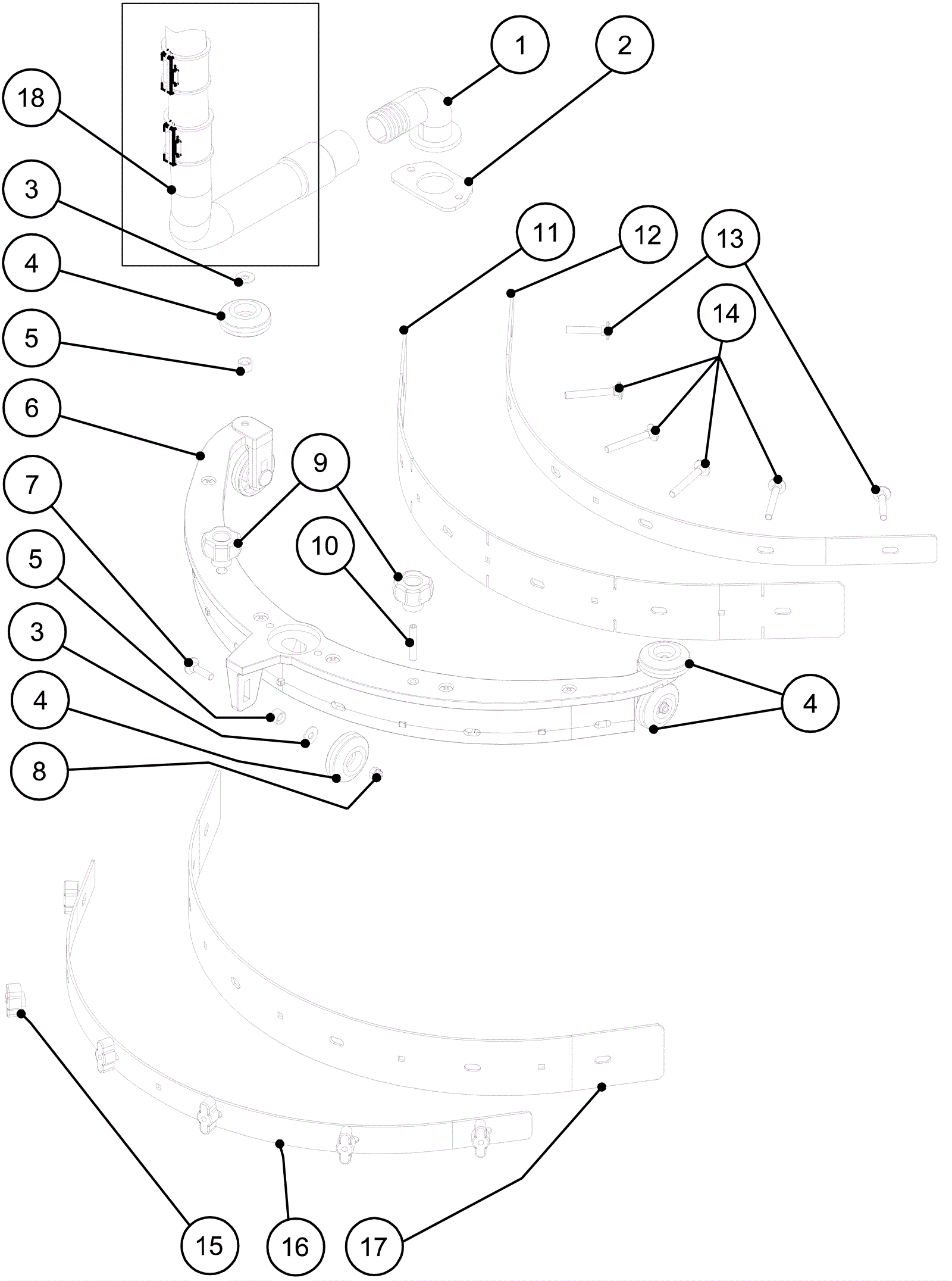

Squeegee Assembly

#PartDescription ReqNotesAvailability
2 164-9716 Retainer 1
3 164-8602 Washer 5
4 164-8321 Wheel 5
5 164-8603 Spacer 5
6 164-8604 Squeegee bracket 1
7 164-8605 Screw 3
8 164-8720 Nut 3
9 164-8607 Squeegee knob 2
10 164-8608 Screw 2
11a 164-9224 Front squeegee flap 1 (linatex)
11b 164-6826 Squeegee blade front 1 (urethane)
12 164-8609 Retaining band 1
13 164-8610 Screw 2
14 164-8611 Screw 4
15 164-8612 Knob 6
16 164-8613 Rear retaining band 1
17a 164-9223 Rear squeegee flap 1 (linatex)
17b 164-6827 Squeegee blade rear 1 (urethane)
18 164-7487 Vacuum hose 1
