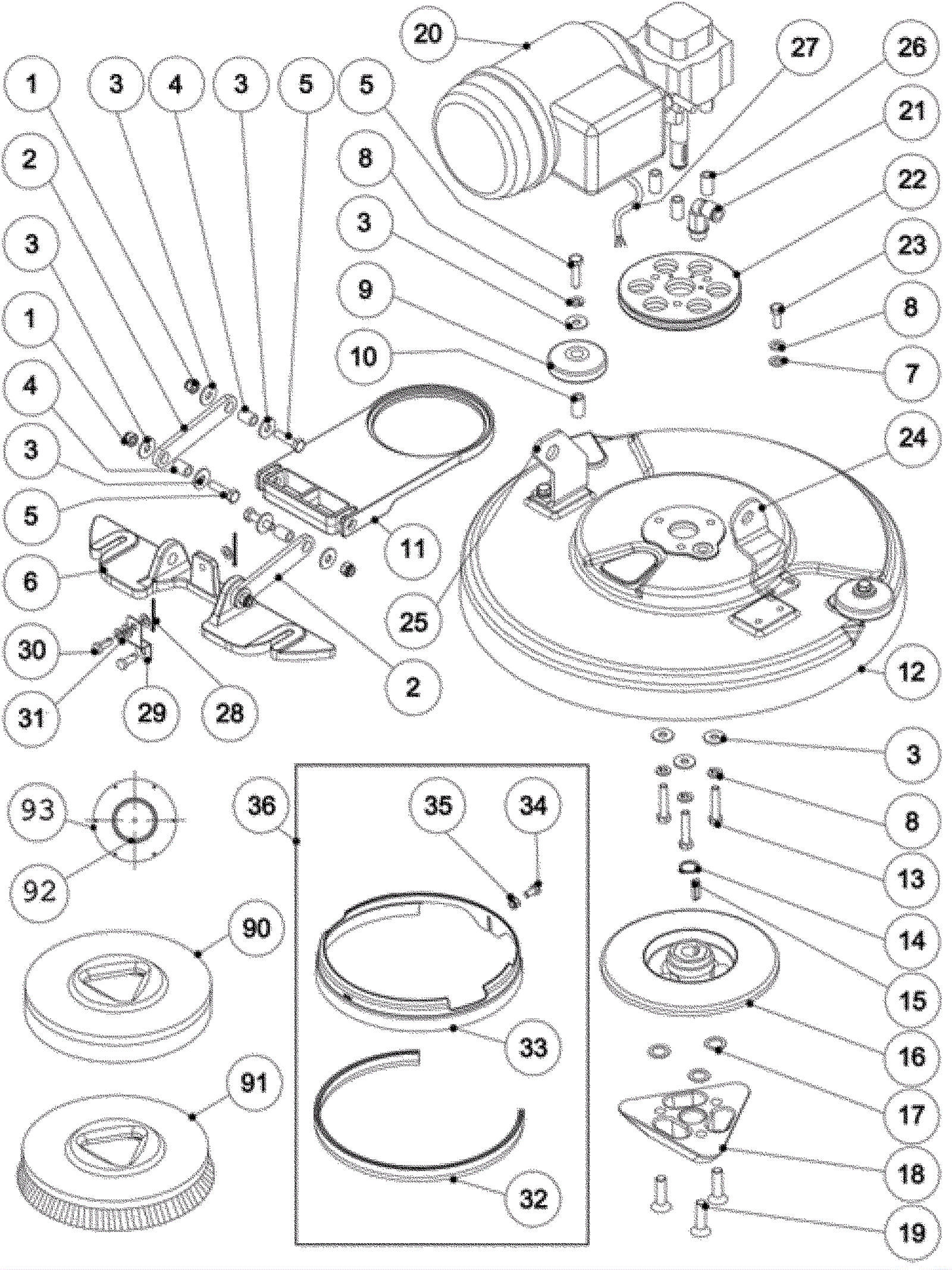

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
164-8635
|
Elbow connector |
4 |
|
|
2 |
164-9678
|
Bar |
2 |
|
|
3 |
164-8678
|
Washer |
13 |
|
|
4 |
164-8723
|
Bushing |
4 |
|
|
5 |
164-8724
|
Screw |
6 |
|
|
6 |
164-9681
|
Squeegee support |
1 |
|
|
7 |
164-8651
|
Washer |
4 |
|
|
8 |
164-8652
|
Washer |
9 |
|
|
9 |
164-8653
|
Bumper wheel |
2 |
|
|
10 |
164-9683
|
Spacer |
2 |
|
|
11 |
164-8654
|
Bracket |
1 |
|
|
12 |
164-8655
|
Brush housing |
1 |
|
|
13 |
164-8677
|
Screw |
3 |
|
|
14 |
164-8657
|
Snap ring |
1 |
|
|
15 |
164-8658
|
Tooth keyway |
1 |
|
|
16 |
164-8674
|
Hub |
1 |
|
|
17 |
164-8659
|
Thrust washer |
3 |
|
|
18 |
164-8660
|
Adapter plate |
1 |
|
|
19 |
164-8661
|
Screw |
3 |
|
|
20 |
164-9692
|
Gear motor |
1 |
|
|
21 |
164-9693
|
Connector |
1 |
|
|
22 |
164-9694
|
Fulcrum |
2 |
|
|
23 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
24a |
164-9696
|
Angular |
1 |
(before 2021) |
|
24b |
164-9946
|
Offset bracket |
1 |
(after 2021) |
|
25a |
164-9697
|
Angular |
1 |
(before 2021) |
|
25b |
164-9696
|
Angular |
1 |
(after 2021) |
|
26 |
164-9698
|
Spacer |
3 |
|
|
27 |
164-9699
|
Motor cable |
1 |
|
|
28 |
164-8668
|
Split pin |
2 |
|
|
29 |
164-8665
|
Coupling |
1 |
|
|
30 |
164-8666
|
Pin |
2 |
|
|
31 |
164-9694
|
Fulcrum |
4 |
|
|
32 |
164-8669
|
Skirt |
1 |
|
|
33 |
N/A
|
Not available |
1 |
(carter) |
|
34 |
164-9706
|
Screw |
1 |
|
|
35 |
164-8672
|
Nut |
1 |
|
|
36 |
164-8670
|
Complete skirt assembly |
1 |
(includes 32, 33, 34, 35) |
|
90 |
164-7471
|
Pad driver |
1 |
|
|
91a |
164-8207
|
.5mm bristle brush |
1 |
|
|
91b |
164-8205
|
.7mm bristle brush |
1 |
|
|
91c |
164-8673
|
.9mm bristle brush |
1 |
|
|
92 |
164-9713
|
Pad lock |
1 |
|
|
93 |
164-9714
|
Pad support |
1 |
|
|
