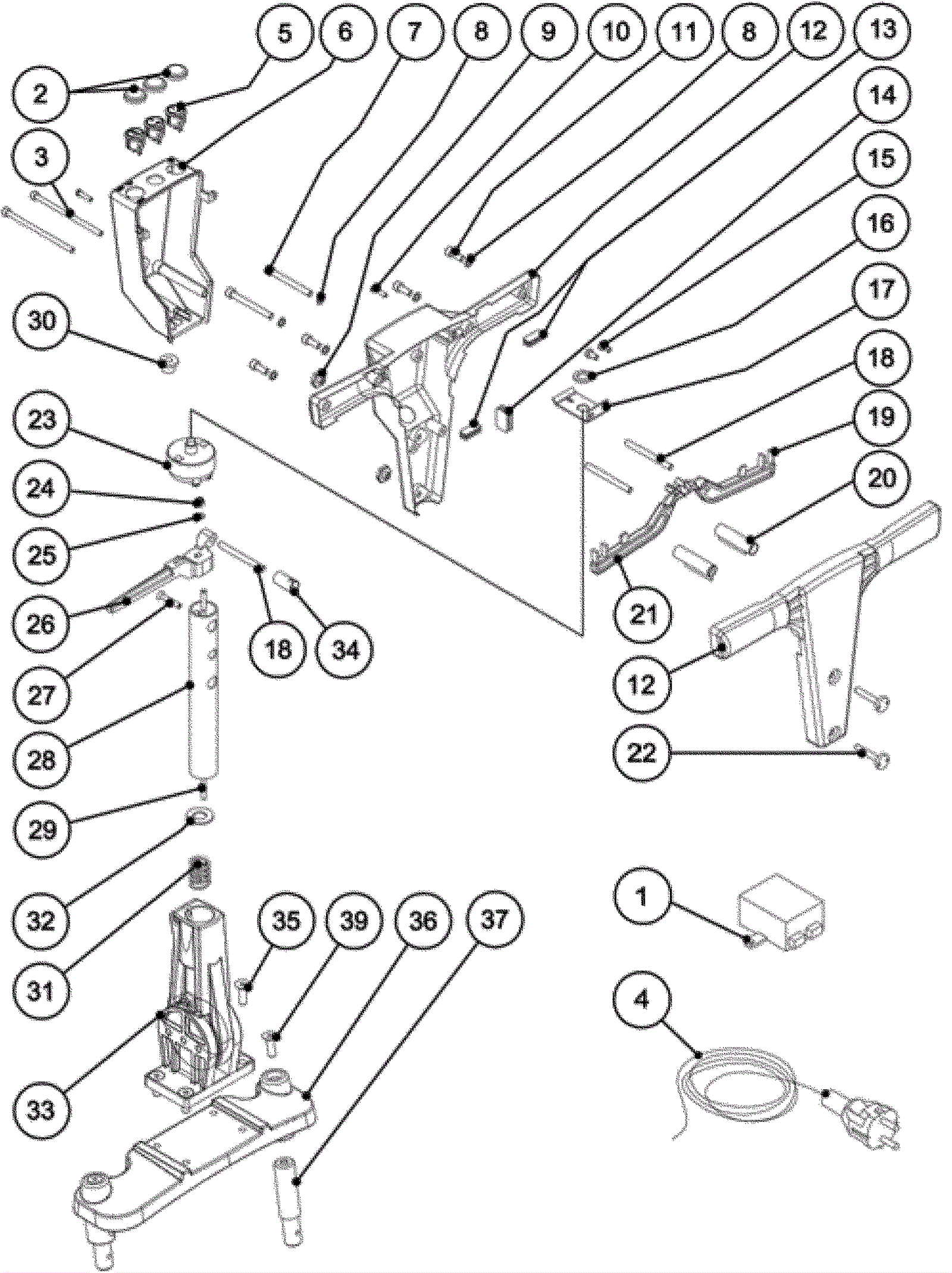

Handle Assembly

#PartDescription ReqNotesAvailability
1 164-9642 RFI filter network 1
2 164-8696 Switch cover 3
3 164-8738 Screw 2
4 164-9645 Power cord 1
5 164-9646 Switch 0-1 3
6 164-9647 Panel 1
7 164-9648 Screw 2
8 164-8700 Washer 6
9 164-8701 Nut 2
10 164-8702 Screw 2
11 164-8703 Screw 4
12 164-8704 2 piece handle 1
13 164-8705 Cap 2
14 164-8711 Cap 1
15 164-9655 Screw 2
16 164-9656 Washer 1
17 164-8733 Support bracket 1
18 164-8712 Pin 3
19 164-8706 Lift Lever 1
20 164-8713 Spacer 2
21 164-8707 Right lever 1
22 164-8708 Screw 2
23 164-8709 Switch 1
25 164-8602 Washer 1
26 164-8191 Handle adjust lever 1
27 164-8721 Screw 1
28 164-8710 Tube 1
29 164-8740 Bar 1
30 164-8741 Grommet 1
31 164-8736 Spring 1
32 164-8737 Washer 1
33 164-8714 Articualted joint 1
34 164-8715 Spacer 1
35 164-9674 Screw 2
36 164-8716 Plate 6
37 164-9676 Pin 2
39 164-8718 Screw 4
