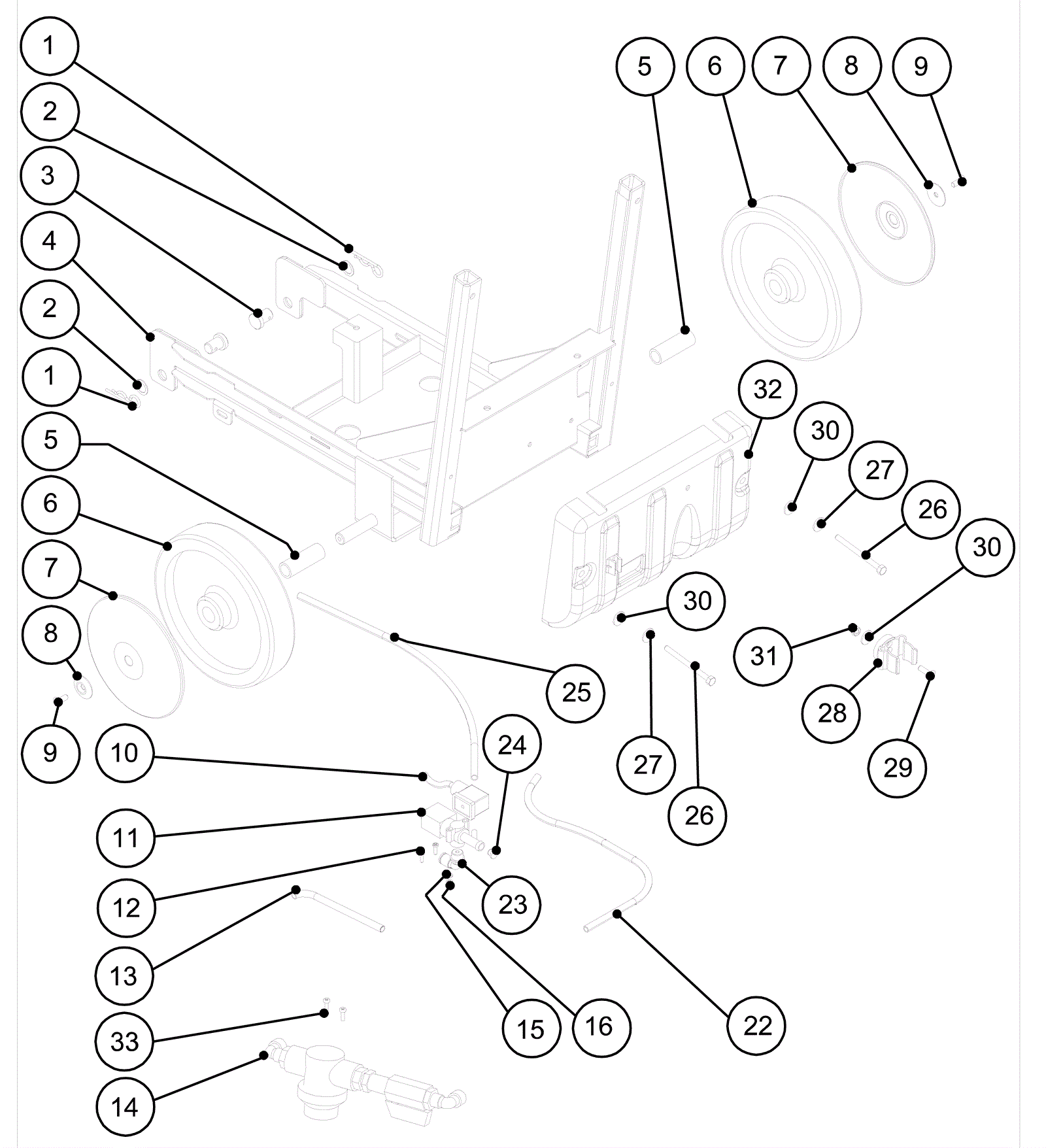

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
164-8641
|
Split pin |
2 |
|
|
2 |
164-9578
|
Washer thrust |
2 |
|
|
3 |
164-8639
|
Pin |
2 |
|
|
4 |
164-9580
|
Chassis |
1 |
|
|
5 |
164-8630
|
Wheel tube |
2 |
|
|
6 |
164-8455
|
Wheel |
2 |
|
|
7 |
164-8644
|
Wheel cover |
2 |
|
|
8 |
164-9583
|
Washer |
2 |
|
|
9 |
164-8643
|
Screw |
2 |
|
|
10 |
164-9585
|
Solenoid valve cable |
1 |
|
|
11 |
164-9576
|
Solenoid valve |
1 |
|
|
12 |
164-9587
|
Screw |
2 |
|
|
13 |
164-9588
|
Hose |
7 inch |
|
|
14a |
164-8225
|
Flow regulator and filter kit |
1 |
|
|
14b |
164-9942
|
Solution filter |
1 |
|
|
15 |
164-8647
|
Washer |
2 |
|
|
16 |
164-8633
|
Nut |
2 |
|
|
22 |
164-8637
|
360mm solution hose |
2 foot |
|
|
23 |
164-8635
|
Elbow connector |
1 |
|
|
24 |
164-8646
|
Cap |
1 |
|
|
25 |
164-8638
|
560mm solution hose |
2 foot |
|
|
26 |
164-8677
|
Screw |
2 |
|
|
27 |
164-8652
|
Washer |
2 |
|
|
28 |
164-8599
|
Clamp |
1 |
|
|
29 |
164-9599
|
Screw |
1 |
|
|
30 |
164-8678
|
Washer |
3 |
|
|
32 |
164-9602
|
Cover |
1 |
|
|
33 |
164-8632
|
Screw |
2 |
|
|
