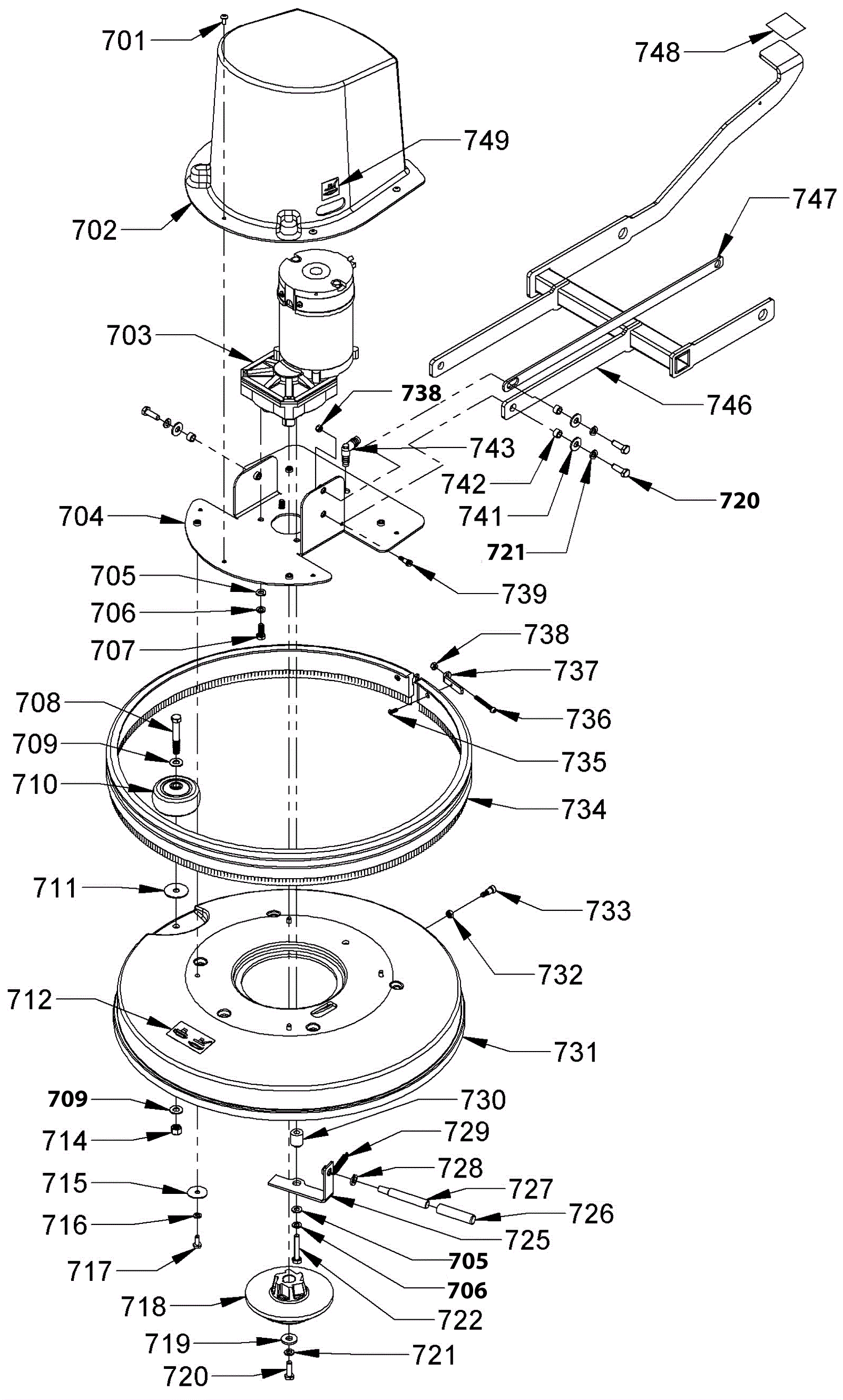

Wrangler 2012DB Brush Head Assembly

#PartDescriptionPriceReqNotesAvailability
701 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 5 ships same day
702 164-9905 Motor cover Call for price 1 usually ships 18-33 days
703 164-9906 Brush motor $782.80 1 usually ships 18-33 days
704 164-9907 Motor plate Call for price 1 usually ships 18-33 days
705 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
706 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
707 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 3 ships same day
708 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
709 164-0941 Washer 13/32 x 13/16 $5.89 2 ships same day
710 164-9910 Wheel assembly $10.40 1 usually ships 18-33 days
711 999-0035 Washer 3/8 x 1 1/2 fender $0.99 1 ships same day
712 164-9911 Decal Call for price 1 usually ships 18-33 days
714 164-9796 Nut 3/8-16 hex nylok insert (pkg of 5) $9.10 1 usually ships 18-33 days
715 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 4 ships same day
716 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
707 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch $4.94 4 ships same day
718 164-9912 Pad driver/brush clutch casting $97.68 1 usually ships 18-33 days
719 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
720 164-9804 Bolt 5/16-18 x 1 hex head (pkg of 5) $9.79 4 usually ships 18-33 days
721 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
722 999-1426 Screw M8-1.25 x 45mm hex head stainless steel $3.04 1 ships same day
725 164-9913 Brush stop latch $15.62 1 usually ships 18-33 days
726 164-2524 Squeegee handle grip $2.57 1 usually ships 18-33 days
727 164-2490 Squeegee lift handle $12.54 1 ships same day
728 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
729 164-0981 Spring $5.61 1 usually ships 18-33 days
730 164-9914 Spacer $6.05 1 usually ships 18-33 days
731 164-9915 20 inch deck skirt $69.63 1 usually ships 18-33 days
732 164-6796 Nut 1/4-20 hex thin with nylok insert $6.34 1 usually ships 18-33 days
733 164-1171 Bolt 5/16 x 3/8 socket head shoulder $11.22 1 usually ships 18-33 days
734 164-9916 Bumper brush $231.85 1 usually ships 18-33 days
735 164-9772 Screw #10-24 x 1/2 flat head (pkg of 10) $6.34 2 usually ships 18-33 days
736 999-0642 Screw 10-24 x 1 3/4 round head phillips stainless steel $0.99 1 ships same day
737 164-9917 Bracket $10.85 2 usually ships 18-33 days
738 164-5000 Hex nut (pkg of 10) $6.34 2 ships same day
739 164-9066 Bolt 1/4 x 3/8 10-24 socket head shoulder $8.64 1 usually ships 18-33 days
741 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
742 164-9901 Spacer $5.70 3 usually ships 18-33 days
743 164-9918 Elbow fitting $3.37 1 usually ships 18-33 days
746 164-9899 Deck lift $410.58 1 usually ships 18-33 days
747 164-9902 Guide arm Call for price 1 usually ships 18-33 days
748 164-9919 Anti-slip tape $3.50 1 usually ships 18-33 days
749 164-9920 Decal Call for price 1 usually ships 18-33 days
