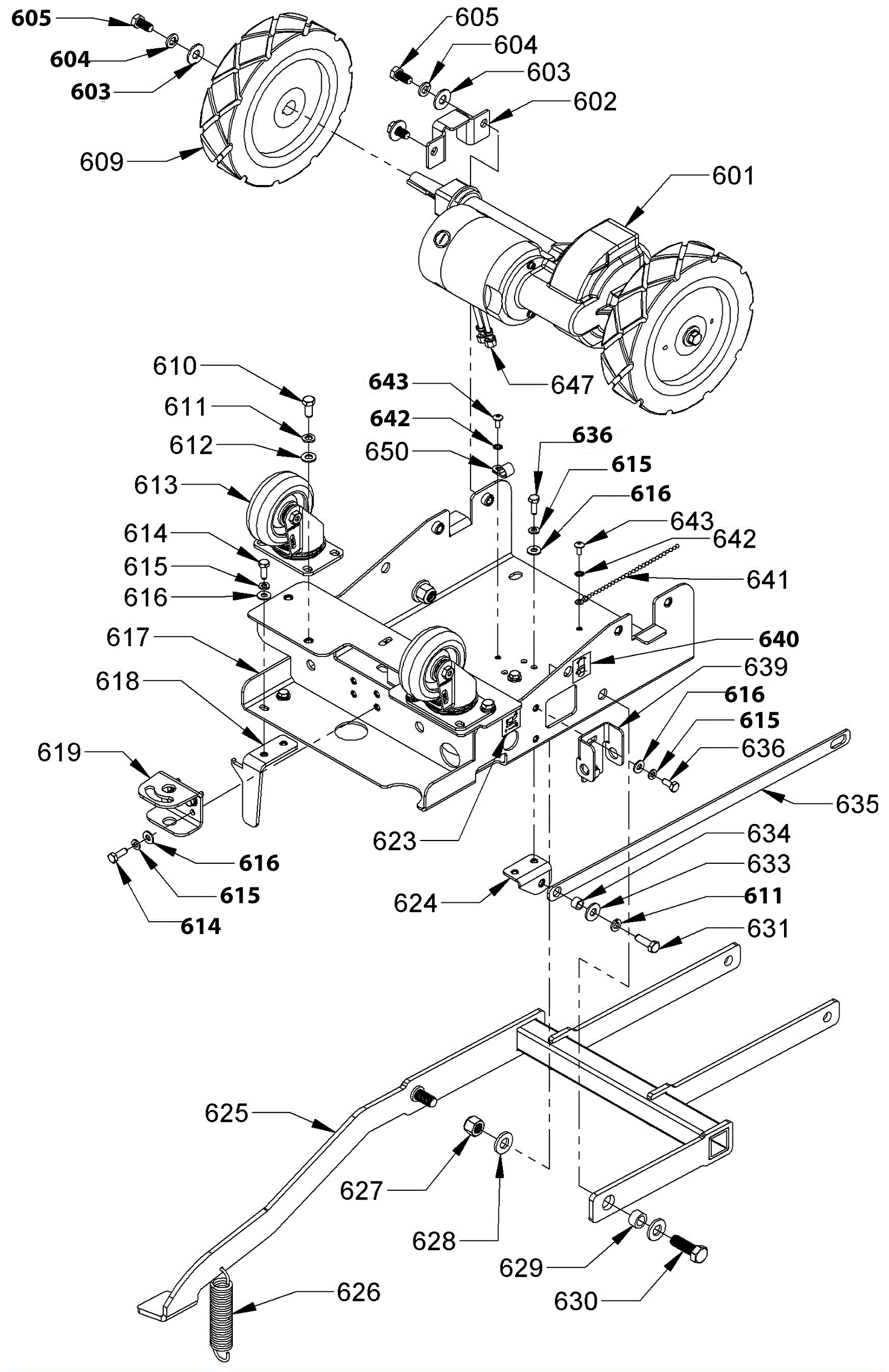

Wrangler 2012DB Frame Assembly

#PartDescriptionPriceReqNotesAvailability
601 164-4668 Transaxle $1,318.23 1 usually ships 17-22 days
602 164-4669 Transaxle mount bracket Call for price 2 usually ships 17-22 days
603 164-9794 Washer thick sae flat (pkg of 2) $10.34 6 usually ships 17-22 days
604 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
605 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 6 ships same day
609 164-8173 Drive wheel $395.90 2 usually ships 17-22 days
610 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
611 999-0028 Washer 5/16 split lock plain finish $0.99 5 ships same day
612 164-9775 Washer (pkg of 10) $9.63 4 usually ships 17-22 days
613 164-7995 Swivel caster wheel $70.00 2 (includes 614-616) usually ships 17-22 days
614 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch $4.94 6 ships same day
615 999-0060 Washer 1/4 split lock plain finish $0.99 10 ships same day
616 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 10 ships same day
617 164-9856 Frame Call for price 1 usually ships 17-22 days
618 164-9896 Deck lift stop Call for price 1 usually ships 17-22 days
619 164-9897 Squeegee pivot bracket $23.02 1 ships same day
623 164-4670 Ball valve decal $7.22 1 usually ships 17-22 days
624 164-9900 Guide arm bracket Call for price 1 usually ships 17-22 days
625 164-9899 Deck lift $512.05 1 usually ships 17-22 days
626 164-9859 Pressure spring $7.18 1 usually ships 17-22 days
627 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 2 ships same day
628 164-9072 Flat washer (pkg of 5) $6.33 2 usually ships 17-22 days
629 164-0841 Bushing $6.41 2 usually ships 17-22 days
630 164-9068 Hex bolt $8.64 2 usually ships 17-22 days
631 164-9804 Bolt 5/16-18 x 1 hex head (pkg of 5) $9.79 1 usually ships 17-22 days
633 999-0024 Washer 5/16 flat stainless steel $1.34 1 usually ships 19-32 days
634 164-9901 Spacer $4.31 1 usually ships 17-22 days
635 164-9902 Guide arm $21.87 1 usually ships 17-22 days
636 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
639 164-9903 Solution valve mount bracket Call for price 1 usually ships 17-22 days
640 164-9922 Decal $8.42 1 usually ships 17-22 days
641a 164-1503 8 inch round bead chain $3.20 0.8 in (includes 641b) usually ships 1-5 days
641b 164-1502 End coupling $2.70 1 usually ships 1-5 days
642 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
643 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 2 ships same day
647 164-0553 Male push on coupler $3.20 2 ships same day
650 164-1067 P Clamp $1.79 1 usually ships 1-5 days
