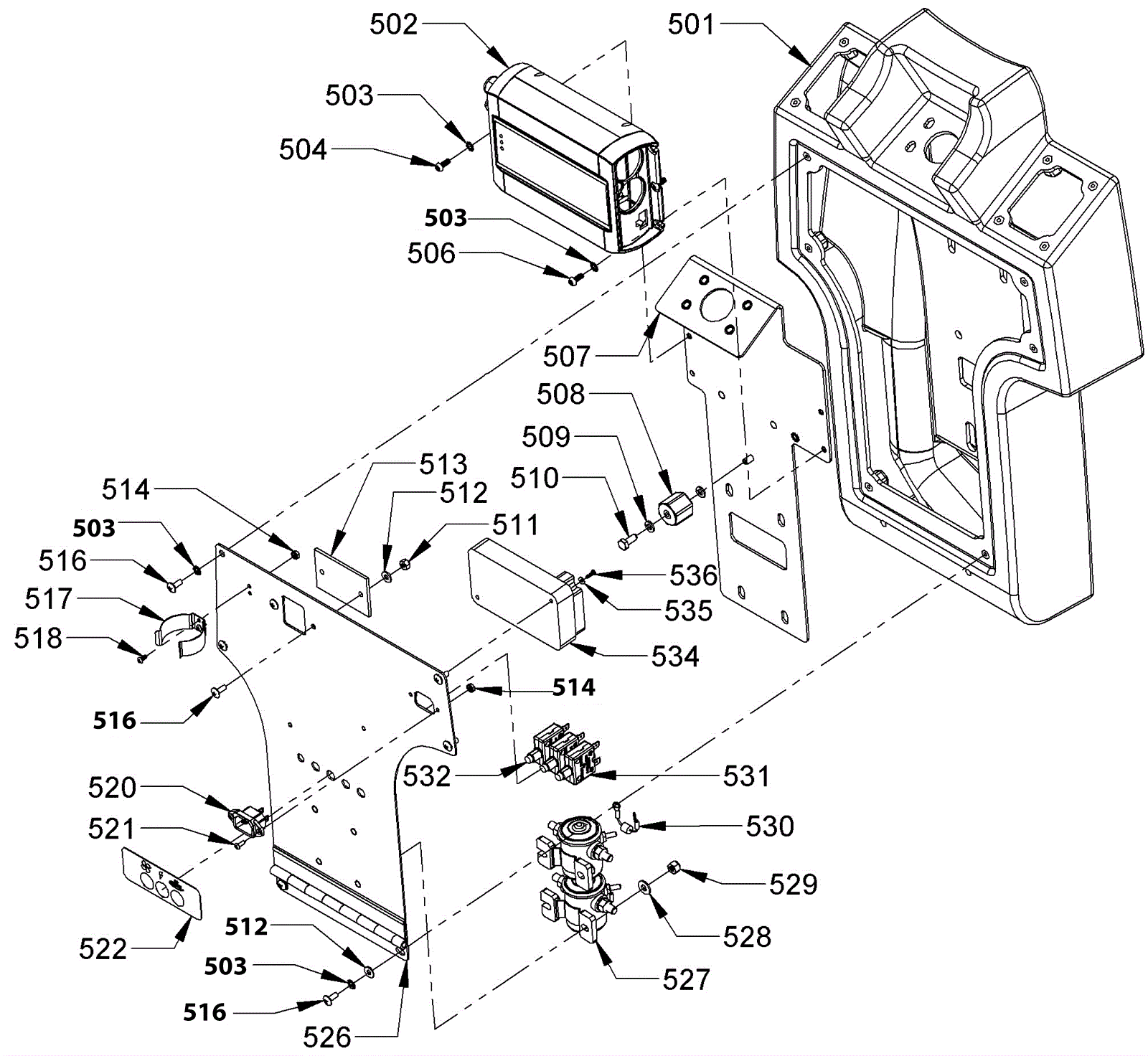

| # | Part | Description | Price | Req | Notes | Availability |
|---|
501 |
164-9878
|
Control panel |
Call for price
|
1 |
|
usually ships 18-33 days |
502a |
164-8748
|
Charger |
$794.85
|
1 |
|
usually ships 18-33 days |
502b |
164-6477
|
Onboard charger extension cord |
$27.67
|
1 |
(type B plug) (120V) |
ships same day |
502c |
164-9043
|
240V onboard charger cord |
$74.26
|
1 |
(type F plug) (240V) |
ships same day |
502d |
164-4666
|
240V onboard battery charger cord |
Call for price
|
1 |
(type I plug) (240V) |
usually ships 18-33 days |
503 |
999-0311
|
Washer #10 external star lock zinc plated |
$0.99
|
9 |
|
ships same day |
504 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
$0.99
|
1 |
|
ships same day |
506 |
164-9833
|
Screw #10-24 x 5/8 round head (pkg of 10) |
$5.89
|
2 |
|
usually ships 18-33 days |
507 |
164-9884
|
Support bracket |
Call for price
|
1 |
|
usually ships 18-33 days |
508 |
164-0310
|
Insulated stand off |
$10.95
|
1 |
|
usually ships 18-33 days |
509 |
999-0060
|
Washer 1/4 split lock plain finish |
$0.99
|
2 |
|
ships same day |
510 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
511 |
164-5000
|
Hex nut (pkg of 10) |
$6.34
|
2 |
|
ships same day |
512 |
164-9190
|
Washer #10-7/32 x 1/2 flat (pkg of 10) |
$5.89
|
4 |
|
usually ships 18-33 days |
513 |
164-9888
|
Window |
$10.07
|
1 |
|
usually ships 18-33 days |
514 |
164-9821
|
Nut #6-32 with star lock washer (pkg of 10) |
$5.89
|
4 |
|
usually ships 18-33 days |
516 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
$0.99
|
8 |
|
ships same day |
517 |
164-0101
|
Hose holder |
$12.31
|
1 |
|
ships same day |
518 |
164-9822
|
Screw #6-32 x 5/16 round head (pkg of 10) |
$5.61
|
2 |
|
usually ships 18-33 days |
520 |
164-9890
|
Onboard charger outlet |
Call for price
|
1 |
|
usually ships 18-33 days |
521 |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
$0.99
|
2 |
|
ships same day |
522 |
164-4667
|
Circuit breaker decal |
$11.41
|
1 |
|
usually ships 18-33 days |
526 |
164-9891
|
Electrical panel |
Call for price
|
1 |
|
usually ships 18-33 days |
527 |
164-0892
|
24V solenoid contactor |
$82.40
|
2 |
|
ships same day |
528 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
529 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
530 |
164-0583
|
Silicon rectifier (diode) |
$11.30
|
2 |
|
usually ships 18-33 days |
531 |
164-9892
|
25amp circuit breaker |
$28.06
|
2 |
|
usually ships 18-33 days |
532 |
164-9893
|
20amp circuit breaker |
$9.08
|
1 |
|
usually ships 18-33 days |
534 |
264-0095
|
I-drive controller |
$369.22
|
1 |
|
ships same day |
535 |
999-0985
|
Washer #4 SAE flat |
$0.99
|
2 |
|
ships same day |
536 |
999-1387
|
Screw 4-40 x 3/8 pan head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
