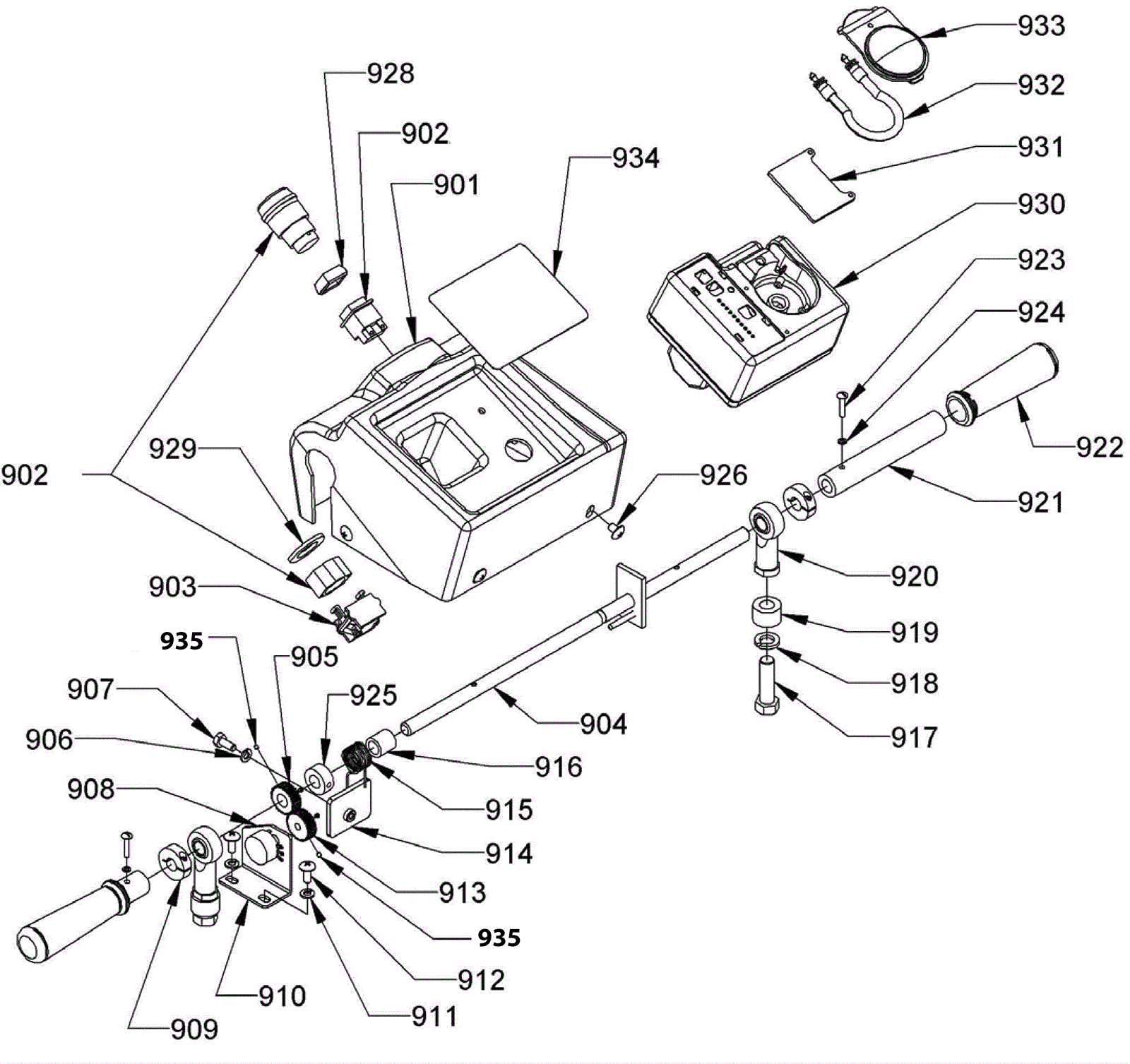

WRANGLER 3330 Handle Bar and Cover Assembly-After 03/2020

#PartDescriptionPriceReqNotesAvailability
901a 164-9817 Handle cover $168.80 1 usually ships 8-23 days
901b 164-9818 E-stop handle cover $168.80 1 (optional e-stop) usually ships 8-23 days
902a 164-4510 Momentary spray switch $24.24 1 usually ships 8-23 days
902b 164-2024 Emergency stop $132.87 1 (optional e-stop) ships same day
903 164-7412 Emergency stop block (green button) $33.83 1 (optional e-stop) usually ships 8-23 days
904 164-9123 Handle bar $124.85 1 usually ships 1-5 days
905 164-0300 Drive gear $55.99 1 (includes 935) usually ships 8-23 days
906 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
907 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
908 172-2039 5K potentiometer $61.41 1 ships same day
909 164-9120 1/2 inch shaft collar $9.32 2 usually ships 8-23 days
910 164-3282 Torsion spring bracket $16.17 1 usually ships 1-5 days
911 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
912 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 ships same day
913 164-0293 Drive gear $55.99 1 (includes 935) usually ships 8-23 days
914 164-9124 Spring stop bracket $10.51 1 usually ships 8-23 days
915 164-1329 Torsion spring $5.50 1 usually ships 8-23 days
916 164-9142 Sleeved bearing $5.28 1 usually ships 8-23 days
917 999-0145 Bolt 1/2-20 x 1 3/4 hex head grade 5 plain finish $1.65 2 ships same day
918 164-9071 Lock washer (pkg of 5) $5.89 2 usually ships 8-23 days
919 164-0292 Handle bar spacer $4.36 2 usually ships 1-5 days
920 164-0238 Ball joint $50.71 2 ships same day
921 164-0303 Handle grip base $27.06 2 usually ships 8-23 days
922a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
922b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
923 164-9777 Screw #8-32 x 7/8 pan head $5.89 2 usually ships 8-23 days
924 999-0150 Washer #8 medium split lock $0.99 2 ships same day
925 164-9119 1/2 inch shaft collar $3.43 1 (includes set screw) usually ships 8-23 days
926 999-0888 Screw 1/4-20 x 3/8 truss head slotted stainless steel $0.99 4 ships same day
928 164-0281 Push button switch boot $33.28 1 usually ships 8-23 days
929 164-6795 Washer 57/64 x 1/8 flat $5.78 1 (optional e-stop) usually ships 8-23 days
930a 164-8157 Sidekick chemical dispensor kit $1,177.17 1 (optional) usually ships 1-5 days
930b 164-8159 Top housing replacement pump $22.61 1 usually ships 8-23 days
930c 164-8160 Bottom housing replacement pump $64.90 1 usually ships 8-23 days
930d 164-8161 Replacement roller spring $121.66 1 usually ships 1-5 days
931a 164-8162 Sidekick control cover kit $66.44 1 (optional) usually ships 1-5 days
931b 164-8163 Dilution control cover $43.07 1 usually ships 1-5 days
931c 164-8164 Screw #6 x 1/2 inch tamperproof $3.56 2 usually ships 1-5 days
931d 164-8165 Tamperproof screw tool $25.25 1 usually ships 1-5 days
932 164-8166 Squeeze tube with fittings $45.16 1 (optional) usually ships 8-23 days
933 164-8185 Squeeze tube cover $21.62 1 (optional) usually ships 1-5 days
934 164-8155 Sidekick ready decal $10.07 1 usually ships 1-5 days
935 164-9819 Screw #8-32 x 1/4 knurl point (pkg of 10) $5.89 4 usually ships 8-23 days
