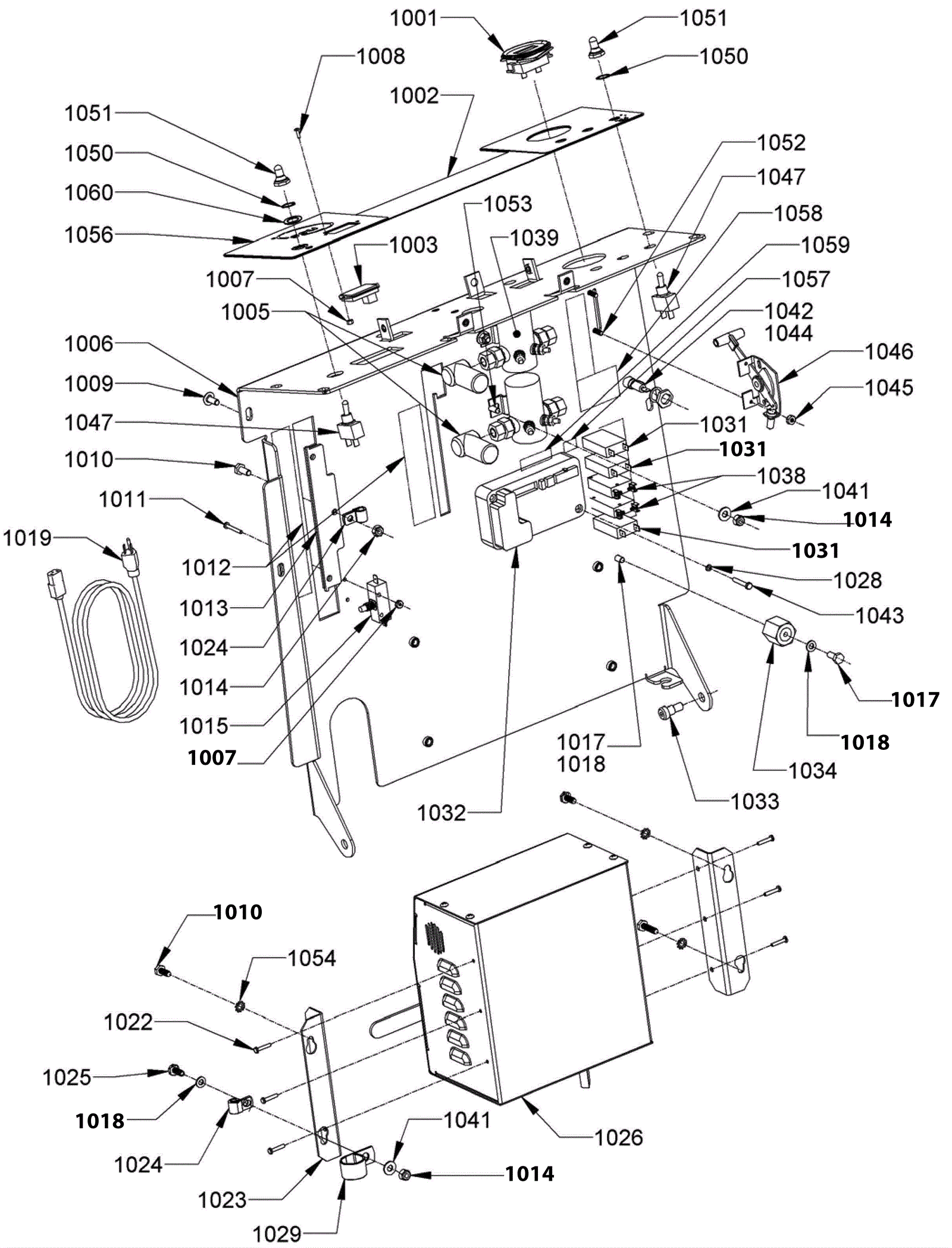

WRANGLER 3330 Rear Panel Assemby-After 03/2020

#PartDescriptionPriceReqNotesAvailability
1001 164-1451 Hour meter $114.59 1 usually ships 8-23 days
1002 164-7909 Control plate $43.07 1 usually ships 1-5 days
1003 164-7405 Trucharge indicator $90.86 1 usually ships 8-23 days
1005 164-9052 Terminal boot (red) $7.43 2 usually ships 1-5 days
1006 164-7406 Rear panel $383.24 1 usually ships 1-5 days
1007 164-9821 Nut #6-32 with star lock washer (pkg of 10) $5.89 4 usually ships 8-23 days
1008 164-9822 Screw #6-32 x 5/16 round head (pkg of 10) $5.61 2 usually ships 8-23 days
1009 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 8 ships same day
1010 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 9 ships same day
1011 164-9824 Screw #6-32 x 1 1/8 pan head (pkg 0f 10) $7.70 2 usually ships 8-23 days
1012 164-7410 Rear panel drive decal kit $18.98 1 (includes most labels on rear panel) usually ships 1-5 days
1013 164-1457 Brush handle lock plate $13.09 2 ships same day
1014 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 11 ships same day
1015 164-0015 Switch $34.66 1 ships same day
1017 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
1018 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
1019a 164-6477 Onboard charger extension cord $27.67 1 (120V) ships same day
1019b 164-9043 240V onboard charger cord $74.26 1 (240V) ships same day
1022 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.99 6 ships same day
1023 164-8029 Onboard charger mounting bracket $14.77 2 ships same day
1024 164-3243 P clamp $3.96 2 usually ships 1-5 days
1025 164-9825 Bolt 1/4-20 x 1 hex head (pkg of 10) $8.09 1 usually ships 8-23 days
1026a 164-0770 36V 25amp onboard battery charger $1,415.04 1 (120V) (includes 1026c) ships same day
1026b 164-9826 36V 25amp onboard battery charger $1,309.44 1 (240V) (includes 1026c) usually ships 8-23 days
1026c 164-9113 Cord wrap $25.08 1 usually ships 8-23 days
1028 999-0150 Washer #8 medium split lock $0.99 2 ships same day
1029 164-0934 P clamp $5.50 1 usually ships 8-23 days
1031 164-9827 25amp circuit breaker $64.80 3 usually ships 8-23 days
1032 164-7403 36V drive controller $589.88 1 usually ships 8-23 days
1033 164-9828 Bolt 3/8 x 1/2 socket head shoulder $12.87 2 usually ships 8-23 days
1034 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
1038 164-9829 25amp circuit breaker $62.82 2 usually ships 8-23 days
1039 164-9830 Solenoid contactor $86.46 2 usually ships 8-23 days
1041 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
1042 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
1043 164-9831 Screw #8-32 x 1 round head (pkg of 10) $9.35 2 usually ships 8-23 days
1044 164-0771 2amp fuse $4.36 1 ships same day
1045 164-9763 Nut #10-24 with star lock washer (pkg of 10) $8.75 2 usually ships 8-23 days
1046a 164-9808 Solution lever and cable assembly $29.48 1 (includes 1046b) usually ships 8-23 days
1046b 164-8012 T knob solution lever cable assembly $2.48 1 usually ships 8-23 days
1047 164-0023 Toggle switch $19.97 2 ships same day
1050 164-9832 Washer internal star lock (pkg of 5) $5.89 2 usually ships 8-23 days
1051 164-0287 Rubber switch boot $10.34 2 ships same day
1052 164-9833 Screw #10-24 x 5/8 round head (pkg of 10) $5.89 2 usually ships 8-23 days
1053 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch $4.94 4 ships same day
1054 999-0017 Washer 1/4 external star lock $0.99 3 ships same day
1056 164-7909 Control plate $43.07 1 (both labels) usually ships 1-5 days
1057 164-8149 Max incline decal $5.50 1 usually ships 8-23 days
1058 164-9834 Fuse decal $5.67 1 usually ships 8-23 days
1059 164-8150 Max climbing incline decal $8.97 1 usually ships 8-23 days
1060 164-0289 Washer flat stainless steel $5.89 1 usually ships 8-23 days
