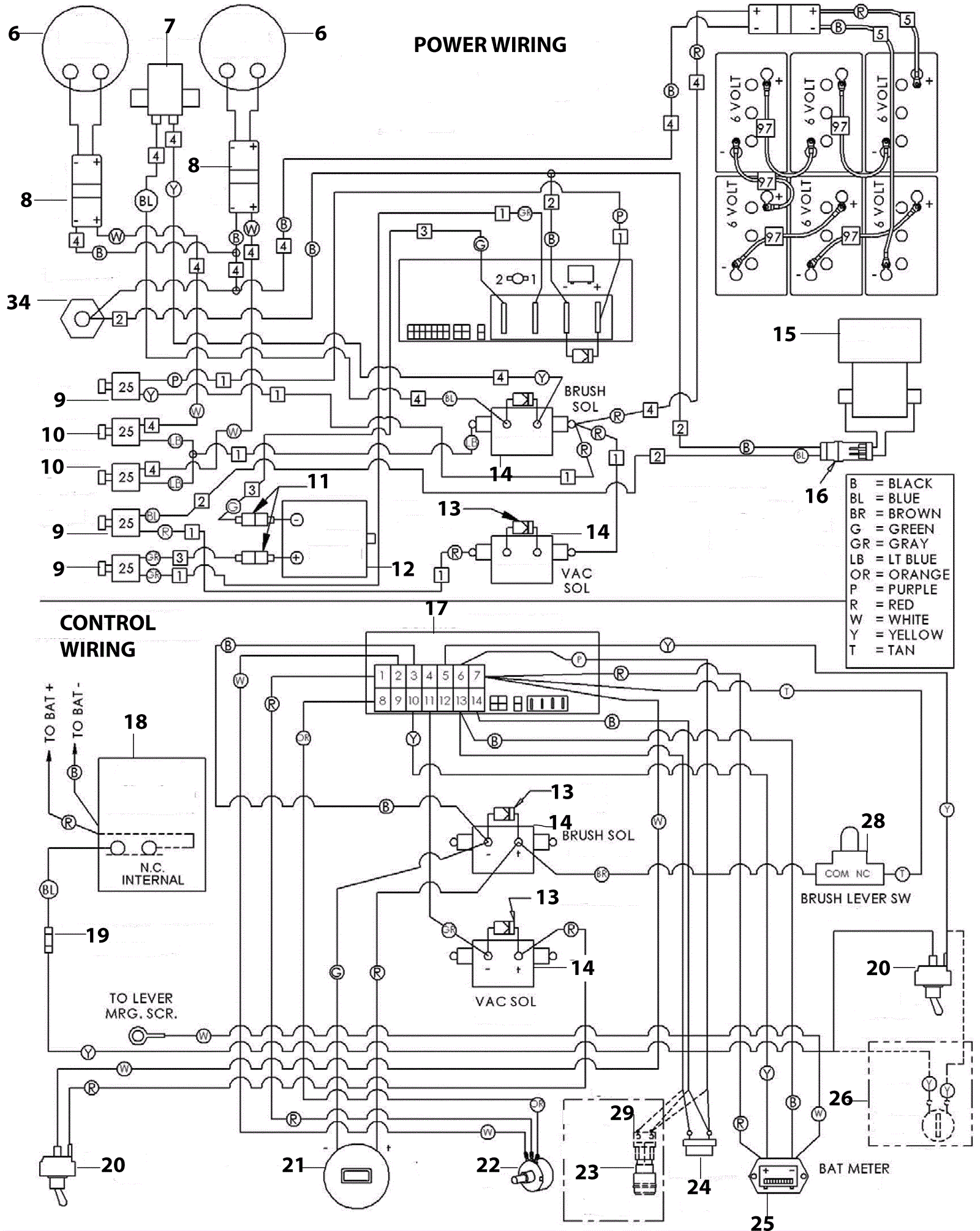

WRANGLER 3330 Wiring Diagram- After 03/2020

#PartDescriptionPriceReqNotesAvailability
1 164-7971 Power wiring wire harness (FSO) $80.36 1 usually ships 8-23 days
2 164-7972 Vacuum motor wiring harness $38.45 1 usually ships 1-5 days
3 164-7973 Drive motor wiring harness $13.97 1 usually ships 1-5 days
4 164-8030 Wiring harness - Machine to charger plug $227.54 1 usually ships 8-23 days
5 164-7975 Anderson connector to battery wiring harness $108.64 1 ships same day
6 164-0125 36V brush gear motor assembly $1,564.09 2 usually ships 8-23 days
7 164-9803 36V solution solenoid valve $200.08 1 usually ships 8-23 days
8 991-2105 SB50 50amp charger plug with pins (gray) $6.72 2 ships same day
9 164-9827 25amp circuit breaker $64.80 3 usually ships 8-23 days
10 164-9829 25amp circuit breaker $62.82 2 usually ships 8-23 days
11 164-3985 Fully insulated m-etc trim $3.04 1 usually ships 1-5 days
12a 164-0172 36V drive motor $1,335.62 2 ships same day
12b 991-5114 36V drive motor $800.31 2 (NON-OEM) usually ships 5-16 days
13 164-0583 Silicon rectifier (diode) $11.30 3 ships same day
14 164-9830 Solenoid contactor $86.46 4 usually ships 8-23 days
15a 164-1424 36V vacuum motor with packard plug $422.13 1 ships same day
15b 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug $134.20 1 (NON-OEM) usually ships 1-5 days
16a 164-1566 Female plug connector $10.95 1 usually ships 1-5 days
16b 164-3293 Cable seal $1.91 1 usually ships 1-5 days
16c 164-3294 Terminal locator $2.90 1 usually ships 1-5 days
16d 164-3295 Female terminal $2.24 1 usually ships 1-5 days
16e 164-3298 Male plug connector $12.27 1 usually ships 8-23 days
16f 164-3299 Male terminal $2.51 1 usually ships 8-23 days
17a 164-7403 36V drive controller $589.88 1 usually ships 8-23 days
17b 164-7404 Wire harness for controller $121.50 1 usually ships 8-23 days
18a 164-0770 36V 25amp onboard battery charger $1,415.04 1 ships same day
18b 164-9826 36V 25amp onboard battery charger $1,309.44 1 usually ships 8-23 days
19a 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
19b 164-0771 2amp fuse $4.36 1 ships same day
20 164-0023 Toggle switch $19.97 2 ships same day
21 164-1451 Hour meter $114.59 1 usually ships 8-23 days
22 172-2039 5K potentiometer $61.41 1 ships same day
23 164-2024 Emergency stop $132.87 1 (optional) ships same day
24 164-4510 Momentary spray switch $24.24 1 usually ships 8-23 days
25 164-7405 Trucharge indicator $90.86 1 usually ships 8-23 days
26 164-7801 Key switch $28.38 1 (optional) usually ships 8-23 days
28 164-0015 Switch $34.66 1 ships same day
29 164-7412 Emergency stop block (green button) $33.83 1 (optional) usually ships 8-23 days
34 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
97a 998-0010 Battery jumper cable - ring type (red) $4.84 5 ships same day
97b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 5 (NON-OEM) usually ships 5-16 days
