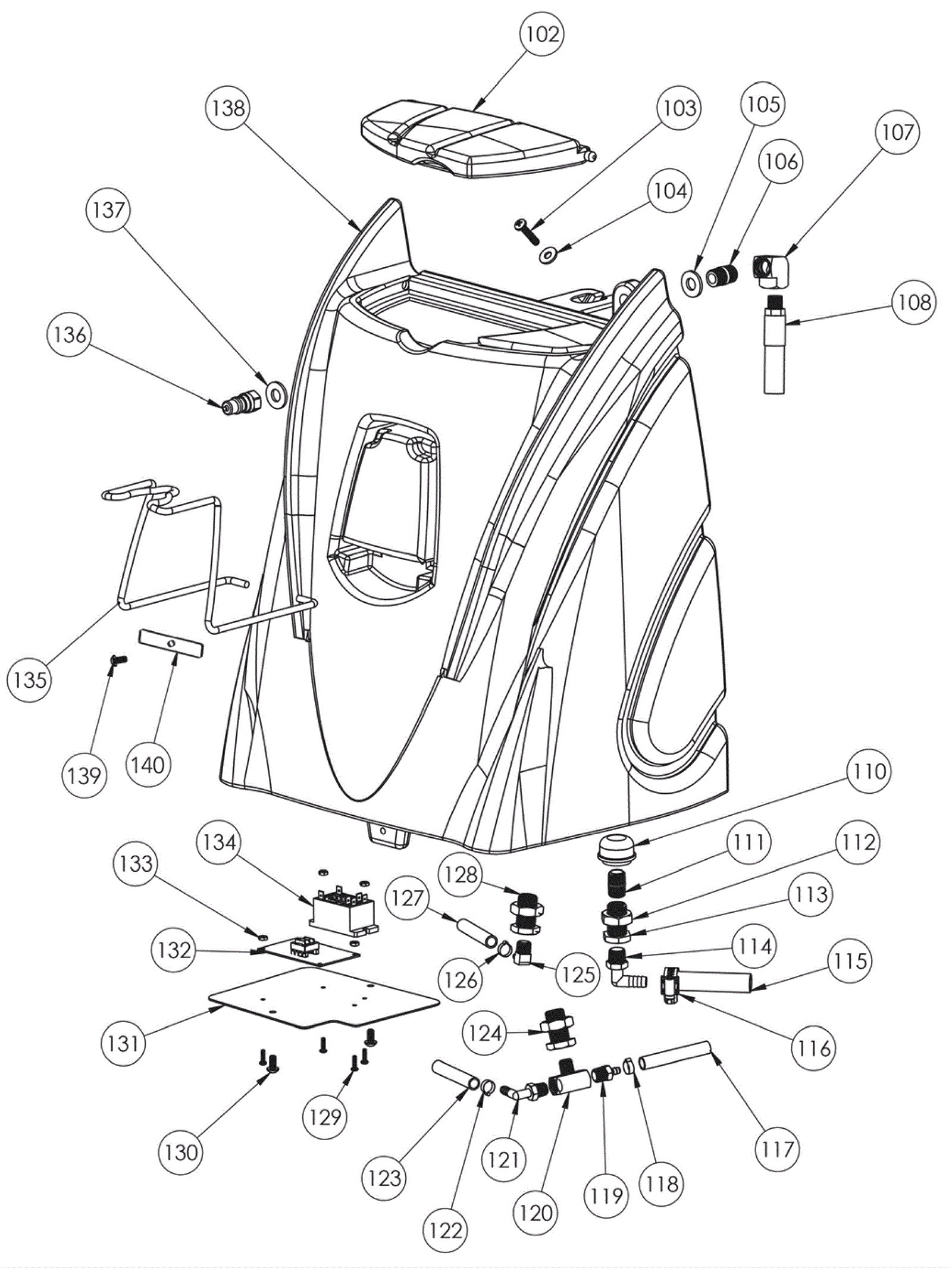

Solution Tank Assembly

#PartDescription ReqNotesAvailability
102 164-9335 Solution tank lid (black) 1
103 164-9349 Screw 1/4-20 x 1 1/4 round head phillips 1
104 999-0024 Washer 5/16 flat stainless steel 1
105 999-0114 Washer 1/2 SAE flat 1
106 164-9340 Branch tee fitting 1
107 164-0550 90 degree elbow 1
108 164-9302 51 inch hose 1
110 164-9337 Filter 1
111 164-3614 Nipple, 1/8 pt 1
112 164-9338 Bulkhead fitting 1
113 164-9338 Bulkhead fitting 1
114 164-9339 Fitting 1
115 164-9297 50 inch hose reinforced 1
116 997-2005 Hose clamp 1
117 164-9306 Hose 1
118 164-9305 Clamp 1
119 164-1343 Fitting 1/4 x 1/4 (OBSOLETE) 1
120 164-9340 Branch tee fitting 1
121 164-9304 Fitting 2
122 164-9305 Clamp 1
123 164-9341 32 inch hose 1
124 164-9338 Bulkhead fitting 1
125 164-9304 Fitting 1
126 164-9305 Clamp 1
127 164-9342 31 inch hose 1
128 164-9338 Bulkhead fitting 1
129 164-9323 Screw 6-32 x 5/8 round head phillips 4
130 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel 2
131 164-9343 Cover 1
132 164-9344 120V dual circuit indicator 1
133 999-0195 Nut 6-32 hex plain 4
134 164-9345 Relay 1
135 164-9346 Hook 1
136 164-3334 Male quick connect 1
137 999-0114 Washer 1/2 SAE flat 1
138 164-9347 Solution tank (green) 1
139 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel 1
140 164-9348 Plate 1
