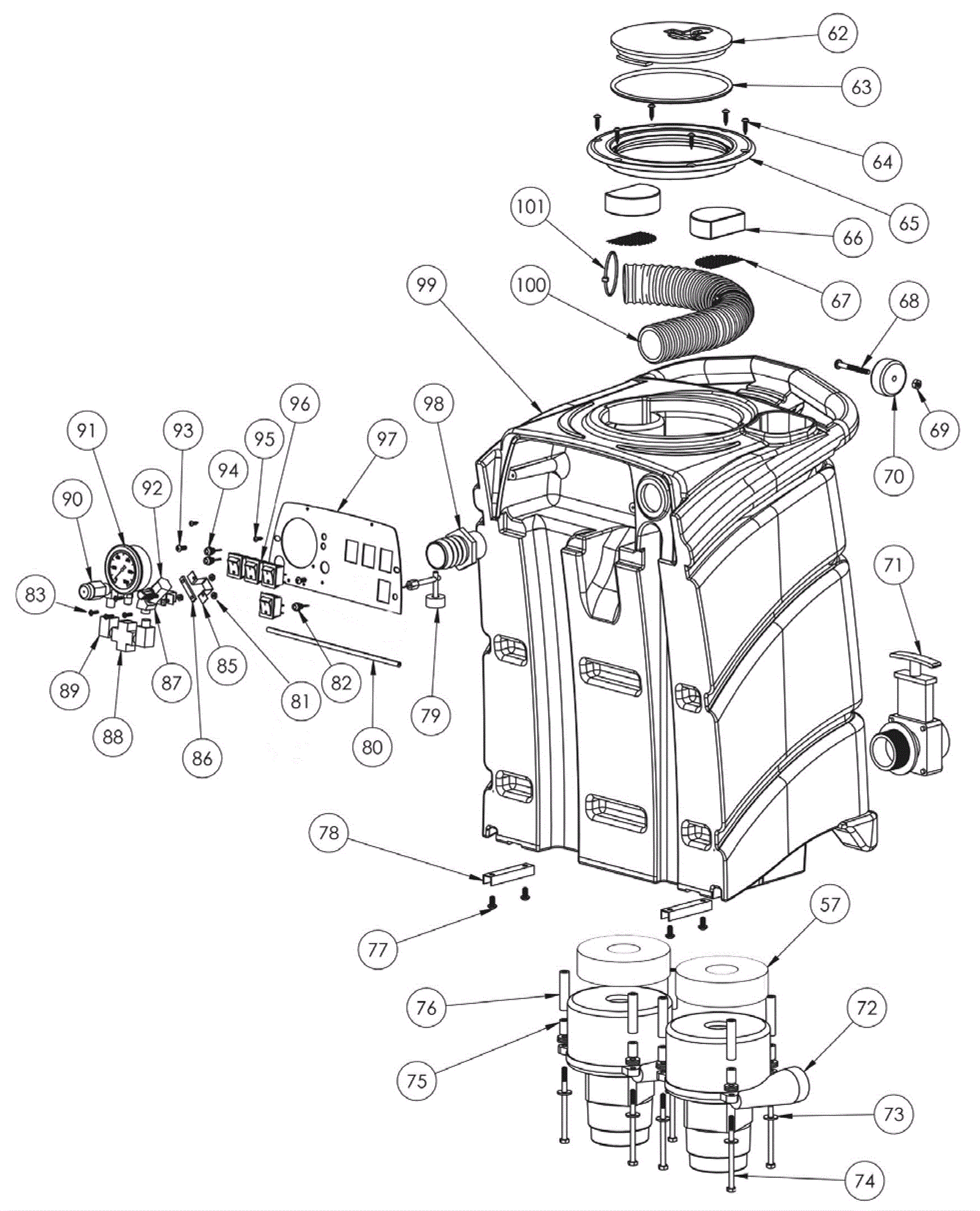

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
57 164-9311 Gasket 2
62 164-9272 6 inch recovery lid assembly with ring (black) 1
63 164-9312 O-ring 1
64 164-9295 Screw #12 x 1/2 phillips head sheet metal 6
65 164-9272 6 inch recovery lid assembly with ring (black) 1
67 164-9314 Screen 2
68 999-0648 Screw 1/4-20 x 2 1/4 round head phillips zinc plated 1
69 999-0190 Nut 1/4-20 hex plain finish 1
70 164-9315 Wheel 1
71 164-3499 Drain gate 1
72a 164-9316 120V 3 stage vacuum motor 2 (OEM)
72b 991-1213 120V 3 stage vacuum motor tangential 1 (NON-OEM)
73 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
74 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated 6
75 164-9317 Spacer 6
76 164-9318 Spacer 6
77 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel 4
78 164-9319 Bracket 2
79 164-9320 Float switch 1
80 164-9321 Control panel trim 1
81 999-0195 Nut 6-32 hex plain 4
82 164-9322 110V led light (red) 2
83 164-9323 Screw 6-32 x 5/8 round head phillips 4
85 164-9324 Bracket 2
86 164-9325 Spacer 1
87 164-0947 45 degree elbow 3
88 164-3150 Brass cross 1/4 1
89 164-0565 90 degree brass elbow 2
90 164-9326 600PSI regulator 1
91 164-9327 1000PSI gauge 1
92 164-9328 Valve 1
93 164-3144 Screw 10-32 x 1/2 pan head phillips 2
94 164-9329 220V led light (green) 1
95 999-0729 Screw 6 x 5/8 pan head phillips T-A sheet metal zinc 6
96 164-9330 Rocker switch 4
97a 164-9331 4 panel switch with gauge 1
97b 164-9332 4 panel switch with gauge and hour meter 1
98 164-3500 Hose barb 1 1/2 inch 1
99 164-9333 12 gallon tank (black) 1
100 164-9334 Hose 1
101 164-1419 Wire tie 2
