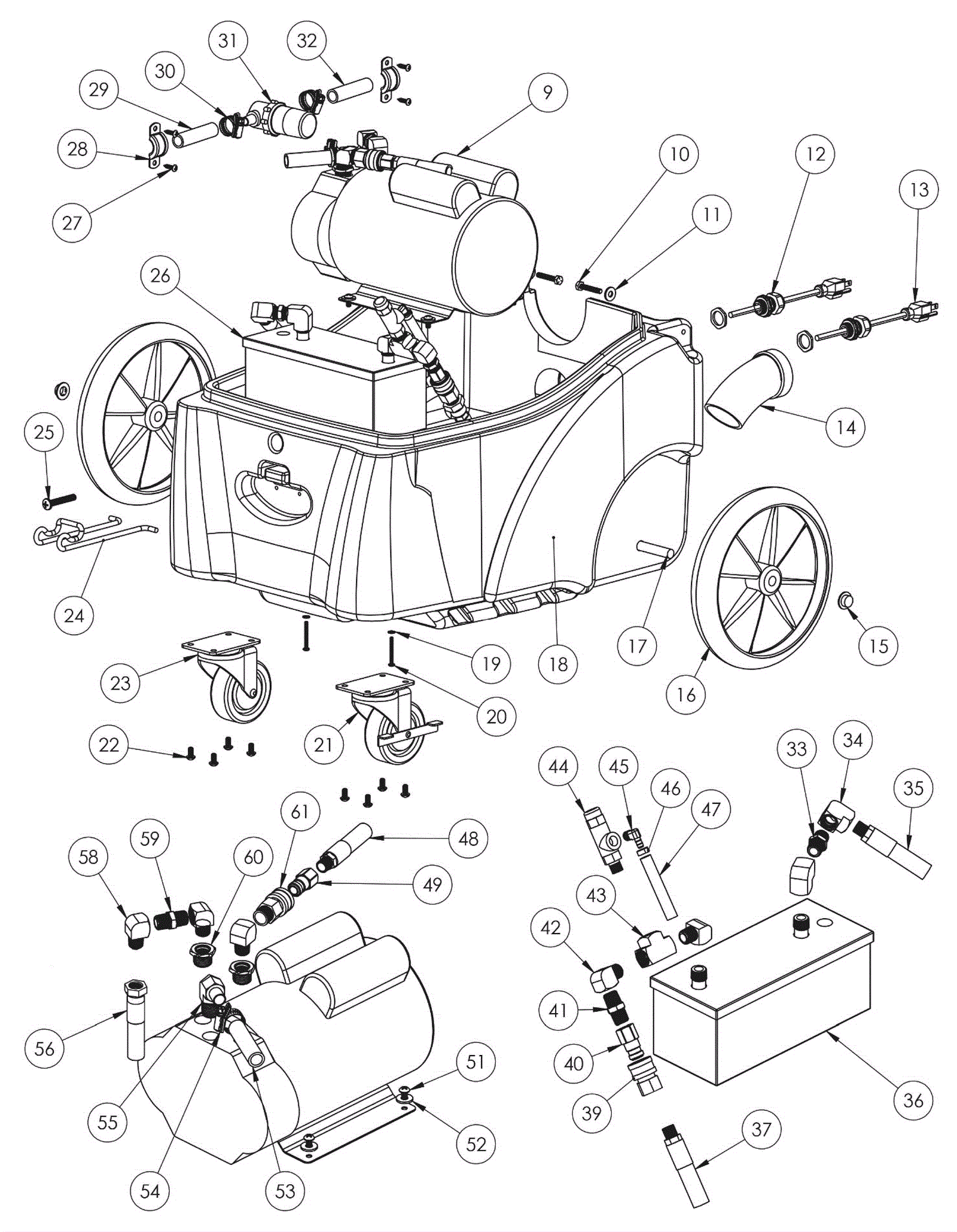

Base Assembly

#PartDescription ReqNotesAvailability
9 164-9284 120V 500 psi pump 1
10 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 2
11 999-0024 Washer 5/16 flat stainless steel 2
12 164-9285 Strain relief 2
13 164-9286 Pig tail cord 2
14 164-3550 Spout, drain gate 1
15 164-8761 Axle cap 2
16 164-9287 Wheel 2
17 164-9288 Axle 1
18 164-9289 Base 1
19 164-9280 Washer 2
20 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel 6
21 164-9290 Caster 1
22 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel 8
23 164-9291 Caster 1
24 164-9292 Lower hose hook 1
25 164-9293 Screw 5/16-18 x 2 round head phillips 1
26 164-9294 Enclosure for dual rod heater 1
27 164-9295 Screw #12 x 1/2 phillips head sheet metal 4
28 164-9296 Cushioned clamp 2
29 164-9297 50 inch hose reinforced 1
30 997-2005 Hose clamp 2
31a 164-8772 Filter 1 (includes 31b, 31c)
31b 164-9128 Strainer element 1
31c 164-8177 Bowl and gasket kit 1
32 164-9308 6 inch hose reinforced (clear) 1
33 164-9299 Valve 1
34 164-0550 90 degree elbow 1
36 164-9301 12 gallon heater 1
37 164-9302 51 inch hose 1
39 164-4182 Female quick connect 1
40 164-4183 Male quick connect 1
41 164-4567 1/4 inch brass hex nipple 1
42 164-0565 90 degree brass elbow 2
43 164-3380 1/4 inch brass tee 1
44 164-9303 Valve 1
45 164-9304 Fitting 1
46 164-9305 Clamp 1
47 164-9306 Hose 1
48 164-9307 46 inch hose 1
49 164-4183 Male quick connect 1
51 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel 4
52 999-0024 Washer 5/16 flat stainless steel 4
53 164-9308 6 inch hose reinforced (clear) 1
54 997-2005 Hose clamp 1
55 164-9309 Fitting 1
58 164-0565 90 degree brass elbow 3
59 164-4567 1/4 inch brass hex nipple 1
60 164-4546 Brass bushing 2
61 164-4182 Female quick connect 1
