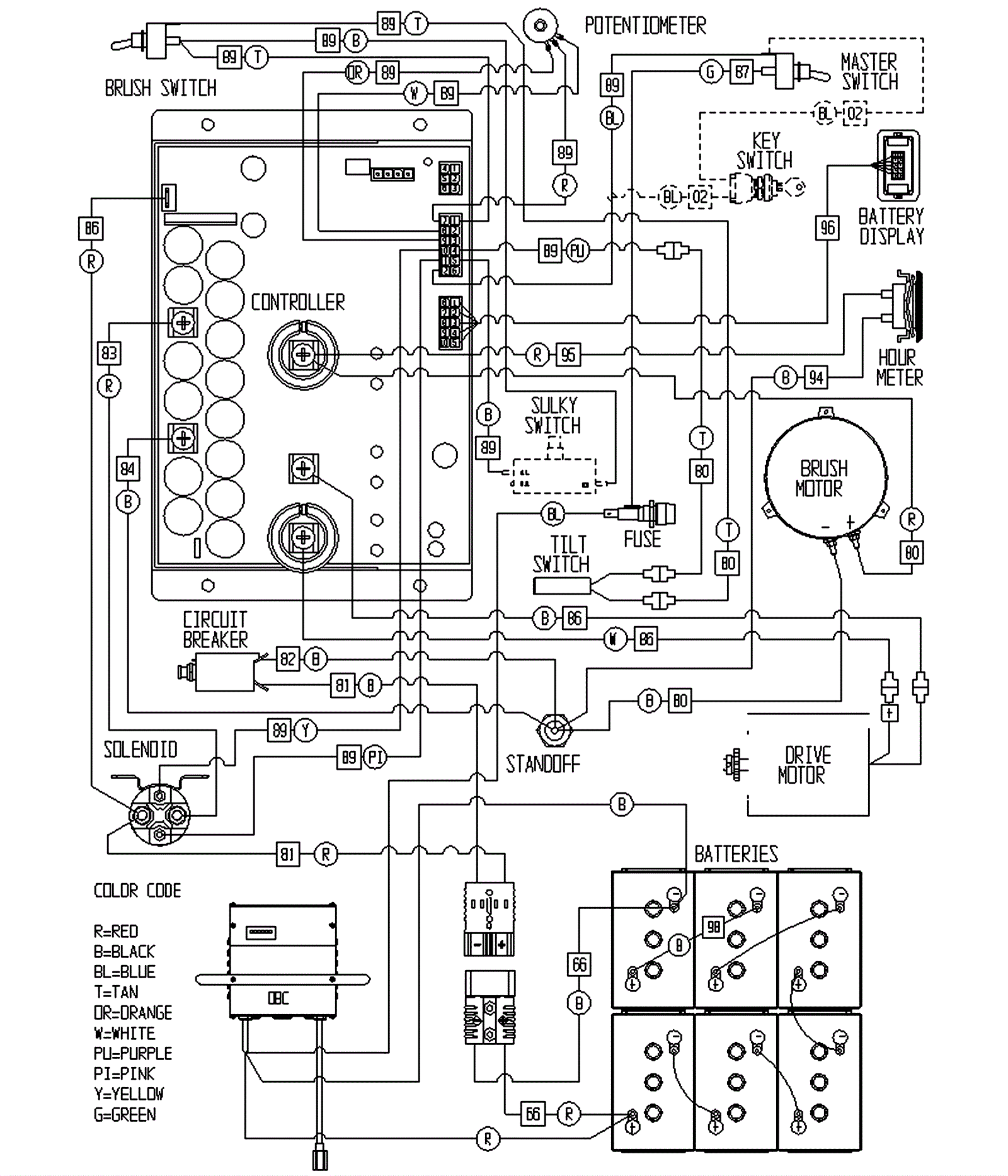

CHARGER 2022 DB AB Wiring Diagram - 2022 DB

#PartDescriptionPriceReqNotesAvailability
66 164-1321 Wire assembly $120.47 1 usually ships 8-23 days
80 164-7343 Brush motor wire harness $156.48 1 (brush motor) usually ships 8-23 days
81 164-7324 Wire assembly with 175amp Anderson plug (gray) $89.89 1 ships same day
82 164-0708 Wire $14.91 1 (breaker to standoff) usually ships 8-23 days
83 164-0766 Wire $21.95 1 (solenoid to controller) usually ships 1-5 days
84 164-0767 Wire $17.00 1 (controller to standoff) usually ships 1-5 days
86 164-1068 Wire harness $27.39 1 (controller to drive motor) usually ships 1-5 days
87 164-0718 Wire $2.51 1 (fuse holder to master switch) usually ships 1-5 days
89 164-1069 Wire harness $34.05 1 usually ships 8-23 days
94 164-0746 Wire $2.97 1 (hour meter to standoff) usually ships 1-5 days
95 164-0747 Wire $38.45 1 (speed control to hour meter) usually ships 1-5 days
98 998-0010 Battery jumper cable - ring type (red) $4.84 5 ships same day
13 164-1451 Hour meter $114.59 1 usually ships 8-23 days
14 N/A Not available Call for price 2 (Male terminal) usually ships 3-26 days
15 172-2039 5K potentiometer $63.07 1 ships same day
16 164-0172 36V drive motor $1,335.62 1 (OEM) ships same day
16.1 991-5114 36V drive motor $800.31 1 (NON-OEM) usually ships 5-16 days
17 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
18 164-0027 36V solenoid contactor $213.61 1 usually ships 8-23 days
19 164-0023 Toggle switch $19.97 2 ships same day
20 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
21 998-0001 1/4 spade male terminal 10-12 gauge $0.99 2 ships same day
22 164-0015 Switch $34.66 1 ships same day
23 991-1615 90amp circuit breaker $145.41 1 ships same day
24 164-0770 36V 25amp onboard battery charger $1,415.04 1 ships same day
25 164-6477 Onboard charger extension cord $27.67 1 usually ships 8-23 days
27 164-6480 4amp fuse $21.82 1 ships same day
28 164-6405 36V 2500 rpm imperial motor $1,099.78 1 usually ships 8-23 days
29 164-7321 Tilt switch $66.72 1 usually ships 8-23 days
30 164-7325 Battery meter with harness, meter and 10 pin wire harness $205.08 1 usually ships 8-23 days
31 164-7326 Battery meter display $116.66 1 usually ships 1-5 days
32 164-7327 10 pin wire harness for battery meter $148.89 1 usually ships 1-5 days
33 164-7330 Key switch kit with wiring $42.19 1 usually ships 1-5 days
34 164-1660 Key switch and key $28.47 1 ships same day
35 164-7987 Key (set of 2) $21.77 1 ships same day
02 164-0676 Wiring assembly $5.50 1 usually ships 1-5 days
37 164-0931 Controller $1,011.10 1 usually ships 8-23 days
