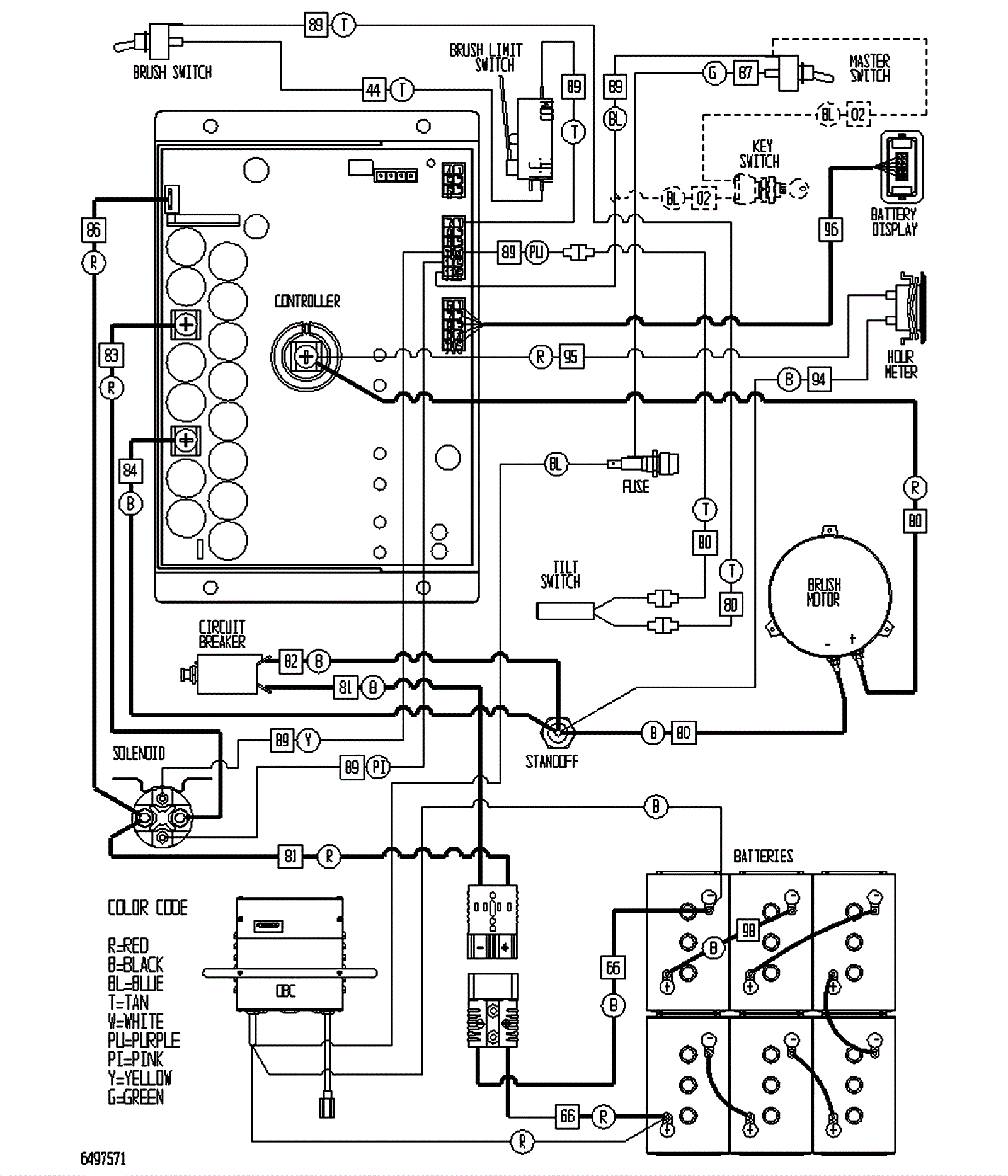

CHARGER 2022 DB AB Wiring Diagram - 2022 AB

#PartDescriptionPriceReqNotesAvailability
02 164-0676 Wiring assembly $5.50 1 usually ships 1-5 days
14 164-1451 Hour meter $114.59 1 usually ships 8-23 days
15 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
16 164-0027 36V solenoid contactor $213.61 1 usually ships 8-23 days
17 164-0023 Toggle switch $19.97 1 ships same day
18 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
19 998-0001 1/4 spade male terminal 10-12 gauge $0.99 2 ships same day
20 991-1615 90amp circuit breaker $145.41 1 ships same day
21 164-0770 36V 25amp onboard battery charger $1,415.04 1 ships same day
22 164-6477 Onboard charger extension cord $27.67 1 usually ships 8-23 days
24 164-0771 2amp fuse $4.36 1 ships same day
25 164-6405 36V 2500 rpm imperial motor $1,099.78 1 usually ships 8-23 days
26 164-8290 Controller $1,126.79 1 usually ships 8-23 days
27 164-7321 Tilt switch $66.72 1 usually ships 8-23 days
28 164-7325 Battery meter with harness, meter and 10 pin wire harness $205.08 1 usually ships 8-23 days
29 164-7326 Battery meter display $116.66 1 usually ships 1-5 days
30 164-7327 10 pin wire harness for battery meter $148.89 1 usually ships 1-5 days
31 164-7330 Key switch kit with wiring $42.19 1 usually ships 1-5 days
32 164-1660 Key switch and key $28.47 1 ships same day
44 164-0765 Wire $5.50 1 (limit switch to brush switch) usually ships 1-5 days
66 164-1321 Wire assembly $120.47 1 usually ships 8-23 days
80 164-7343 Brush motor wire harness $156.48 1 (brush motor) usually ships 8-23 days
81 164-7324 Wire assembly with 175amp Anderson plug (gray) $89.89 1 ships same day
82 164-0708 Wire $14.91 1 (breaker to standoff) usually ships 8-23 days
83 164-0766 Wire $21.95 1 (solenoid to controller) usually ships 1-5 days
84 164-0767 Wire $17.00 1 (controller to standoff) usually ships 1-5 days
86 164-0768 Wire $9.19 1 (solenoid to AB controller) usually ships 1-5 days
87 164-0718 Wire $2.51 1 (fuse holder to master switch) usually ships 1-5 days
89 164-0769 Wire (OBSOLETE) $16.01 1 usually ships 1-5 days
94 164-0746 Wire $2.97 1 (hour meter to standoff) usually ships 1-5 days
95 164-0747 Wire $38.45 1 (speed control to hour meter) usually ships 1-5 days
98a 998-0010 Battery jumper cable - ring type (red) $4.84 5 ships same day
98b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 5 (NON-OEM) usually ships 5-16 days
