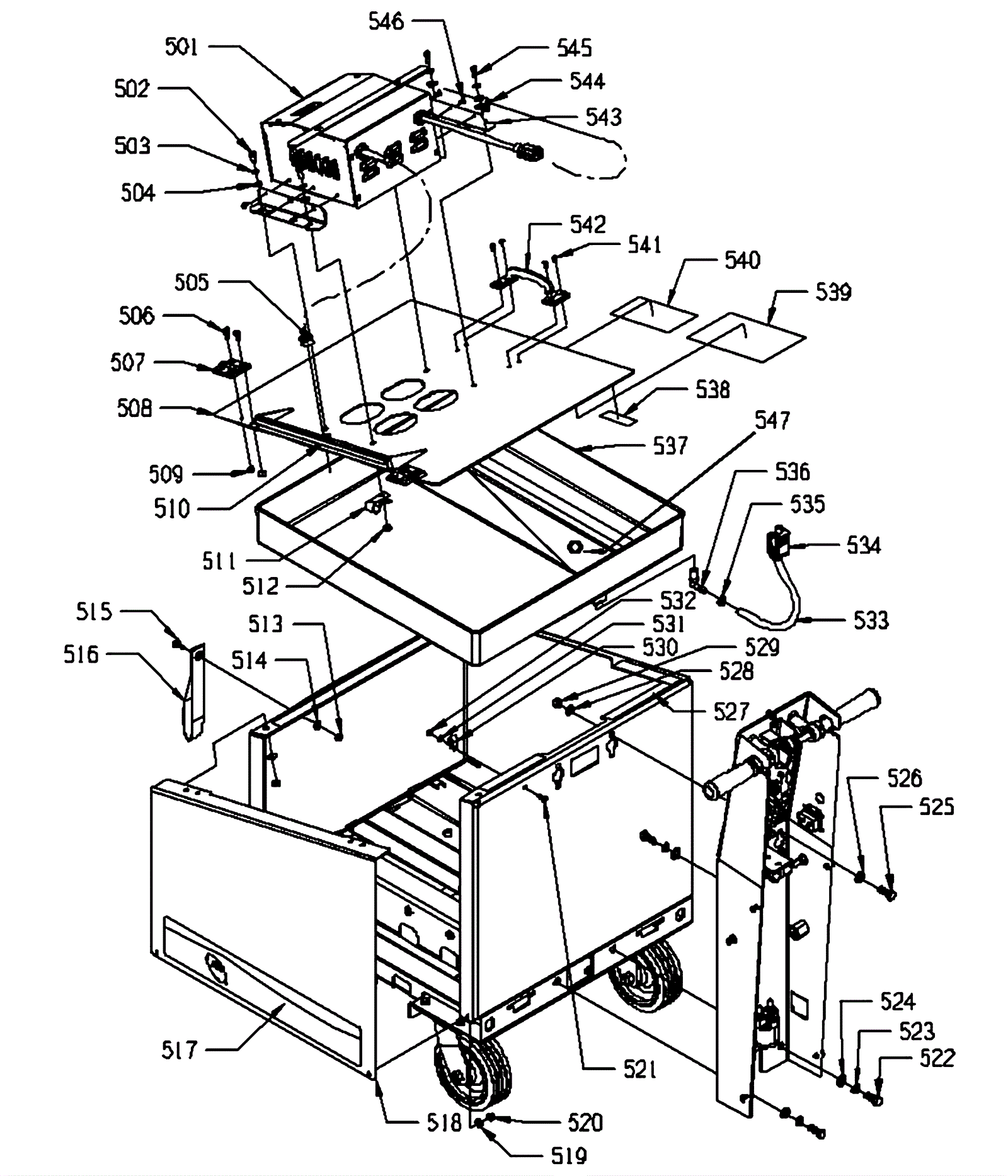

Lid and Side Assembly

#PartDescription ReqNotesAvailability
501 164-0770 36V 25amp onboard battery charger 1
502 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 3
503 999-0060 Washer 1/4 split lock plain finish 4
504 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
505 164-1673 Snap bushing 1
506 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated 8
507 164-0701 Lid hinge 2
508 164-0933 Lid 1
509 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
510 164-9029 Metal core quickedge trim (sold by the foot) 1
511 164-9118 P clamp 1
512 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
513 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
514 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
515 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 1
516 164-0669 Retaining strap 1
517 164-9051 Cloud burst decal (OBSOLETE) 2
518 164-1061 Side panel 1
519 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
520 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
521 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated 1
522 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
523 999-0034 Washer 3/8 split lock plain finish 4
524 164-0941 Washer 13/32 x 13/16 4
525 992-0001 Velcro loop (sold by the inch) 4
526 164-1067 P Clamp 1
527 999-0998 Washer #10 flat stainless steel 1
528 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
529 991-1401 Clear vinyl tubing (sold by the inch) 2
530 164-0398 Control valve (white clamp) 1
531 997-2001 Hose clamp 1
532 164-0187 90 degree elbow barb 1
533 164-1062 Battery tray 1
534 992-0002 Velcro hook (sold by the inch) 1
535 164-1064 Decal 1 (battery warning)
536 164-0666 Warning decal 1
538 164-9047 Handle 1
539 164-8029 Onboard charger mounting bracket 2
540 164-3243 P clamp 1
541 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
542 999-0569 Screw 10 x 1/2 pan head phillips sheet metal 6
