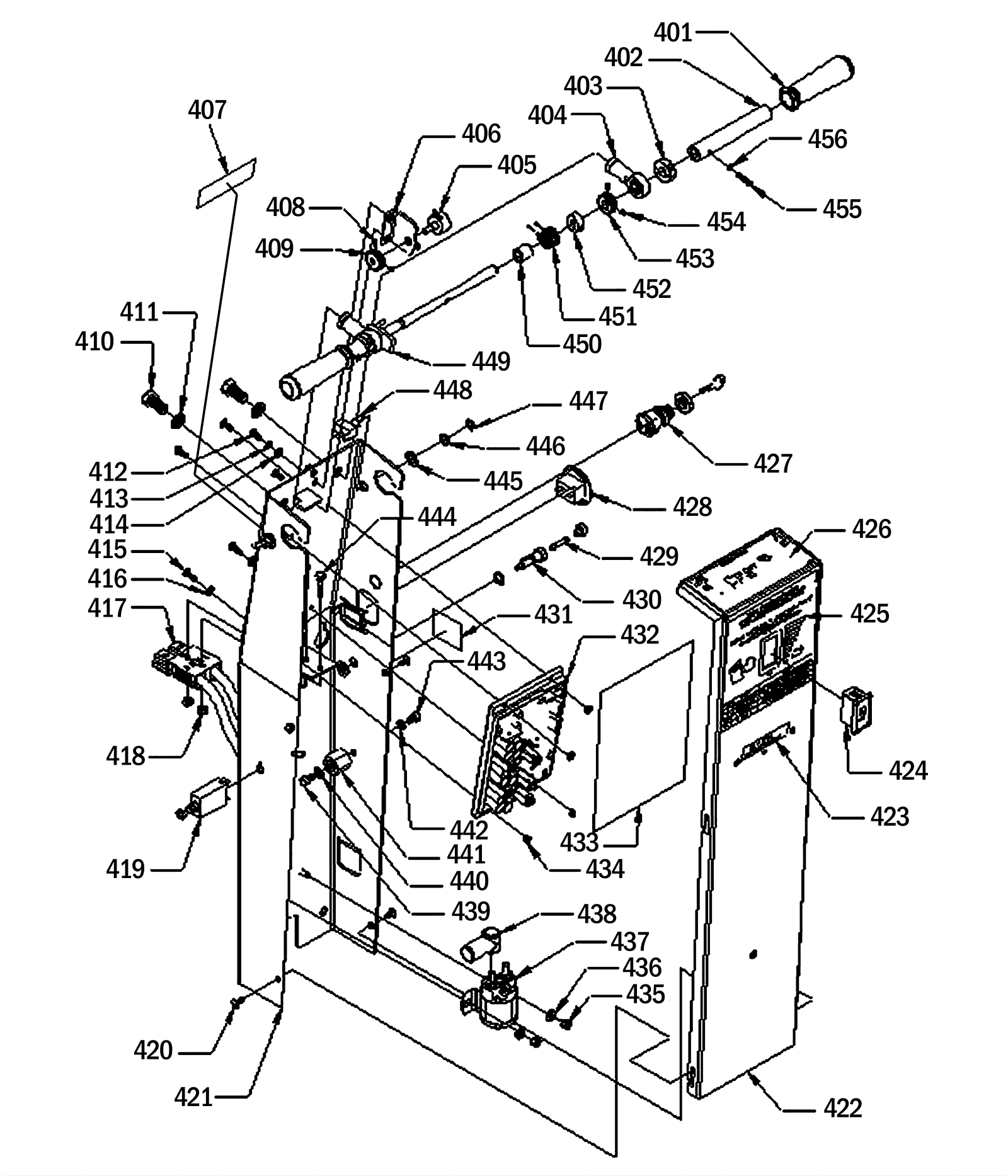

| # | Part | Description |
Req | Notes | Availability |
|---|
401a |
164-0304
|
Handle grip |
2 |
|
|
401b |
991-8571
|
Handle grip |
2 |
(NON-OEM) |
|
402 |
164-0303
|
Handle grip base |
2 |
|
|
403 |
164-9120
|
1/2 inch shaft collar |
2 |
|
|
404 |
164-0238
|
Ball joint |
2 |
|
|
405 |
172-2039
|
5K potentiometer |
1 |
|
|
406 |
164-0925
|
Potentiometer bracket |
1 |
|
|
407 |
164-0667
|
Decal (OBSOLETE) |
1 |
|
|
408 |
999-0650
|
Screw 8-32 x 3/16 knurled point socket set plain finish |
2 |
|
|
409 |
164-0293
|
Drive gear |
1 |
|
|
410 |
999-0661
|
Bolt 1/2-20 x 1 18-8 hex head stainless steel |
2 |
|
|
411 |
999-0126
|
Washer 1/2 split lock |
2 |
|
|
412 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
2 |
|
|
413 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
414 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
415 |
999-0314
|
Screw 10-24 x 3/4 round head phillips zinc plated |
4 |
|
|
416 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
417a |
164-7324
|
Wire assembly with 175amp Anderson plug (gray) |
1 |
|
|
417b |
991-2112
|
175amp charger plug with pins (gray) SB175 |
1 |
|
|
418 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
419 |
991-1615
|
90amp circuit breaker |
1 |
|
|
420 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
5 |
|
|
421 |
164-0926
|
Control panel frame |
1 |
|
|
422 |
164-0927
|
Control panel frame cover |
1 |
|
|
423 |
164-0928
|
Cart ready decal (OBSOLETE) |
1 |
|
|
424a |
164-7325
|
Battery meter with harness, meter and 10 pin wire harness |
1 |
|
|
424b |
164-7326
|
Battery meter display |
1 |
|
|
424c |
164-7327
|
10 pin wire harness for battery meter |
1 |
|
|
427a |
164-7330
|
Key switch kit with wiring |
1 |
|
|
427b |
164-1660
|
Key switch and key |
1 |
|
|
427c |
164-0676
|
Wiring assembly |
1 |
|
|
428 |
164-1451
|
Hour meter |
1 |
|
|
429 |
164-6480
|
4amp fuse |
1 |
|
|
430 |
164-1328
|
Fuse holder with nut and washer |
1 |
|
|
431 |
164-3308
|
Fuse decal |
1 |
|
|
432a |
164-0931
|
Controller |
1 |
(drive and brush) |
|
432b |
999-0017
|
Washer 1/4 external star lock |
5 |
|
|
432c |
164-0656
|
Screw 1/4-28 x 3/8 pan head phillips |
5 |
|
|
433 |
164-0932
|
Wiring diagram decal |
1 |
(wiring diagram) |
|
434 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
435 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
436 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
437 |
164-0027
|
36V solenoid contactor |
1 |
|
|
438 |
164-9052
|
Terminal boot (red) |
1 |
|
|
439 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
1 |
|
|
440 |
999-0017
|
Washer 1/4 external star lock |
1 |
|
|
441 |
164-0310
|
Insulated stand off |
1 |
|
|
442 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
443 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
1 |
|
|
444 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
|
445 |
164-0289
|
Washer flat stainless steel |
2 |
|
|
446 |
999-0260
|
Washer 1/2 internal starlock |
2 |
|
|
447 |
999-0186
|
Nut 5/8-11 nylon insert lock zinc plated |
2 |
|
|
448 |
164-0023
|
Toggle switch |
2 |
|
|
449 |
164-6418
|
Handle bar |
1 |
|
|
450 |
164-9142
|
Sleeved bearing |
1 |
|
|
451 |
164-1329
|
Torsion spring |
1 |
|
|
452 |
164-9119
|
1/2 inch shaft collar |
1 |
|
|
453 |
164-0300
|
Drive gear |
1 |
|
|
454 |
999-0650
|
Screw 8-32 x 3/16 knurled point socket set plain finish |
2 |
|
|
455 |
999-0080
|
Screw 8-32 x 7/8 round head slotted zinc plated |
2 |
|
|
456 |
999-0150
|
Washer #8 medium split lock |
