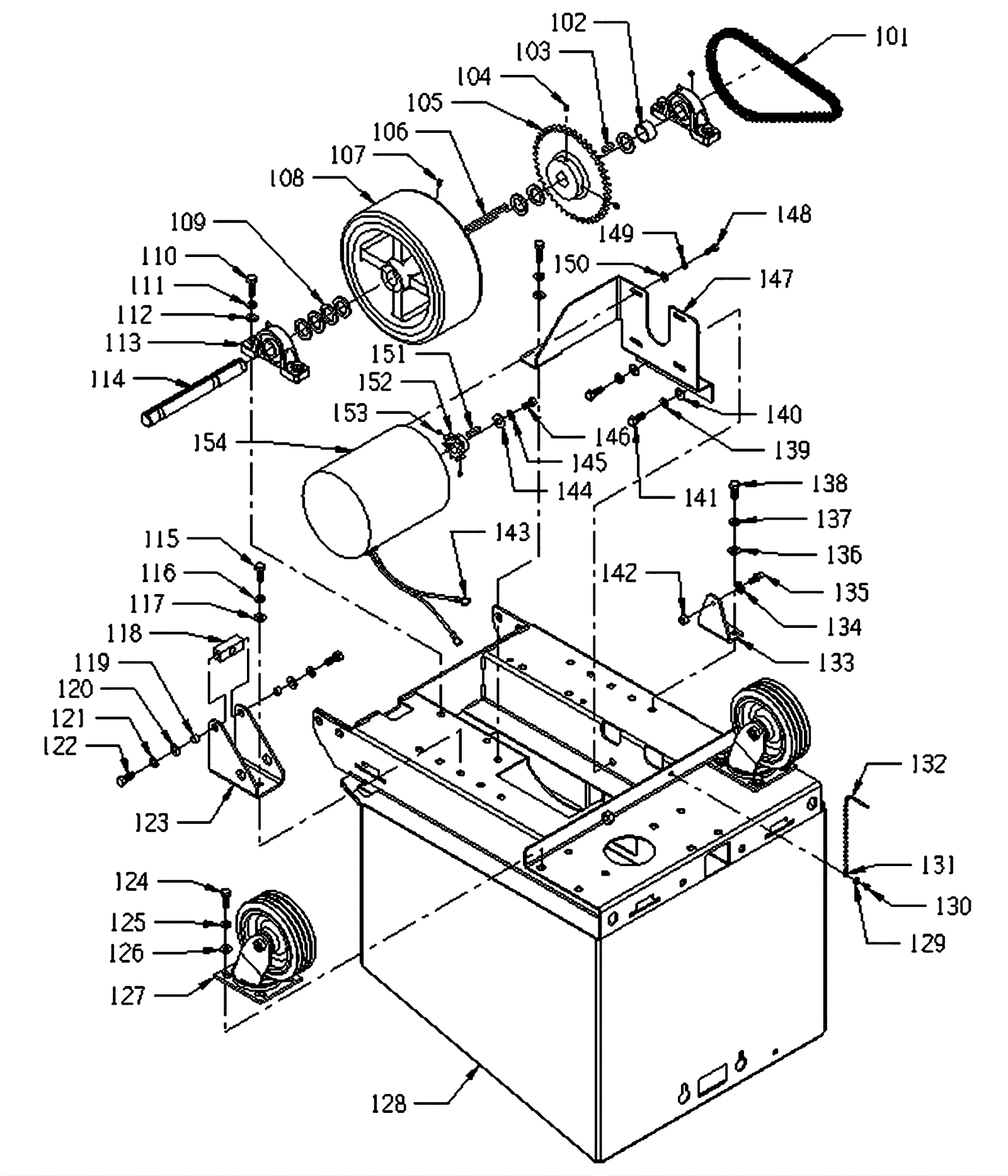

Chassis and Drive Assembly

#PartDescription ReqNotesAvailability
101a 991-0101 Chain (sold by the link) 1
101b 991-0101 Chain (sold by the link) 1
101c 991-0103 Master link 1
102 164-0171 Drive wheel spacer 1
103 164-0166 Square keyway 1
104 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish 2
105 164-1399 43 toothed driven sprocket 1
106 164-0167 Square keyway 1
107 999-0668 Screw 5/16-18 x 3/8 socket knurled point set plain finish 2
108 164-7303 10 inch rubber drive wheel 1
109 164-1015 Washer 1 x .13 thick flat 7
110 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 4
111 999-0034 Washer 3/8 split lock plain finish 4
112 164-0941 Washer 13/32 x 13/16 4
113 164-1018 Bearing 2
114 164-1398 Drive axle 1
115 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
116 999-0034 Washer 3/8 split lock plain finish 2
117 164-0941 Washer 13/32 x 13/16 2
118 164-7991 Pivot 1
119 164-0151 Spacer 2
120 164-0941 Washer 13/32 x 13/16 2
121 999-0034 Washer 3/8 split lock plain finish 2
122 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
123 164-0661 Axle pivot mount 1
124 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 8
125 999-0034 Washer 3/8 split lock plain finish 8
126 164-0941 Washer 13/32 x 13/16 8
127 991-2007 Swivel caster wheel assembly 2
128 164-0668 Chassis 1
129 999-0311 Washer #10 external star lock zinc plated 1
130 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
131 164-1502 End coupling 1
132 164-1503 8 inch round bead chain 1
133 164-0761 Spring mount 1
134 999-0105 Washer 5/16 external star lock zinc plated 1
135 164-7307 Stud 1
136 164-0941 Washer 13/32 x 13/16 2
137 999-0034 Washer 3/8 split lock plain finish 2
138 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
139 999-0034 Washer 3/8 split lock plain finish 2
140 164-0941 Washer 13/32 x 13/16 2
141 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
142 999-0069 Nut 5/16-18 hex 1
143 998-0001 1/4 spade male terminal 10-12 gauge 2
144 999-0024 Washer 5/16 flat stainless steel 1
145 999-0028 Washer 5/16 split lock plain finish 1
146 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 1
147 164-0773 Drive motor mount 1
148 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 4
149 999-0060 Washer 1/4 split lock plain finish 4
150 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
151 164-0132 Square keyway 1/4 x 1/4 1
152 164-0176 10 toothed sprocket with set screw 1
153 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish 2
154a 164-0172 36V drive motor 1 (OEM)
154b 991-5114 36V drive motor 1 (NON-OEM)
