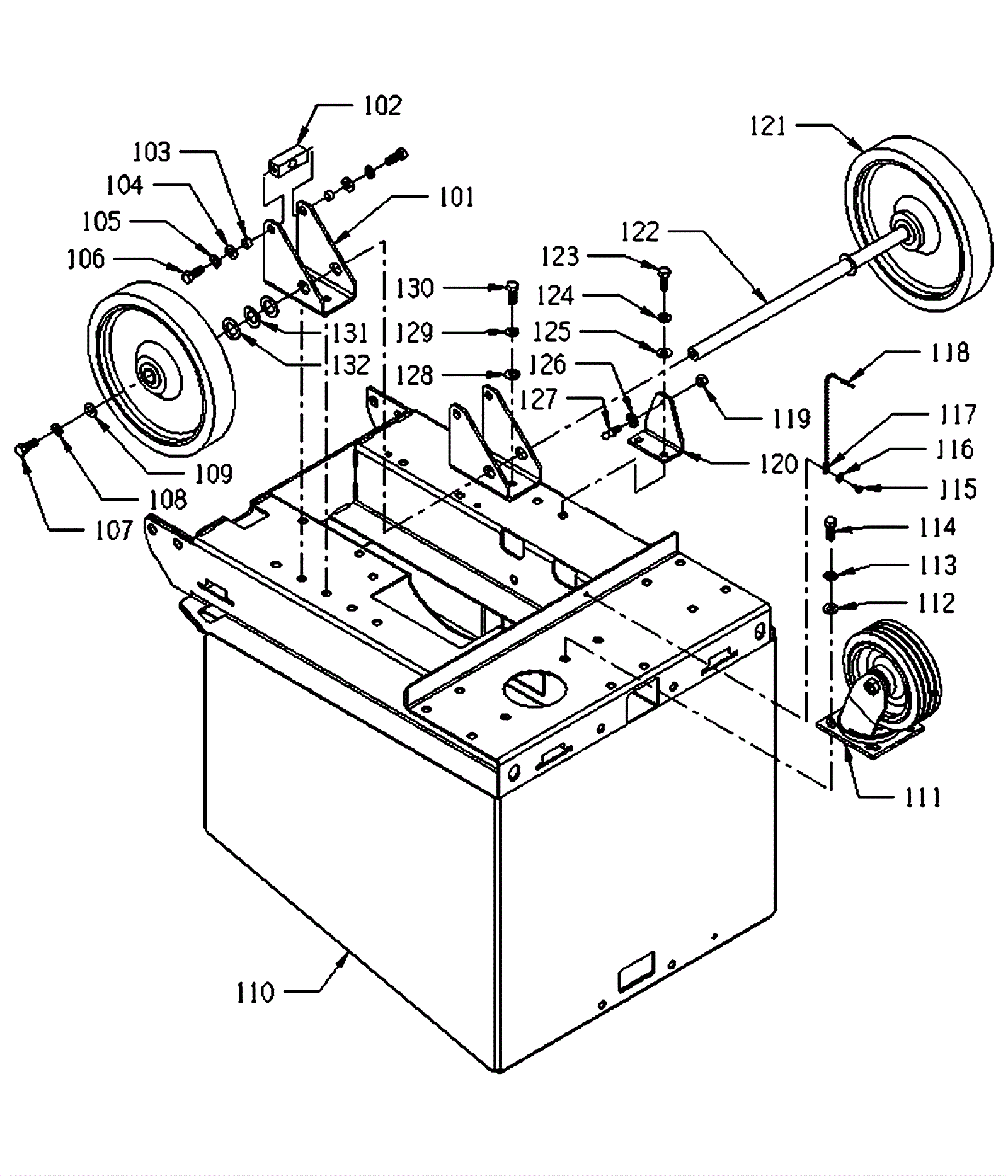

Chassis Assembly

#PartDescription ReqNotesAvailability
101 164-0661 Axle pivot mount 2
102 164-7991 Pivot 1
103 164-0151 Spacer 2
104 164-0941 Washer 13/32 x 13/16 2
105 999-0034 Washer 3/8 split lock plain finish 2
106 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
107 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
108 999-0034 Washer 3/8 split lock plain finish 2
109 999-0033 Washer 7/16 SAE flat 2
110 164-0668 Chassis 1
111 991-2007 Swivel caster wheel assembly 1
112 164-0941 Washer 13/32 x 13/16 4
113 999-0034 Washer 3/8 split lock plain finish 4
114 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
115 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
116 999-0311 Washer #10 external star lock zinc plated 1
117 164-1502 End coupling 1
118 164-1503 8 inch round bead chain 1
119 999-0069 Nut 5/16-18 hex 1
120 164-0761 Spring mount 1
121 164-0762 10 inch wheel (OBSOLETE) 2
122 164-0763 Axle 1
123 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
124 999-0034 Washer 3/8 split lock plain finish 2
125 164-0941 Washer 13/32 x 13/16 2
126 999-0105 Washer 5/16 external star lock zinc plated 1
127 164-7307 Stud 1
128 164-0941 Washer 13/32 x 13/16 2
129 999-0034 Washer 3/8 split lock plain finish 2
130 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
131 164-3117 Curved spring washer 1
132 999-0863 Washer 3/4 x 14 gauge narrow bushing 3
