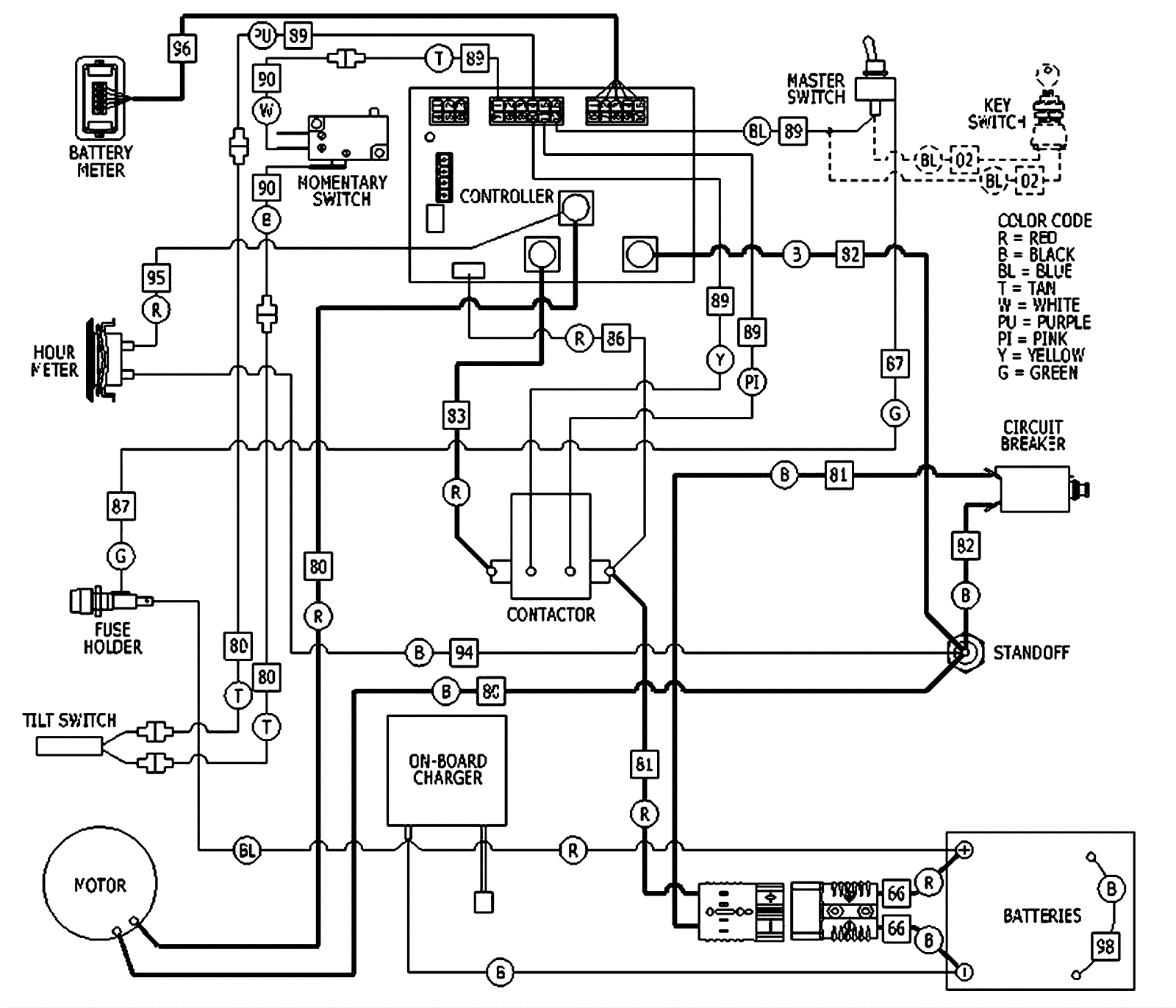

CHARGER 2022 ABLT Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
02 164-0676 Wiring assembly $5.50 1 usually ships 1-5 days
13 164-1451 Hour meter $114.59 1 usually ships 8-23 days
14 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
15 164-0892 24V solenoid contactor $82.40 1 ships same day
16 164-0023 Toggle switch $19.97 1 ships same day
17 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
18 998-0001 1/4 spade male terminal 10-12 gauge $0.99 2 ships same day
19 991-1615 90amp circuit breaker $145.41 1 ships same day
20 164-9178 24V 25amp onboard battery charger $1,236.86 1 usually ships 8-23 days
21 164-6477 Onboard charger extension cord $27.67 1 usually ships 8-23 days
23 164-6480 4amp fuse $21.82 1 ships same day
24 164-0681 24V 2HP brush motor $1,202.69 1 usually ships 8-23 days
25 164-0655 Controller $1,324.40 1 usually ships 8-23 days
26 164-7321 Tilt switch $66.72 1 usually ships 8-23 days
27 164-7325 Battery meter with harness, meter and 10 pin wire harness $205.08 1 usually ships 8-23 days
28 164-7326 Battery meter display $116.66 1 usually ships 1-5 days
30 164-7330 Key switch kit with wiring $42.19 1 (optional) usually ships 1-5 days
31 164-1660 Key switch and key $28.47 1 ships same day
33 164-8022 Momentary switch $12.01 1 usually ships 8-23 days
66 164-0706 Wiring assembly $83.99 1 usually ships 8-23 days
80 164-0707 Wiring harness $122.43 1 (brush motor) usually ships 1-5 days
81 164-0673 Wiring assembly $79.70 1 usually ships 1-5 days
82 164-0708 Wire $14.91 2 (breaker to standoff) usually ships 8-23 days
83 164-0709 Wire $12.87 1 (solenoid to controller) usually ships 1-5 days
86 164-0768 Wire $9.19 1 (solenoid to AB controller) usually ships 1-5 days
87 164-0718 Wire $2.51 1 (fuse holder to master switch) usually ships 1-5 days
89 164-0739 Wire $25.85 1 (controller) usually ships 1-5 days
90 164-0740 Wire $10.95 1 (brush switch) usually ships 1-5 days
94 164-0746 Wire $2.97 1 (hour meter to standoff) usually ships 1-5 days
95 164-0747 Wire $38.45 1 (speed controller to hour meter) usually ships 1-5 days
96 164-7327 10 pin wire harness for battery meter $148.89 1 usually ships 1-5 days
98a 998-0010 Battery jumper cable - ring type (red) $4.84 3 ships same day
98b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 3 (NON-OEM) usually ships 5-16 days
