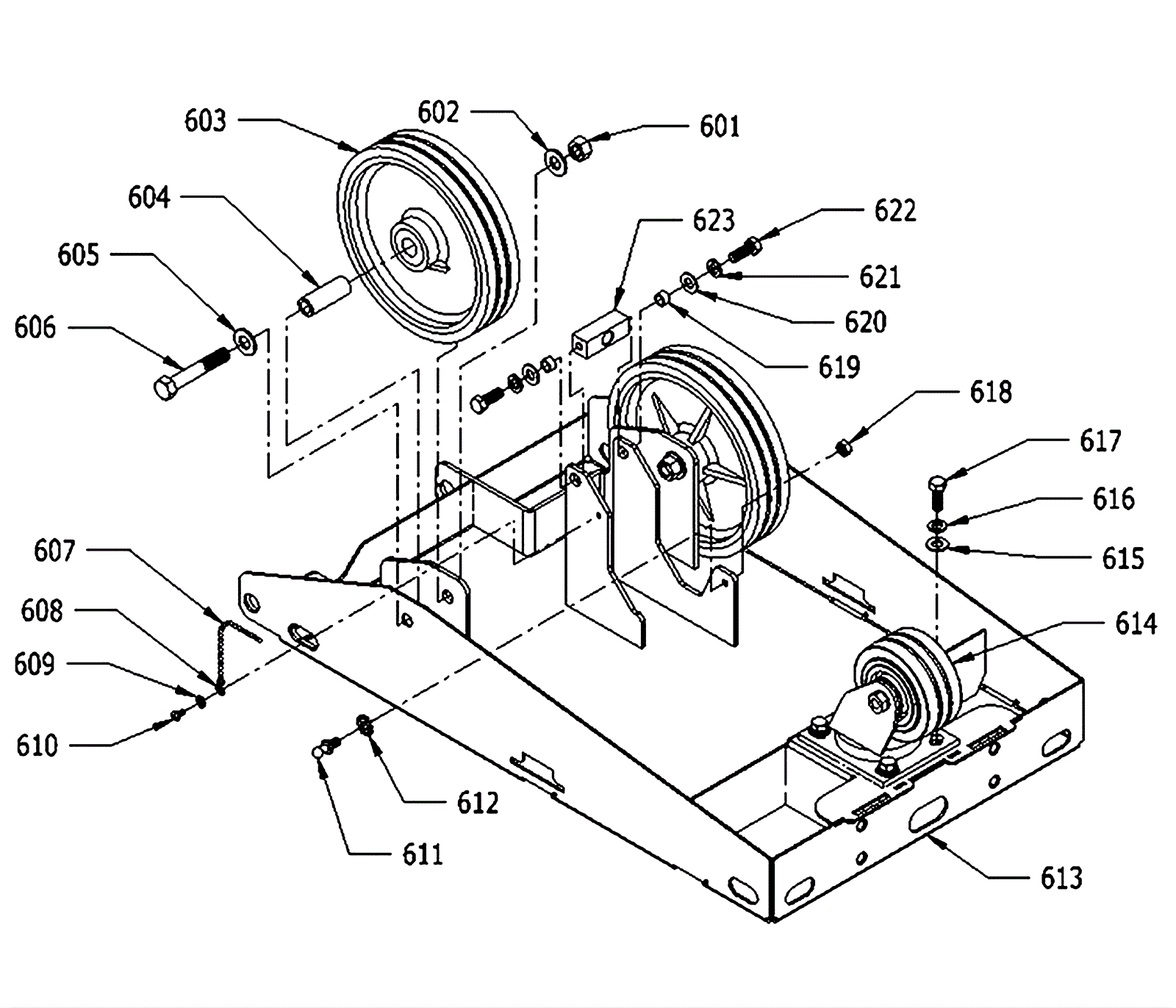

CHARGER 2022 ABLT Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
601 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 2 ships same day
602 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
603a 164-0029 8 inch wheel with bearings $327.82 2 ships same day
603b 991-9191 8"x1 5/8" RUBBER WHEEL W/3/4 BRGS $69.49 2 (NON-OEM) usually ships 13-17 days
604 164-0702 Axle $8.03 2 usually ships 1-5 days
605 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
606 999-0640 Bolt 1/2-13 x 3 18-8 hex head stainless steel $14.98 2 ships same day
607 164-1503 8 inch round bead chain $3.20 1 usually ships 1-5 days
608 164-1502 End coupling $2.70 1 usually ships 1-5 days
609 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
610 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel $0.99 1 ships same day
611 164-7307 Stud $4.95 1 usually ships 17-22 days
612 999-0105 Washer 5/16 external star lock zinc plated $0.99 1 ships same day
613 164-0694 Main frame $706.28 1 usually ships 1-5 days
614a 991-2006 Caster wheel assembly (red) $65.16 1 usually ships 6-7 days
614b 991-2008 4 inch caster wheel with bearings (red) $32.84 1 ships same day
615 164-0941 Washer 13/32 x 13/16 $7.38 4 ships same day
616 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
617 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
618 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
619 164-0151 Spacer $3.85 2 usually ships 17-22 days
620 164-0941 Washer 13/32 x 13/16 $7.38 2 ships same day
621 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
622 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
623 164-7991 Pivot $35.77 1 usually ships 17-22 days
