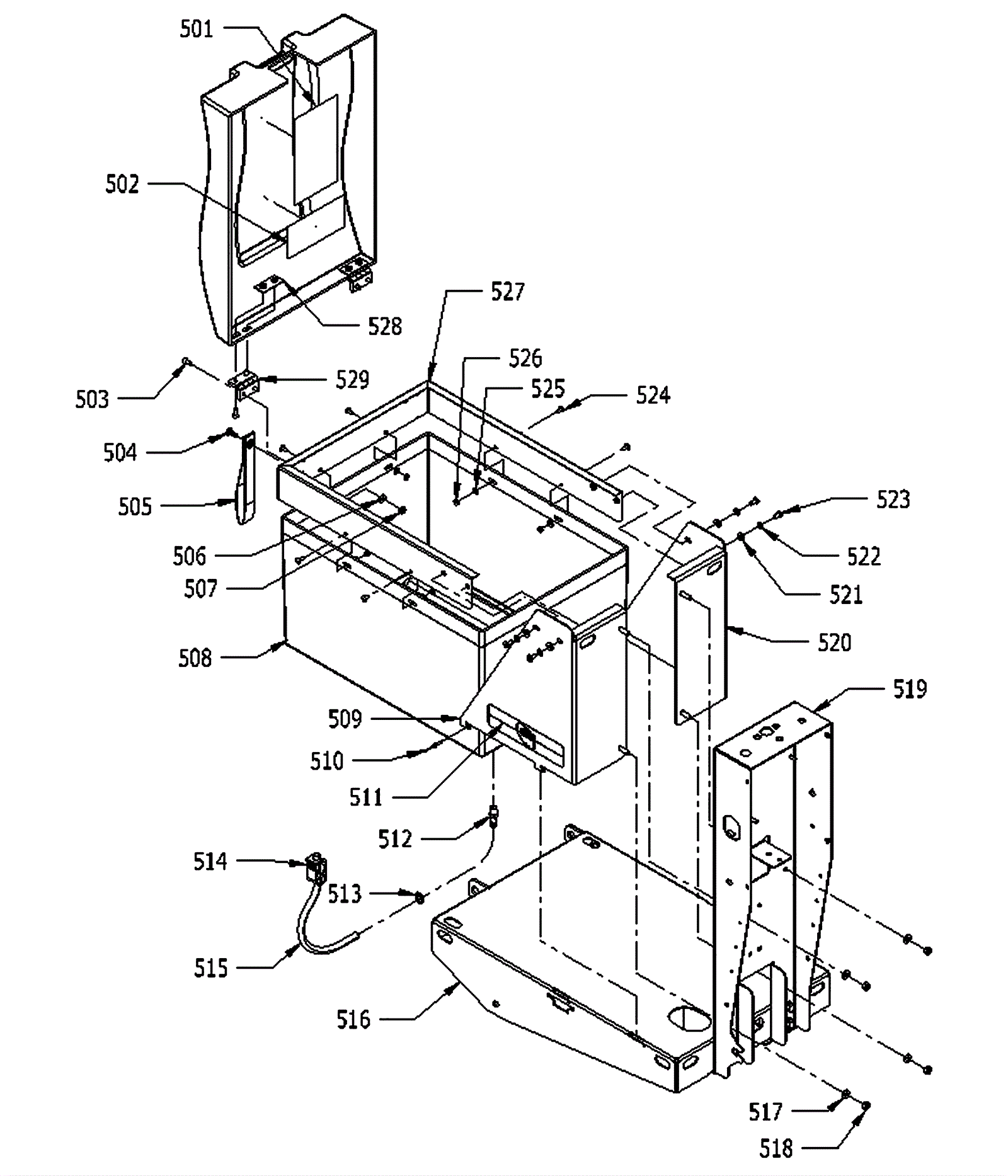

CHARGER 2022 ABLT Lid and Side Assembly

#PartDescriptionPriceReqNotesAvailability
501 164-0665 Decal $15.02 1 (battery connection) usually ships 1-5 days
502 164-0666 Warning decal $10.51 1 usually ships 1-5 days
503 999-0692 Screw 1/4-20 x 7/8 flat head phillips zinc plated $0.99 8 ships same day
504 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 1 ships same day
505 164-0669 Retaining strap $16.45 1 usually ships 1-5 days
506 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
507 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
508 164-8183 Body and lid $262.74 1 usually ships 8-23 days
509 164-0692 Left side support panel $80.91 1 usually ships 1-5 days
510 164-0693 Pop rivet 1/8 x 1/2 dome head $5.89 4 usually ships 1-5 days
511 164-3903 Front decal (OBSOLETE) $9.19 2 usually ships 1-5 days
512 164-2522 1/4NPT x 3/8 straight fitting $2.59 1 ships same day
513 997-2001 Hose clamp $2.42 1 ships same day
514 164-0398 Control valve (white clamp) $15.87 1 usually ships 8-23 days
515 991-1401 Clear vinyl tubing (sold by the inch) $0.55 2 in usually ships 17-33 days
516 164-0694 Main frame $566.34 1 usually ships 1-5 days
517 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
518 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
519 164-0674 Control panel $207.96 1 usually ships 1-5 days
520 164-0695 Right side support panel $80.91 1 usually ships 1-5 days
521 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
522 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
523 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 4 ships same day
524 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 6 ships same day
525 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
526 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
527 164-0696 Battery box and lid support $103.62 1 usually ships 1-5 days
528 164-8184 Hinge mounting plate $9.79 2 usually ships 1-5 days
529 164-0701 Lid hinge $21.51 2 usually ships 8-23 days
