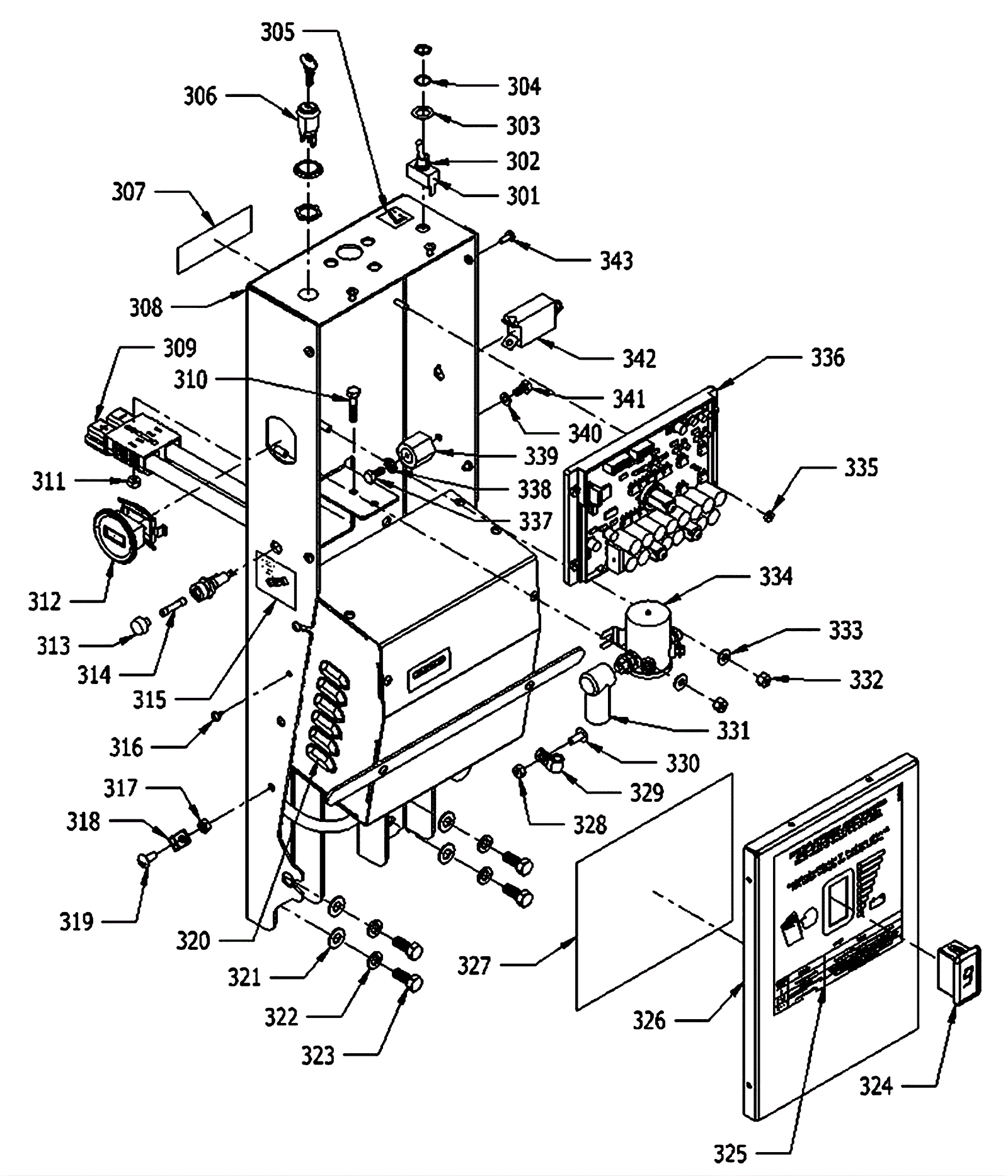

CHARGER 2022 ABLT Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
301 164-0023 Toggle switch $19.97 1 ships same day
302 999-0186 Nut 5/8-11 nylon insert lock zinc plated $1.12 1 ships same day
303 164-0289 Washer flat stainless steel $5.89 1 usually ships 8-23 days
304 999-0260 Washer 1/2 internal starlock $0.99 1 ships same day
305 164-0678 Master switch decal $8.80 1 usually ships 1-5 days
306a 164-7330 Key switch kit with wiring $42.19 1 usually ships 1-5 days
306b 164-0676 Wiring assembly $5.50 1 usually ships 1-5 days
306c 164-0676 Wiring assembly $5.50 1 (key switch) usually ships 1-5 days
307 164-0675 Decal kit $39.16 1 usually ships 8-23 days
308 164-0674 Control panel $207.96 1 usually ships 1-5 days
309 164-0673 Wiring assembly $79.70 1 usually ships 1-5 days
310 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
311 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
312 164-1451 Hour meter $114.59 1 usually ships 8-23 days
313 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
314 164-6480 4amp fuse $21.82 1 ships same day
315 164-3308 Fuse decal $5.50 1 usually ships 1-5 days
316 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.99 4 ships same day
317 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
318 164-9118 P clamp $11.99 1 usually ships 11-24 days
319 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
320a 164-9178 24V 25amp onboard battery charger $1,236.86 1 usually ships 8-23 days
320b 164-6477 Onboard charger extension cord $27.67 1 usually ships 8-23 days
321 164-0941 Washer 13/32 x 13/16 $5.89 4 ships same day
322 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
323 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
324a 164-7325 Battery meter with harness, meter and 10 pin wire harness $205.08 1 usually ships 8-23 days
324b 164-7326 Battery meter display $116.66 1 usually ships 1-5 days
324c 164-7327 10 pin wire harness for battery meter $148.89 1 usually ships 1-5 days
325 164-0652 Battery meter decal $27.83 1 usually ships 1-5 days
326 164-0653 Control panel cover $38.72 1 usually ships 1-5 days
327 164-0654 Decal $14.25 1 (wiring diagram) usually ships 1-5 days
328 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
329 164-3243 P clamp $3.96 1 usually ships 1-5 days
330 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
331 164-9052 Terminal boot (red) $7.43 1 usually ships 1-5 days
332 164-6796 Nut 1/4-20 hex thin with nylok insert $6.34 2 usually ships 8-23 days
333 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
334 164-0892 24V solenoid contactor $82.40 1 ships same day
335 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 4 ships same day
336a 164-0655 Controller $1,324.40 1 usually ships 8-23 days
336b 999-0017 Washer 1/4 external star lock $0.99 3 ships same day
336c 164-0656 Screw 1/4-28 x 3/8 pan head phillips $5.28 3 usually ships 1-5 days
337 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
338 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
339 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
340 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
341 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
342 991-1615 90amp circuit breaker $145.41 1 ships same day
343 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 6 ships same day
