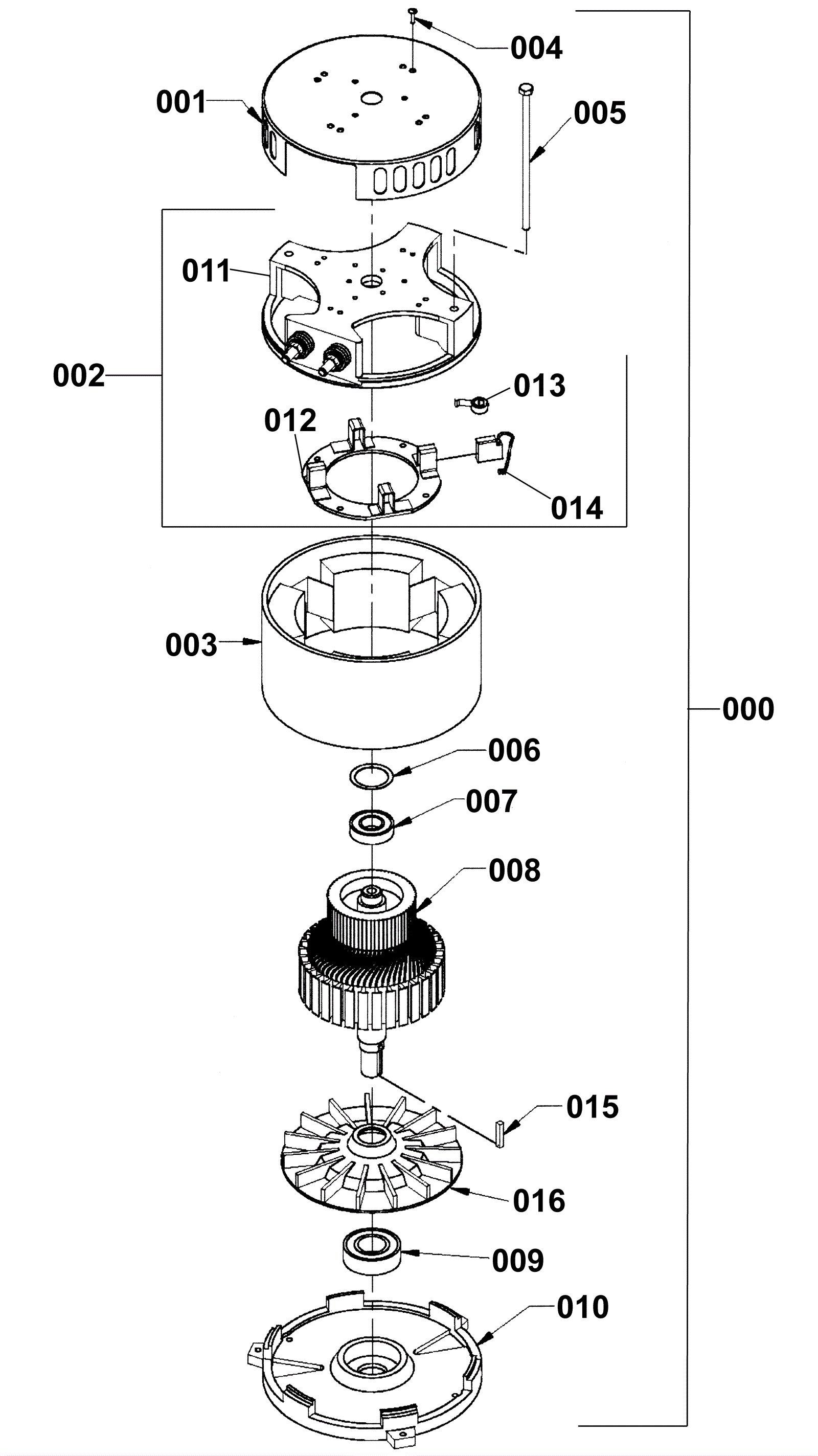

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
164-7916
|
Motor 36v |
1 |
|
|
001 |
164-7922
|
Commutator bracket cover |
1 |
|
|
002 |
164-7923
|
Commutator bracket assembly |
1 |
includes 011-014 |
|
003 |
164-7925
|
Stator frame assembly with clips and magnets |
1 |
|
|
004 |
999-0572
|
Screw 10-24 x 1/2 pan head self-tapping zinc |
4 |
|
|
005 |
164-7926
|
Thru bolt |
2 |
|
|
006 |
164-5310
|
Washer helical |
1 |
|
|
007 |
164-5291
|
Top end bearing |
1 |
|
|
008 |
164-7927
|
Armature |
1 |
includes 015 and 016 |
|
009 |
164-5290
|
Bottom bearing |
1 |
|
|
010 |
164-6408
|
Bearing bracket |
1 |
|
|
011 |
164-7924
|
Commutator bracket |
1 |
|
|
012 |
164-6413
|
Brush board assembly |
1 |
include 013 and 014 |
|
013 |
164-6412
|
Spring |
2 |
|
|
014 |
164-1560
|
Carbon brush (sold individually) |
2 |
|
|
015 |
164-1326
|
Square keyway |
1 |
|
|
016 |
164-6410
|
Aluminum fan |
1 |
|
|
