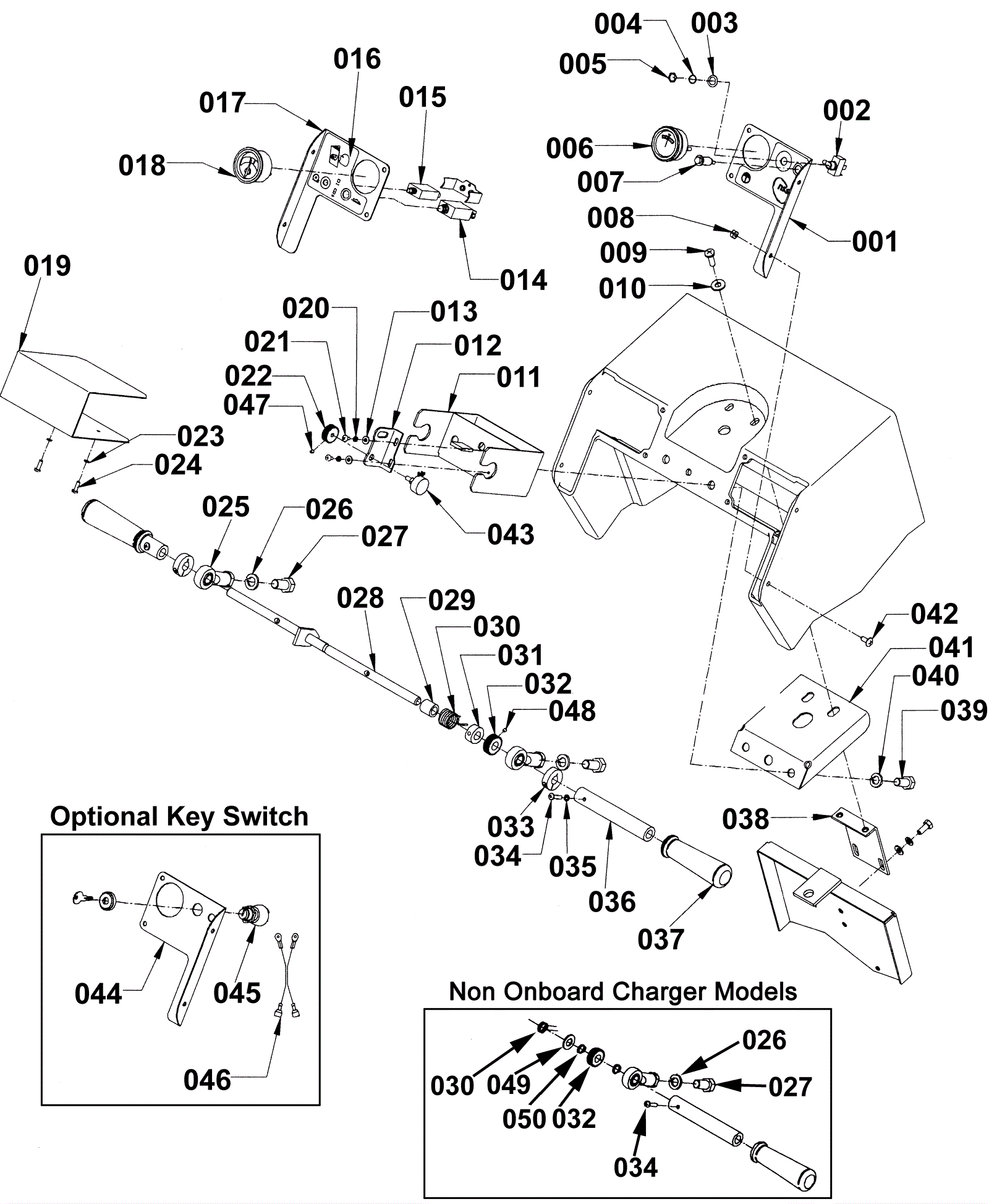

CHARGER 2025DB Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 164-6432 RIght-control panel (OBSOLETE) $52.17 1 usually ships 1-5 days
002 164-0023 Toggle switch $19.97 1 usually ships 18-33 days
003 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
004 999-0260 Washer 1/2 internal starlock $0.99 1 ships same day
005 999-0186 Nut 5/8-11 nylon insert lock zinc plated $1.12 1 ships same day
006 164-0024 RPM meter $128.54 1 usually ships 1-5 days
007 164-0283 Indicator light with clip (green) $22.50 1 usually ships 18-33 days
008 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
009 999-0655 Screw 5/16-18 x 1 round head slotted zinc plated $0.99 2 ships same day
010 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
011 164-6419 Handle box $95.43 1 usually ships 1-5 days
012 164-6422 Potentiometer mounting bracket $19.14 1 usually ships 1-5 days
013a 999-0998 Washer #10 flat stainless steel $0.99 2 (onboard charger models) ships same day
013b 999-0006 Washer 3/16 flat zinc plated $0.99 2 (non onboard charger models) ships same day
014a 991-1614 70amp circuit breaker $155.38 1 (machines with 2HP motor) usually ships 8-9 days
014b 991-1615 90amp circuit breaker $145.41 1 (machines with 3HP motor) ships same day
015 991-1621 10amp circuit breaker $70.43 1 ships same day
016 164-6434 Control panel decal kit (OBSOLETE) $11.44 1 usually ships 1-5 days
017 164-6433 Left-control panel (OBSOLETE) $52.17 1 usually ships 1-5 days
018 164-0022 Battery meter $120.95 1 usually ships 1-5 days
019 164-6420 Handle box cover $48.35 1 usually ships 1-5 days
020 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
021 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 2 ships same day
022 164-0293 Drive gear $55.99 1 (includes 047) usually ships 18-33 days
023 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
024 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 2 ships same day
025 164-0238 Ball joint $50.71 2 ships same day
026 999-0126 Washer 1/2 split lock $1.28 2 ships same day
027 999-0115 Bolt 1/2-13 x 1 hex head grade 5 $1.43 2 ships same day
028 164-6418 Handle bar $125.18 1 usually ships 18-33 days
029 164-9142 Sleeved bearing $5.28 1 (onboard charger models) usually ships 18-33 days
030 164-1329 Torsion spring $5.50 1 usually ships 18-33 days
031 164-9119 1/2 inch shaft collar $3.43 1 (onboard charger models) usually ships 18-33 days
032 164-0300 Drive gear $55.99 1 (includes 048) usually ships 18-33 days
033 164-9120 1/2 inch shaft collar $9.32 2 (onboard charger models) usually ships 18-33 days
034 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated $0.99 2 ships same day
035 999-0150 Washer #8 medium split lock $0.99 2 (onboard charger models) ships same day
036 164-0303 Handle grip base $27.06 2 usually ships 18-33 days
037a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
037b 991-8571 Handle grip $3.77 2 (NON-OEM) ships same day
038 164-3027 Top support bracket (OBSOLETE) $25.41 1 usually ships 1-5 days
039 999-0661 Bolt 1/2-20 x 1 18-8 hex head stainless steel $3.96 2 ships same day
040 999-0126 Washer 1/2 split lock $1.28 2 ships same day
041 164-6421 Handle box mounting plate (OBSOLETE) $54.75 1 usually ships 1-5 days
042 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 8 ships same day
043 172-2039 5K potentiometer $63.07 1 ships same day
044 164-6431 Key switch control panel-right (OBSOLETE) $31.24 1 usually ships 1-5 days
045a 164-1660 Key switch and key $28.47 1 ships same day
045b 164-1661 Key (pkg of 2) $24.02 1 usually ships 18-33 days
046 164-6465 Wire assembly key switch adapter $6.60 1 (onboard charger models) usually ships 1-5 days
047 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish $0.99 2 ships same day
048 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish $0.99 2 ships same day
049 999-0114 Washer 1/2 SAE flat $0.99 1 (non onboard charger models) ships same day
050 164-0106 Retaining ring $2.96 1 (non onboard charger models) ships same day
