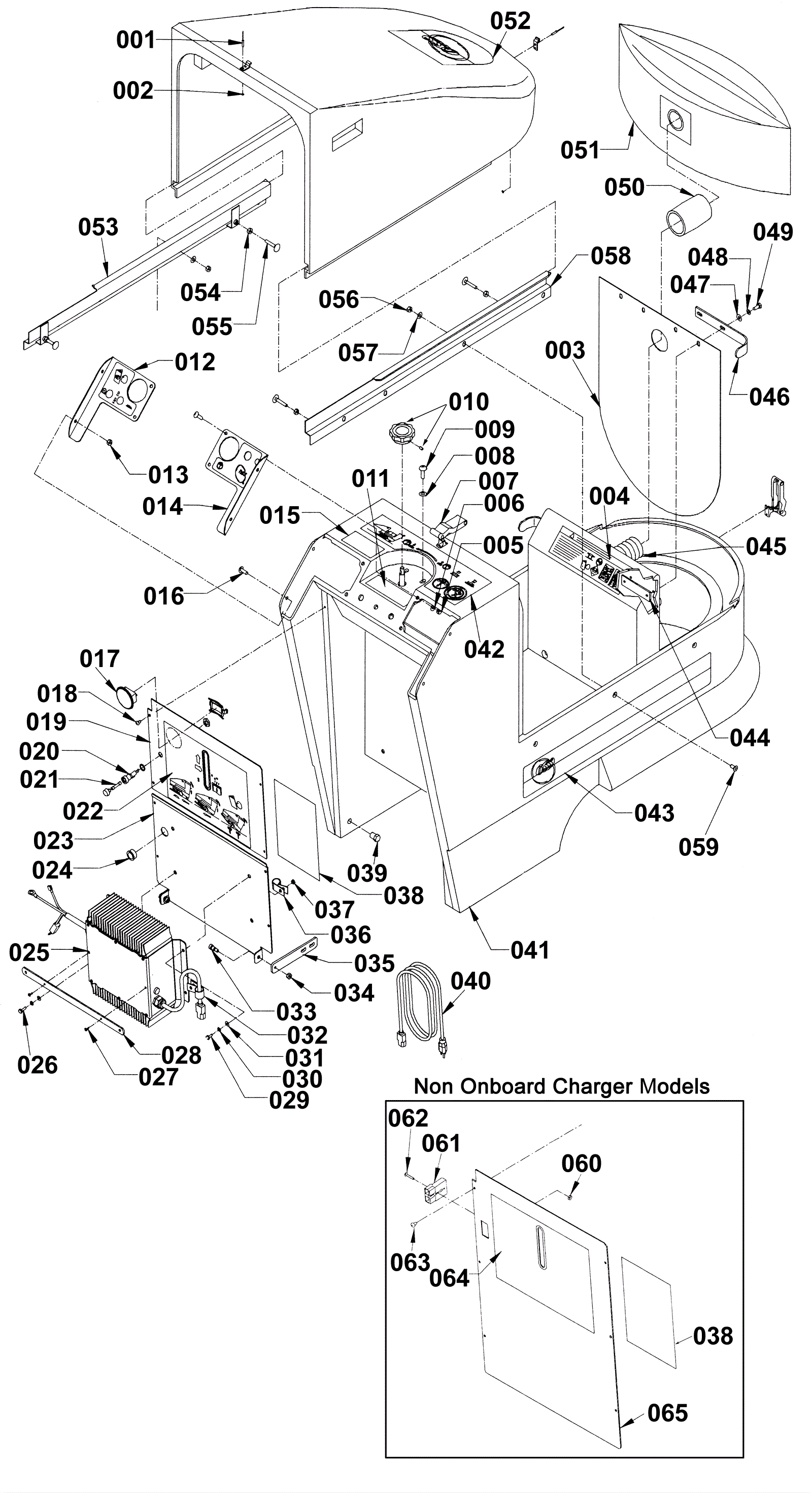

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
164-6784
|
Pop rivet |
8 |
|
|
002 |
164-6785
|
Washer 5/32 x 1/2 steel zinc plated |
8 |
|
|
003 |
164-6373
|
Rubber motor cover (OBSOLETE) |
1 |
|
|
004 |
164-6443
|
Battery warning decal (OBSOLETE) |
1 |
|
|
005 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
006 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
007 |
164-6302
|
Latch with keeper |
2 |
|
|
008 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
009a |
999-0655
|
Screw 5/16-18 x 1 round head slotted zinc plated |
2 |
(onboard charger models) |
|
009b |
999-0622
|
Screw 5/16-18 x 1 1/2 socket head shoulder |
2 |
(non onboard charger models) |
|
010a |
164-3025
|
Knob |
1 |
|
|
010b |
164-6808
|
Screw 10 x 3/4 set cup |
1 |
|
|
011 |
164-6434
|
Control panel decal kit (OBSOLETE) |
1 |
|
|
012 |
164-6433
|
Left-control panel (OBSOLETE) |
1 |
|
|
013 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
014 |
164-6432
|
RIght-control panel (OBSOLETE) |
1 |
|
|
015 |
164-6402
|
Identifier decal-charger 2025DB (OBSOLETE) |
1 |
(onboard charger models) |
|
016 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
4 |
|
|
017 |
164-1451
|
Hour meter |
1 |
(onboard charger models) (optional) |
|
018 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
8 |
(onboard charger models) |
|
019 |
164-7918
|
Upper rear panel |
1 |
(onboard charger models) |
|
020 |
164-1328
|
Fuse holder with nut and washer |
1 |
(onboard charger models) |
|
021 |
164-6480
|
4amp fuse |
1 |
(onboard charger models) |
|
022 |
164-6435
|
Rear panel decal (OBSOLETE) |
1 |
(onboard charger models) |
|
023 |
164-7919
|
Lower rear panel |
1 |
(onboard charger models) |
|
024 |
164-1673
|
Snap bushing |
1 |
(onboard charger models) |
|
025a |
164-6476
|
36V onboard battery charger (OBSOLETE) |
1 |
(Delta Q) (onboard charger models) |
|
025b |
162-9027
|
36V 25amp onboard battery charger (Dual Pro) (AGM/wet) |
1 |
(Dual Pro) (Does not include green wire. Open the control panel and in the main harness bundle (running up from the trio to the LCD/switches) there should be a black wire taped up (it may be tagged remote/off board charger only). Release that wire and run it up to the E-Stop and attach it into the terminal where the green wire is connected.) |
|
026 |
999-1382
|
Screw 1/4-20 x 1 truss head phillips |
1 |
(onboard charger models) |
|
027 |
164-9112
|
Screw M3-.5 x 19mm pan head phillips (pkg of 5) |
2 |
(onboard charger models) |
|
028 |
164-9113
|
Cord wrap |
1 |
(onboard charger models) |
|
029 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
3 |
(onboard charger models) |
|
030 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
(onboard charger models) |
|
031 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
(onboard charger models) |
|
032 |
164-3243
|
P clamp |
1 |
(onboard charger models) |
|
033 |
164-1171
|
Bolt 5/16 x 3/8 socket head shoulder |
2 |
(onboard charger models) |
|
034 |
164-6796
|
Nut 1/4-20 hex thin with nylok insert |
2 |
(onboard charger models) |
|
035 |
164-7910
|
Hinge plate (OBSOLETE) |
2 |
(onboard charger models) |
|
036 |
164-9118
|
P clamp |
1 |
(onboard charger models) |
|
037 |
999-0015
|
Nut 1/4-20 k-lock zinc plated |
1 |
(onboard charger models) |
|
038a |
164-6481
|
Wiring decal (OBSOLETE) |
1 |
(onboard charger models) |
|
038b |
164-6436
|
Wiring diagram decal (OBSOLETE) |
1 |
(non onboard charger models) |
|
039 |
164-6294
|
Plug (OBSOLETE) |
2 |
|
|
040 |
164-6477
|
Onboard charger extension cord |
1 |
|
|
041a |
164-6424
|
Housing-charger 2025 DB with rails |
1 |
|
|
041b |
164-6296
|
Housing rest-2 pieces , 4 inch velcro loop |
1 |
|
|
042 |
164-6821
|
English/Spanish operation decal (OBSOLETE) |
1 |
|
|
043 |
164-6399
|
3330 side decal set (OBSOLETE) |
2 |
|
|
044 |
164-6306
|
Tapping plate (OBSOLETE) |
2 |
|
|
045 |
164-1418
|
Vacuum exhaust hose |
1 |
|
|
046 |
164-6303
|
Support bracket (OBSOLETE) |
2 |
|
|
047 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
048 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
049 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
4 |
|
|
050 |
164-3049
|
2 inch cuff |
1 |
|
|
051a |
164-0032
|
Paper bag (pkg of 5) |
1 |
|
|
051b |
164-3111
|
Cloth vacuum bag |
1 |
|
|
052 |
164-6388
|
Hood decal (OBSOLETE) |
1 |
|
|
053 |
164-6456
|
Left slide rail |
1 |
|
|
054 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
055 |
999-1380
|
Bolt 1/4-20 x 1 1/2 elevator zinc |
4 |
|
|
056 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
6 |
|
|
057 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
058 |
164-6788
|
Threaded stud 1/4-20 x 2 1/2 (OBSOLETE) |
2 |
|
|
059 |
999-0419
|
Screw 1/4-20 x 5/8 flat head slotted zinc plated |
6 |
|
|
060 |
999-0195
|
Nut 6-32 hex plain |
2 |
(non onboard charger models) |
|
061 |
991-2105
|
SB50 50amp charger plug with pins (gray) |
1 |
(non onboard charger models) |
|
061a |
991-2105
|
SB50 50amp charger plug with pins (gray) |
1 |
(non onboard charger models) |
|
061b |
164-6288
|
Wire assembly (OBSOLETE) |
1 |
(non onboard charger models) |
|
062 |
999-0656
|
Screw #6-32 x 7/8 pan head phillips zinc plated |
2 |
(non onboard charger models) |
|
063 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
8 |
(non onboard charger models) |
|
064 |
164-6435
|
Rear panel decal (OBSOLETE) |
1 |
(non onboard charger models) |
|
065 |
164-6459
|
Rear cover panel (OBSOLETE) |
1 |
(non onboard charger models) |
|
N/S |
164-6455
|
Right slide rail |
1 |
|
|
